EN - 29
Remove Mower Drive Belt
1. Remove PTO belt. See Remove PTO
Belt on page 28.
See Figure 41.
2. Slowly remove spring hook from anchor
bolt to release tension from belt idler.
3. Remove mower drive belt.
Install Mower Drive Belt
See Figure 42.
1. Install mower drive belt around bottom
groove of split pulley at deck center and
around bottom groove of right spindle
pulley.
2. Reinstall idler spring hook around anchor
bolt to apply tension to belt.
IMPORTANT: Make sure belt has tension and
is aligned in all pulleys.
Install PTO Belt
IMPORTANT: Mower drive belt MUST be
installed before PTO belt.
1. Install PTO belt around clutch sheave at
rear of unit.
See Figure 43.
2. Install PTO belt around top groove of split
pulley at deck center and around left
spindle pulley.
3. Align belt with idler pulleys.
4. Reinstall idler spring hook around anchor
bolt to apply tension to belt.
CAUTION: Use care when re-
leasing idler spring tension. Keep
body parts away from idlers
when performing this operation.

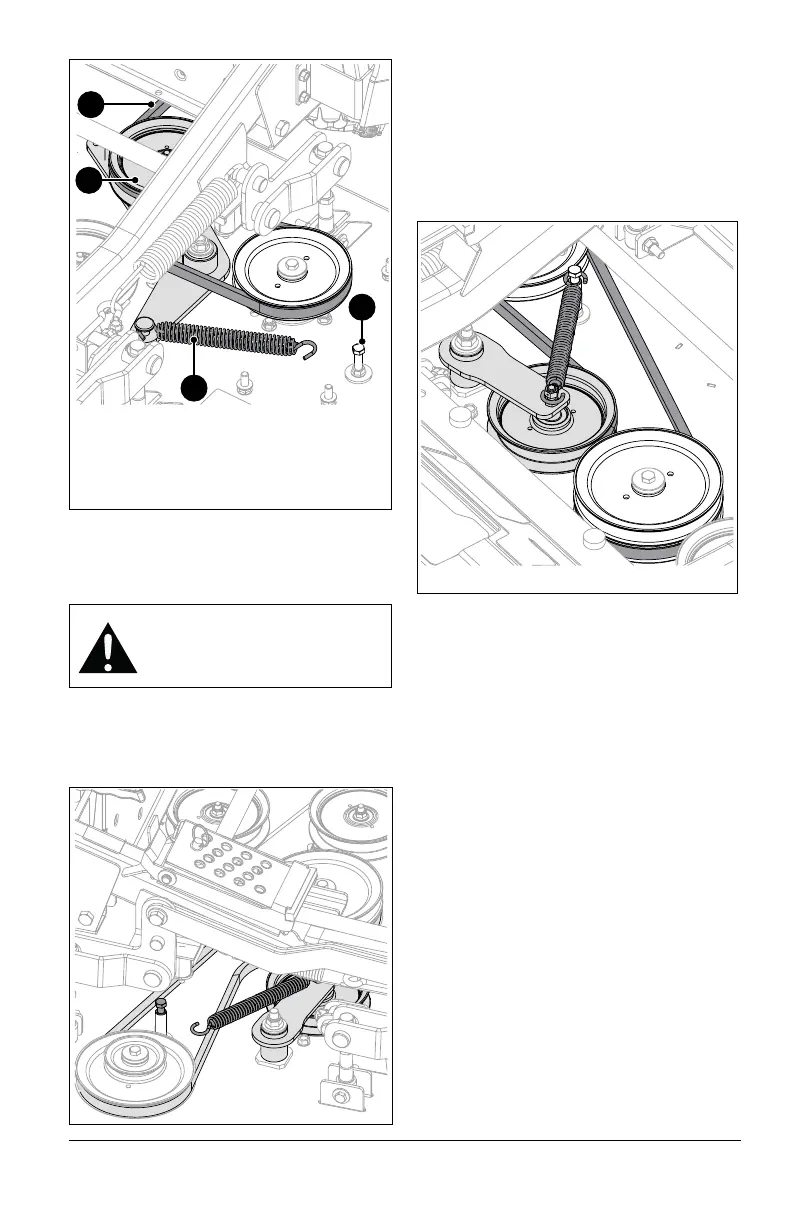

1. Spring
2. Anchor Bolt
3. PTO Belt
4. PTO Belt Idler
1
4
3
2
Figure 40
