EN - 33

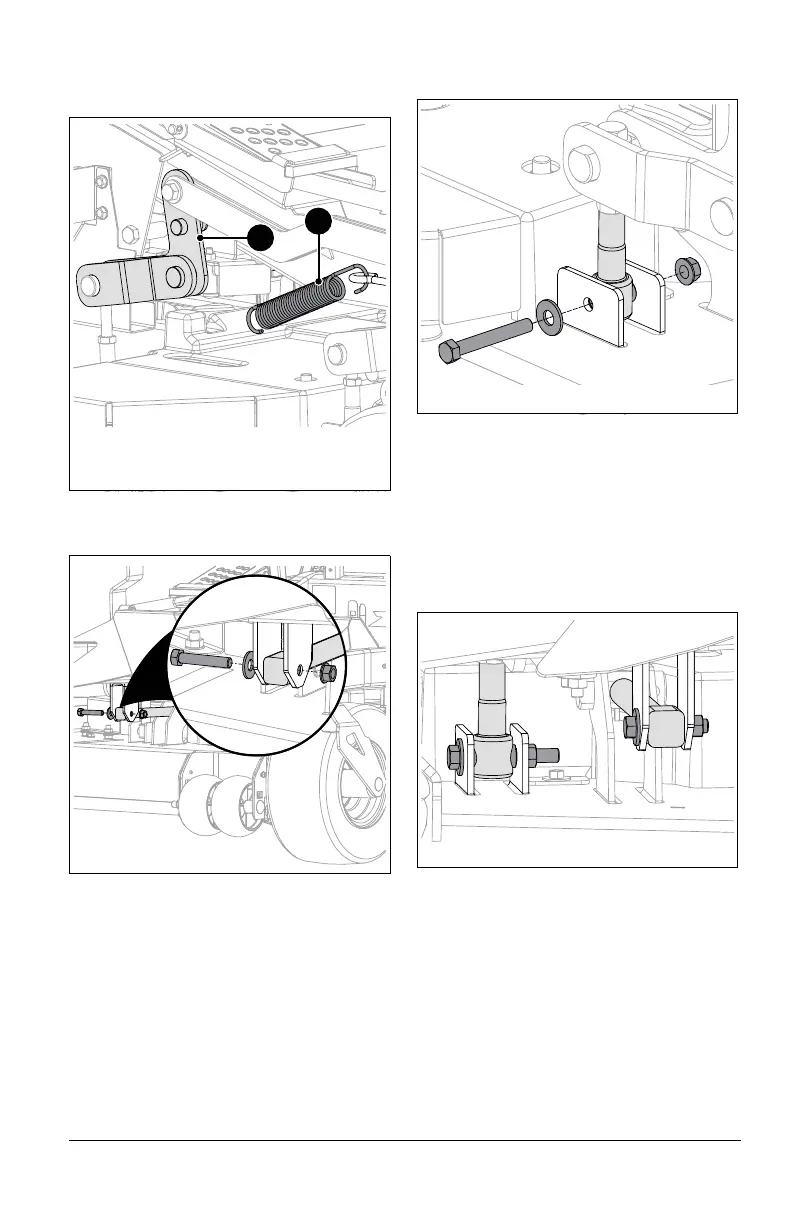

5. Slowly disconnect lift-assist springs from
spring peg on each side of deck. See
Figure 53.
3. Remove hardware retaining drag links to
frame. See Figure 54.
4. Remove hardware retaining deck lift links
to deck lift brackets. See Figure 55.
5. Remove deck from under unit.
Install Deck
1. Position deck under unit.
See Figure 56.
2. Reinstall drag links to frame with original
hardware.
3. Secure deck lift links to deck lift brackets
with original hardware.
4. Reinstall PTO belt. See Install PTO Belt
on page 29.
5. Reconnect lift-assist springs to spring
pegs.
6. Level the deck. See Level and Pitch
Mower Deck on page 34.
1. Lift-Assist Spring
2. Spring Peg
1
2
Figure 53
Figure 54
Figure 55
Figure 56
