arietta PRO001MX 30 - Packaging Contents; Recirculating Kit Preparation; Cabinet or Ceiling Preparation

WARNING:
• Read and Save These Instructions.
• Approved for Residential Appliances only.
• PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING.
• INSTALLER: Please leave these Instructions with this unit for the owner.
• OWNER: Please retain these instructions for future reference.
• Turn off power circuit at service panel and lock out panel before installing this kit to the appliance.
• Installation must comply with all local codes.

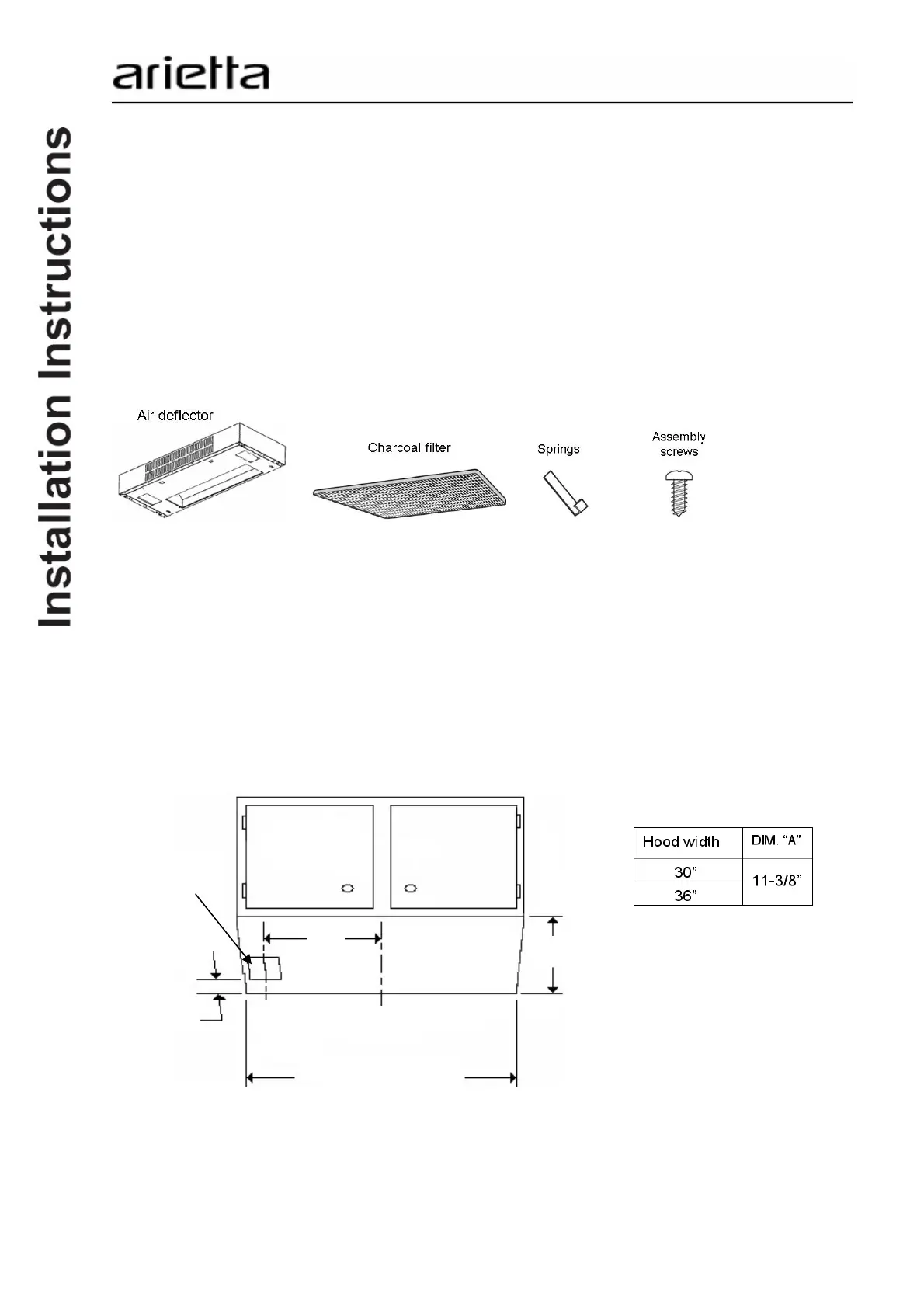

PACKAGING CONTENTS
• Air deflector
• 3 Charcoal Filters
• 12 springs
• Mounting hardware
BEFORE INSTALLING THE RECIRCULATING KIT
The recirculation kit installation affects the hood installation, so take in consideration the following steps.
Cabinet or ceiling preparation when installing the recirculation kit
For cabinet or ceiling preparation take in consideration that there is no need to provide cutouts on walls for
vertical or rear air discharge, since there is no need to install any duct work. See the figure 1 for conduit
passage cut-out. See figure 2 for air passage cut-out on hood.
Cabinet
front
3-1/8” x 2-1/3”
Cut out for
conduit
passage
A
Bottom of
cabinet or
soffit
12” min
27/32”
Real
wall
Center
line
Hood width min.
Figure 1. Conduit Passage Cutout
Note: The height of the hood with the recirculation kit installed, increases from 18" to 22“. Check that
there is enough clearance and that minimum height from the countertop to the bottom of the hood is
24” minimum for electric ranges to 30” minimum for gas ranges.
