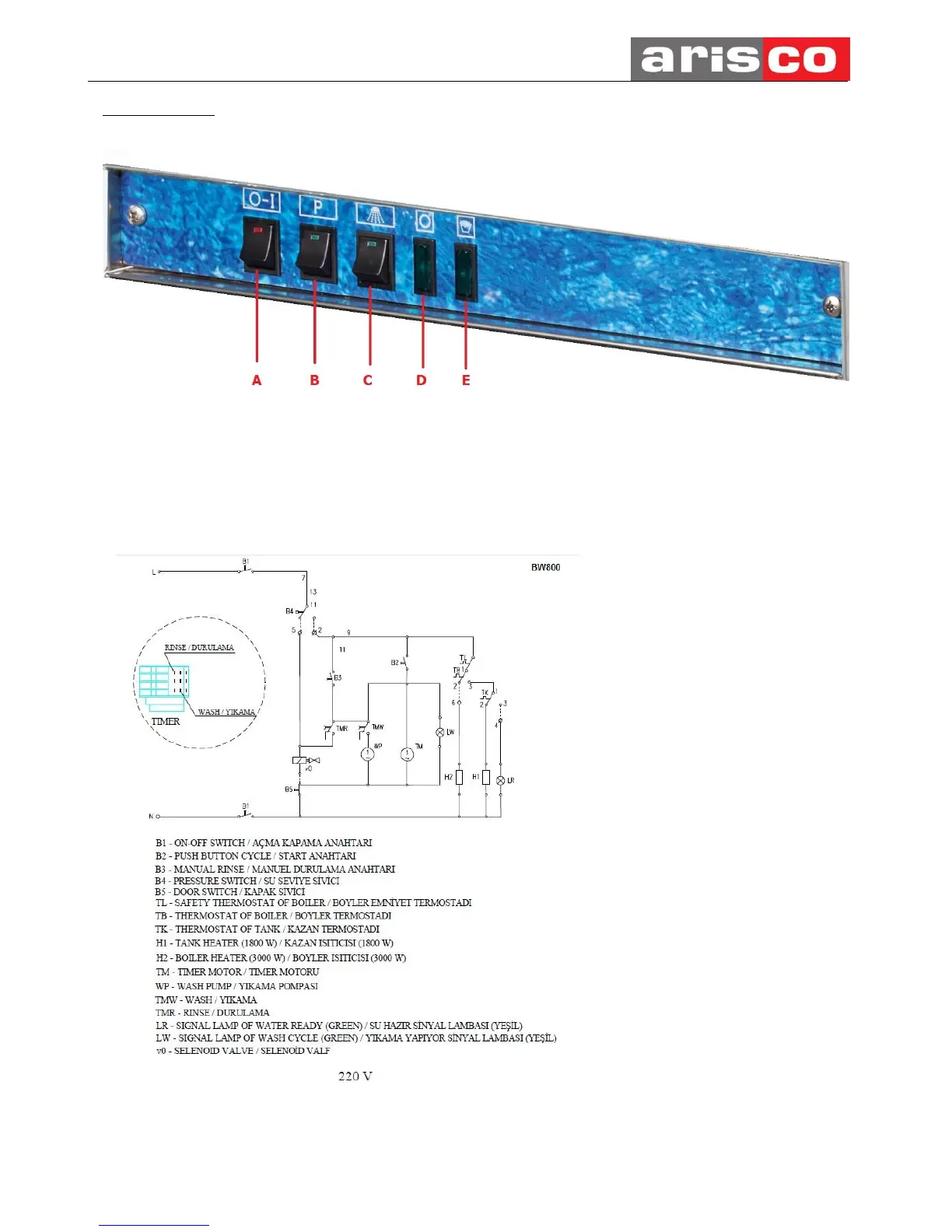

CONTROL PANEL
Full automatic washing cycle at 55 C with a choice of three different programs from 1 to 2 minutes.
A- MAIN SWITCH (0-1) B- CYCLE START PUSH BUTTON C- MANUAL RINSE PUSH BUTTON
D- WATER TEMPARATURE INDICATORY LAMP E- WASH CYCLE INDICATORY LAMP
11. ELECTRIC DIAGRAM
