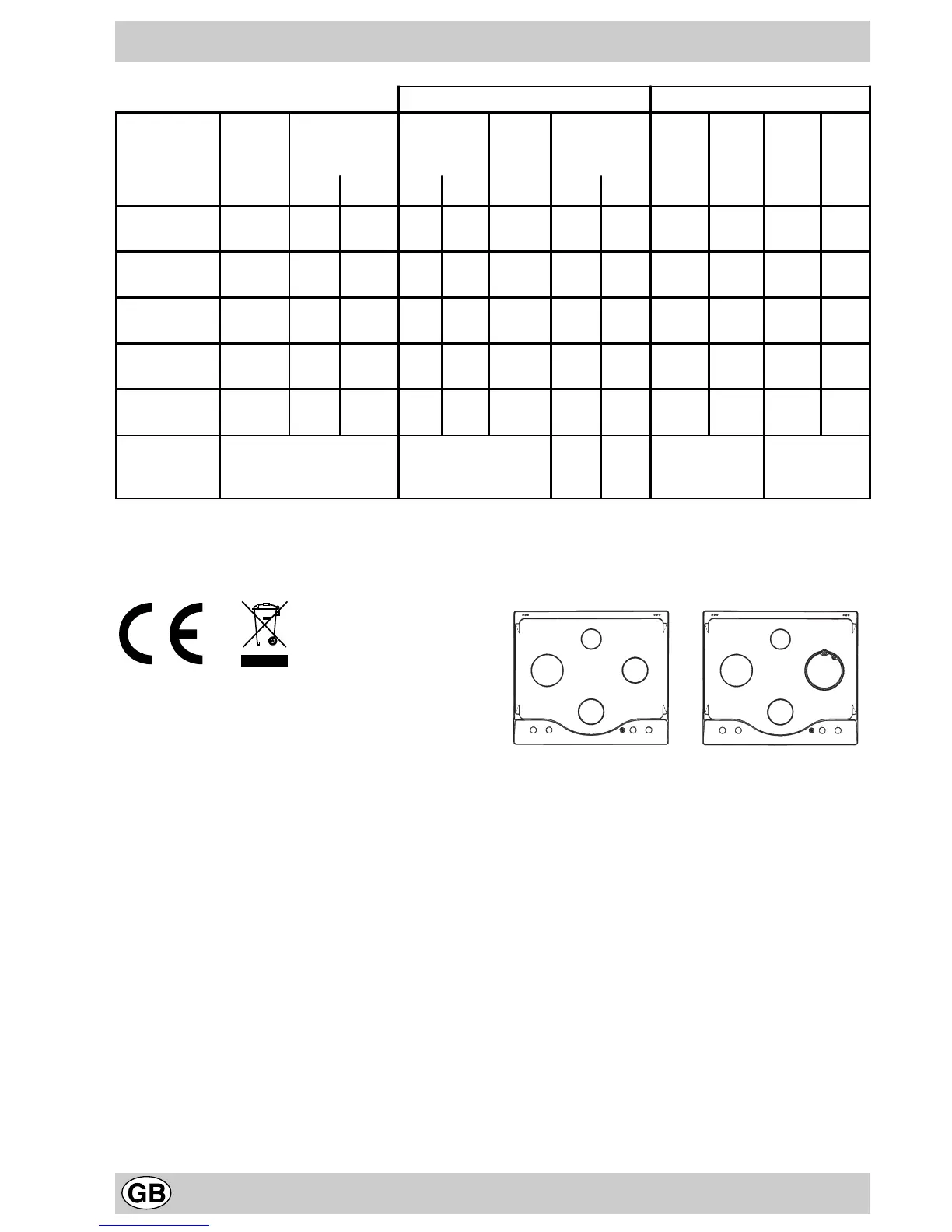

Burners and Nozzle Specifications
PH 640...
R
S
S
A
Table 1 Liquid Gas Natural Gas
Burner Diameter
(mm)
Thermal Power
kW (p.c.s.*)
By-pass
1/100
(mm)
Nozzle
1/100
Flow*
g/h
Nozzle
1/100
Flow*
l/h
Nozzle
1/100
Flow*
l/h
Nom. Red. (1) (mm) *** ** (mm) (mm)
Fast
(Large) (R)
100 3.00 0.7 41 39 86 218 214 116 286 143 286
Reduced Fast
(RR)
100 2.60 0.70 41 39 80 189 186 110 248 135 248
Semi Fast
(Medium) (S)
75 1.65 0.4 30 28 64 120 118 96 157 105 157
Auxiliary
(Small) (A)
55 1.00 0.4 30 28 50 73 71 71 95 80 95
Triple Crown
(TC)
130 3.25 1.3 60 57 91 236 232 133 309 150 303
Supply
pressures
Nominal (mbar)
Minimum (mbar)
Maximum (mbar)
28-30
20
35
37
25
45
20
17
25
13
6,5
18
* At 15°C and 1013 mbar-dry gas
** Propane P.C.S. = 50.37 MJ/kg.
*** Butane P.C.S. = 49.47 MJ/kg.
Natural P.C.S. = 37.78 MJ/m
3
(1) Only for appliances with the security device (Ref. F).
PH 640MST...
S
A
RR
TC
The European Directive 2002/96/EC on Waste Electrical
and Electronic Equipment (WEEE), requires that old
household electrical appliances must not be disposed of
in the normal unsorted municipal waste stream. Old
appliances must be collected separately in order to
optimise the recovery and recycling of the materials they
contain and reduce the impact on human health and the
environment. The crossed out “wheeled bin” symbol on
the product reminds you of your obligation, that when you
dispose of the appliance it must be separately collected.
Consumers should contact their local authority or retailer
for information concerning the correct disposal of their old
appliance.
This appliance complies with the following European
Economic Community directives:
- 73/23/EEC of 19/02/73 (Low Voltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 90/396/EEC of 29/06/90 (Gas) and subsequent
modifications;
- 93/68/EEC of 22/07/93 and subsequent modifications.
- 2002/96/EEC
