Ariston CLAS HE EVO User Manual

7
product description

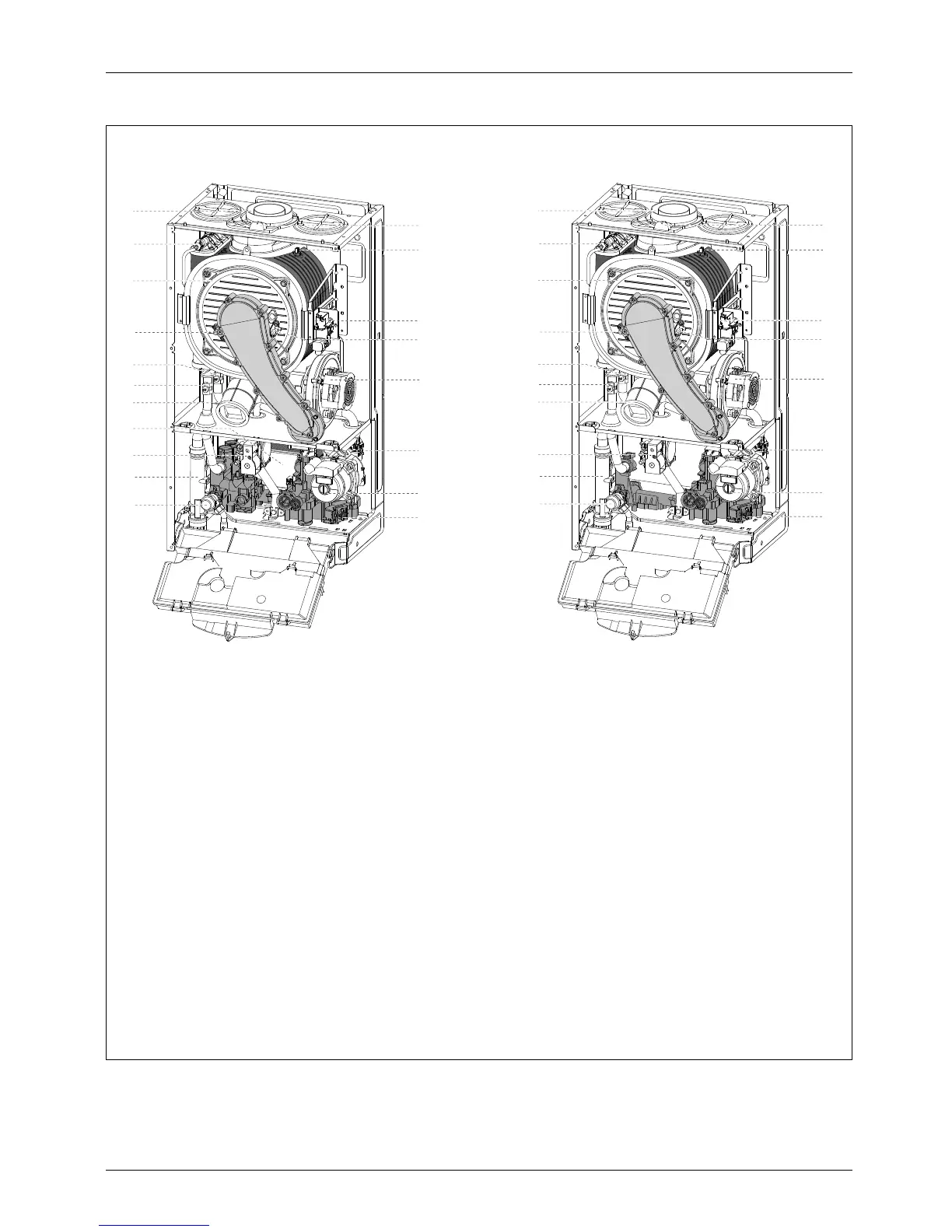

Overall view
1
2
3
4
5
6
7
9
10
12
14
16
19
20
21
22
23
24
8
1
2
3
4
5
6
7
9
10
12
14
15
19
20
21
22
23
24
1. Flue connector
2. Manual air vent
3. Main heat exchanger
4. Detection electrode
5. C.H. Return temperature probe
6. C.H. Flow temperature probe
7. Silencer
8. Secondary heat exchanger
9. Gas valve
10. Trap
12. C.H. Pressure relief valve
14. C.H. Circuit  lter
16. Circulation pump with air release valve
17. D.H.W. Flow switch
18. Diverter valve
19. Low Water Pressure Switch
20. Modulating fan
21. Ignition electrodes
22. Ignitor
23. Thermal fuse
24. Combustion analysis test point
CLAS HE EVO
CLAS HE EVO SYSTEM

Ariston CLAS HE EVO Specifications

General

Dimensions	770 x 400 x 315 mm
Mounting	Wall-mounted
Efficiency Class	A
ErP Heating	A
ErP DHW	A
Warranty	2 years
Heating Output	24 kW
Fuel Type	Natural Gas
Type	Combi
