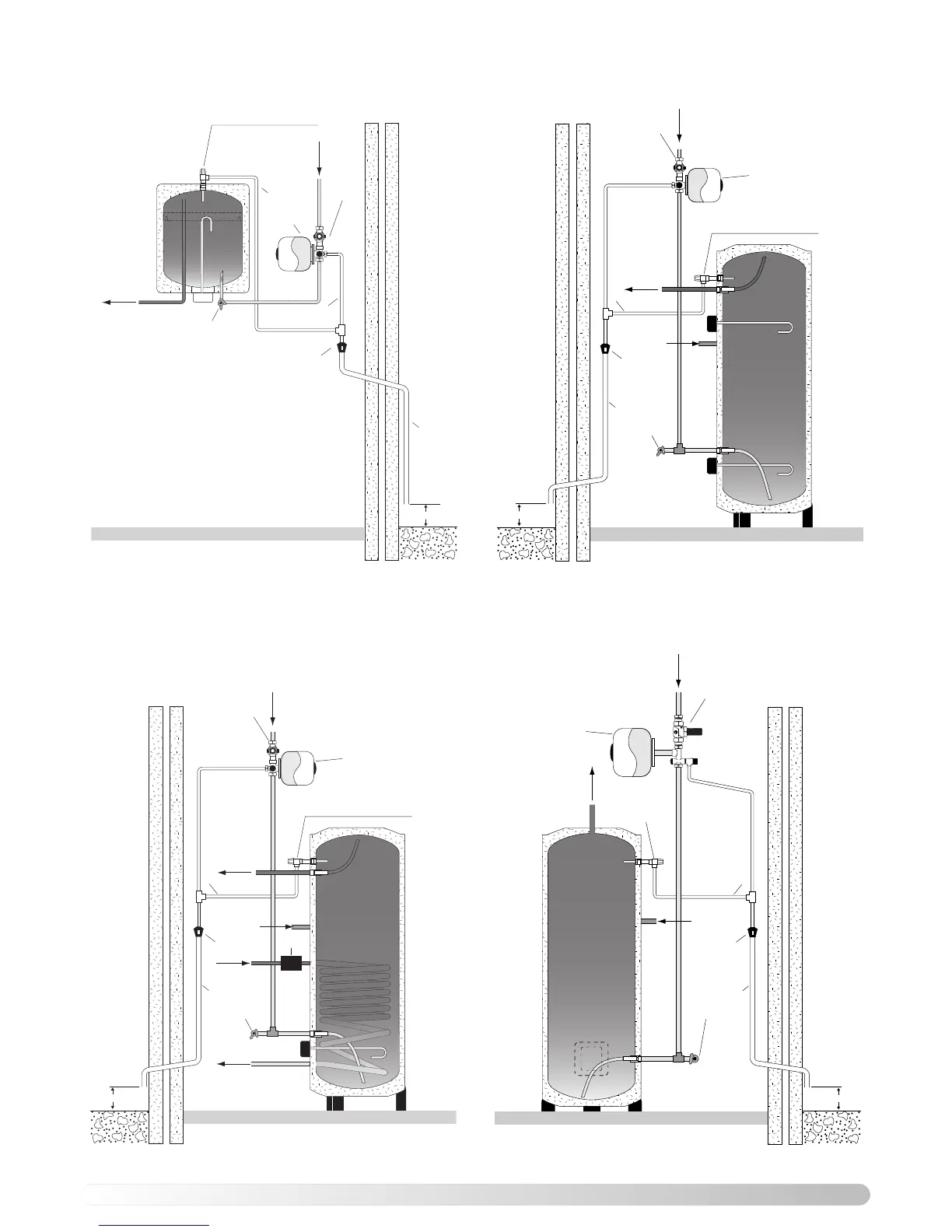

Ariston Classico HE STD 150 Instructions For Installation, Servicing And Use

SECONDARY
RETURN
COMBINATION
VALVE
EXPANSION RELIEF
PIPE
COLD
MAINS-IN
28mm
DRAIN
EXPANSION
VESSEL
PRESSURE + 
TEMPERATURE
RELIEF VALVE
HOT SUPPLY
28mm
TUNDISH
22mm
MAX. 100mm
%&$&
10

SECONDARY
RETURN
COMBINATION
VALVE
EXPANSION RELIEF
PIPE
COLD
MAINS-IN
22mm
DRAIN
EXPANSION
VESSEL
PRESSURE + TEMPERATURE
RELIEF VALVE
HOT SUPPLY
22mm
TUNDISH
22mm
MAX. 100mm

%&
$&
COMBINATION
VALVE
EXPANSION
RELIEF
PIPE
COLD
MAINS-IN
15/22mm
EXPANSION
VESSEL
PRESSURE + TEMPERATURE
RELIEF VALVE
HOT SUPPLY
15/22mm
TUNDISH
15mm
22mm
MAX. 100mm
DRAIN

%&"
$!& 
RETURN
FLOW
SECONDARY
RETURN
COMBINAT IO N
VALVE
EXPANSION RELIEF
PIPE
COLD
MAINS-IN
22mm
DRAIN
EXPANSION
VESSEL
PRESSURE + TEMPERATU RE
RELIEF VALVE
ZONE
VALVE
HOT SUPPLY
22mm
TUNDISH
22mm
MAX. 100mm

%& 
$&
NOTE: FLOW AND RETURN PIPES MAY BE CONNECTED IN REVERSE
TO THAT SHOWN IN THE DIAGRAMS FOR INDIRECT CYLINDERS
.
