2X-A Series Operation Manual 25
Operator level operation
The operator level is protected by password security and is reserved for
authorized users who have been trained to operate the control panel. The default
operator user password is 2222.
This user level lets you:
• Perform all tasks described in “Public level operation” on page 22
• Reset the control panel
• Manually start sounders, stop sounders, or restart stopped sounders
• Manually start or stop evacuation sounders
• Enable or disable previously configured sounder, fire routing, and fire
protection delays
• View system status reports
• Change the operator password
• Perform LED, LCD, buzzer, and keyboard tests
• View the alarm counter
The Main menu
The operator Main menu is shown below.

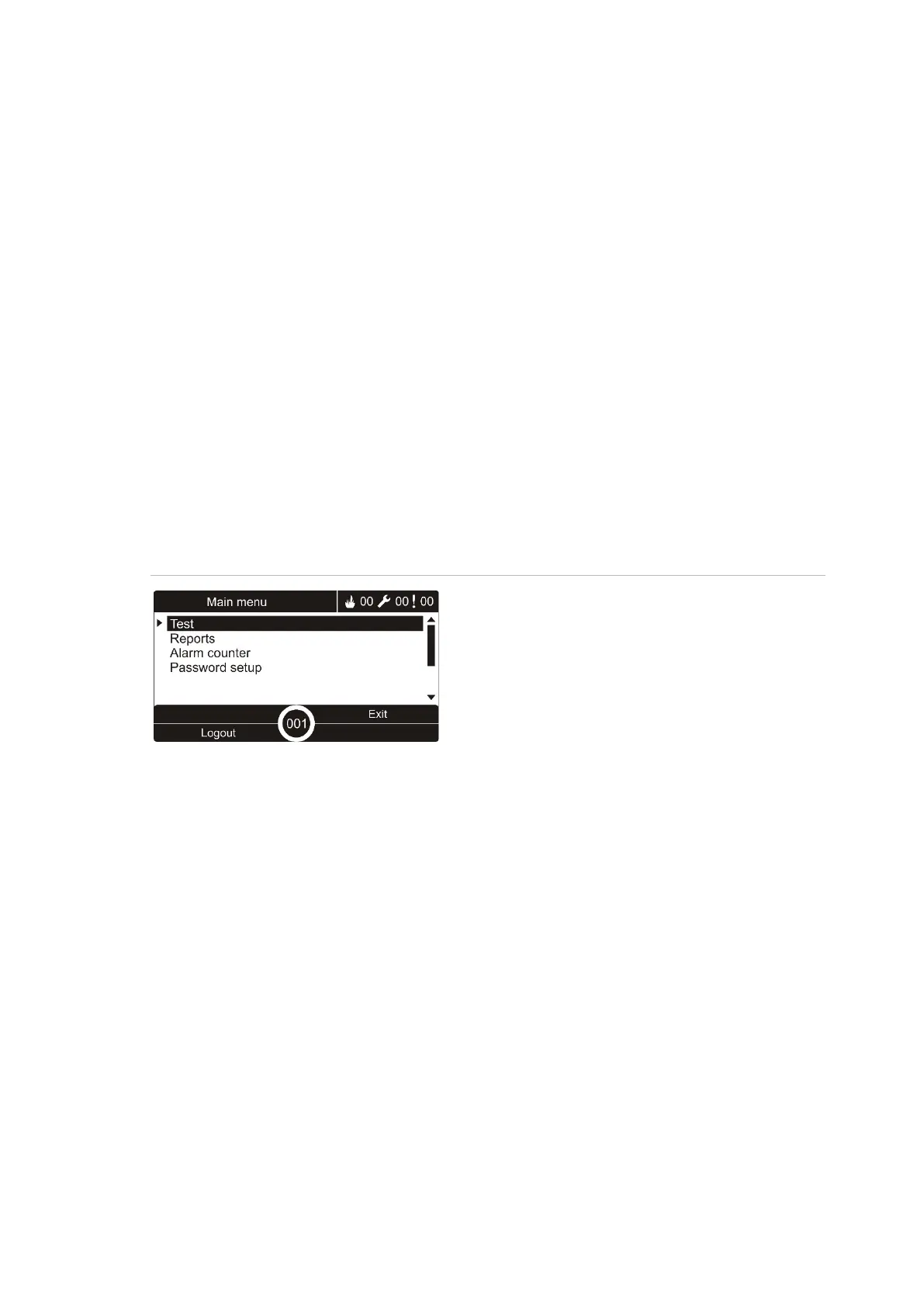

Figure 5: The operator Main menu
