Chapter 2: Installation
2X-A Series Installation Manual 29
Battery type configuration
Caution: This configuration applies to control panels with a 10 A PSU. No
battery type configuration is required for control panels with a 4 A or 6 A PSU.
To ensure the correct charging current, configure the battery type using the
battery selection jumper located above the battery fuse on the PSU (see
Figure 13 below).

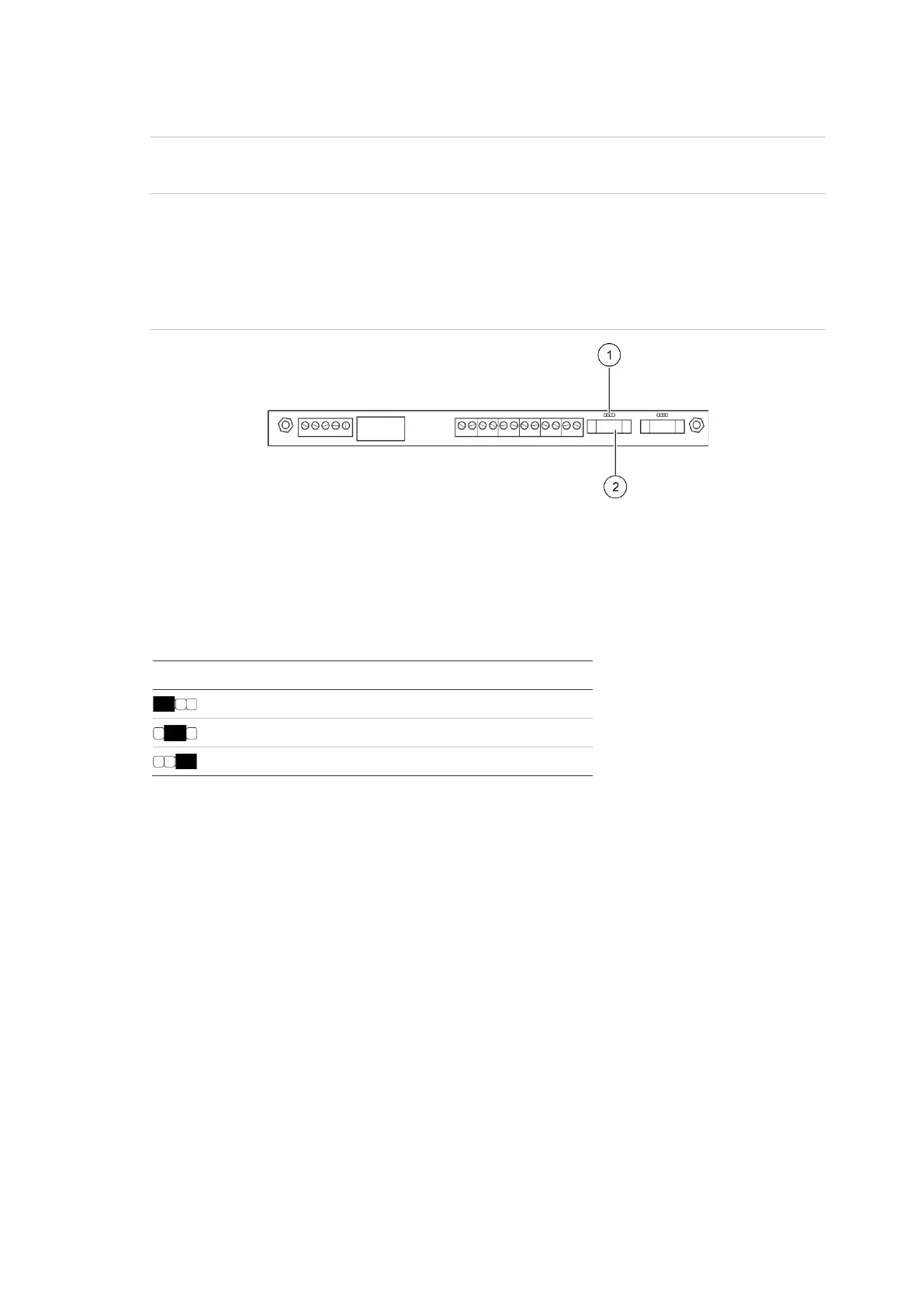

Figure 13: 10 A PSU battery selection jumper and fuse
1. Battery selection jumper
2. Battery fuse
To configure the battery type, place the jumper over the pins as shown below.
Table 12: Battery type configuration
Battery type
7 Ah, 12 Ah, 17/18 Ah
36/38 Ah
65 Ah
