Aritech ATS1140 - Page 3

P/N R466-5652 (EN) • REV A • ISS 07DEC23 3 / 4

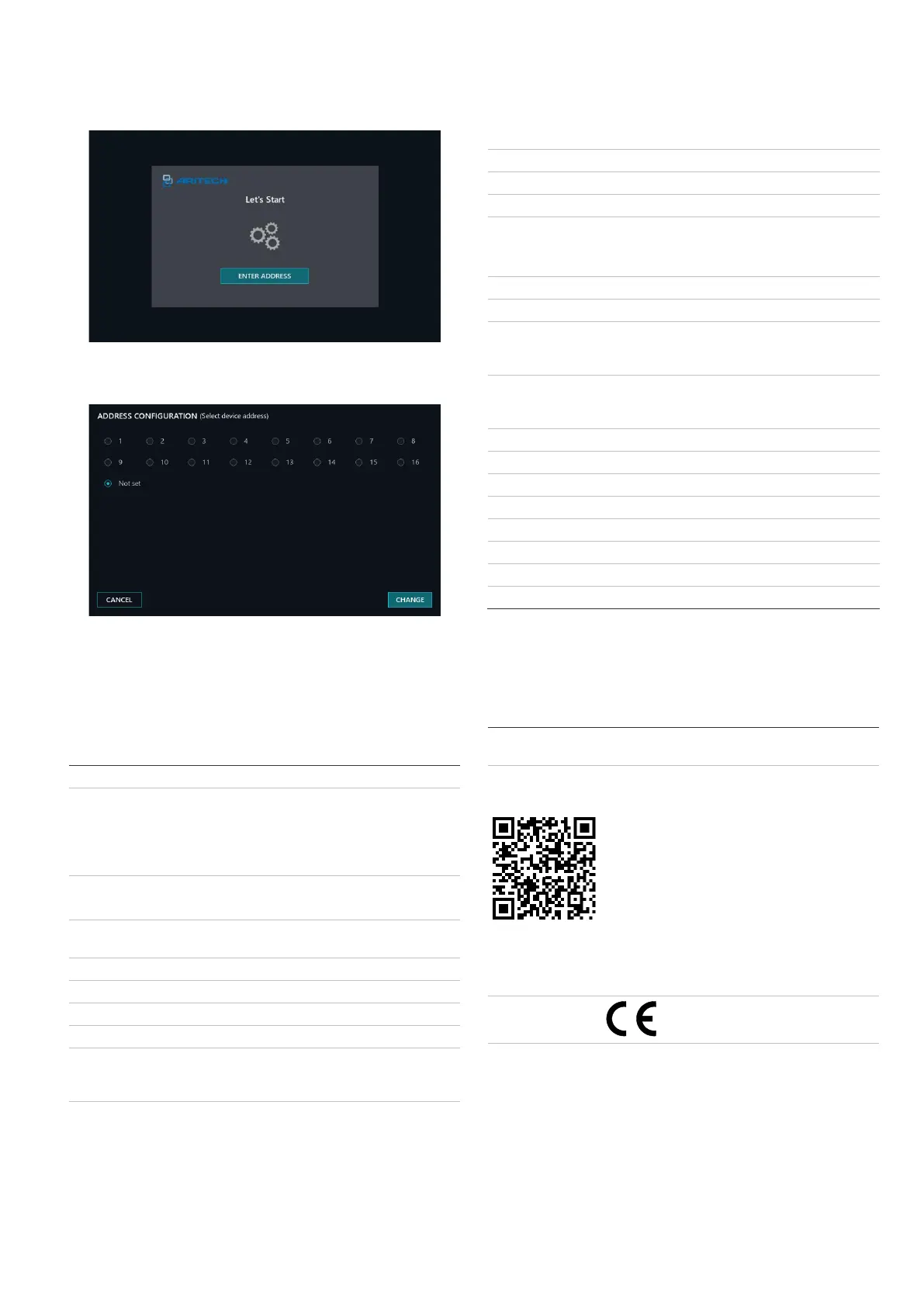

Initial installation
When powered for the very first time, the touchscreen shows
the following initial installation screen:
Tap the ENTER ADDRESS button to go to the address setting
screen:
Select the desired address and tap the CHANGE button. The
device restarts to apply the changes.
For more information, see Advisor Advanced ATSx500A
Installation and Programming Manual.
Specifications
Supply voltage
8.5 to 15.0 VDC
Operating current
Standby
70 mA at 13.7 VDC, 80 mA at 12 VDC
Average
220 mA at 13.7 VDC, 250mA at 12 VDC
Maximum
330 mA at 13.7 VDC, 375mA at 12 VDC
Input type (request to exit)
IN1: Normally open (NO) contact
IN2: For future functions
Output type
Open collector (OC), 100 mA max.,
15 VDC max.
Overcurrent protection
Built-in
Tamper type
Tamper and pry-off detection
Mounting type
Wall mount
Mounting height
<2 m
Code combinations [1]
5 digits
10 digits
100 000
10 000 000 000
Mifare reader:
Carrier frequency
13.56 MHz
Bandwidth
1.696 MHz
Maximum power output
<1 mW
Supported cards:
Unsecure mode
Mifare Unique ID (Classic 1K/4K, Desfire
EV1, EV2, EV3)
Secure mode
Mifare Desfire EV1, EV2, EV3
Card combination with 48-
bit key
281 474 976 710 655
Display type
TFT LCD 7-inch colour with touch panel
Display resolution
800 x 480
Touch technology
Capacitive
Proximity sensor
IR Time-of-flight
Class 1 laser product compliant with
IEC 60825-1:2014
Front panel protection
Tempered glass with oleophobic layer
Wiring
4-wire shielded data bus
Maximum number of
touchpad devices on the
control panel data bus
8
Maximum cable length (if
powered from the control
panel or a DGP)
WCAT52 (Ø0.52 mm): 25 m
WC104W (Ø0.75 mm): 70 m
Dimensions (W × H × D)
127 x 179 x 20 mm
Weight
460 g
Colour
White
Material
ABS
IP rating
IP30
Operating temperature
0 to +50°C
Maximum relative humidity
95% noncondensing
Security rating (EN62368)
ES1, PS2, TS1, RS1
[1] Notes
• When Duress functionality is enabled, 6 digits codes are required.
• There are no invalid code combinations.
Regulatory information
Manufacturer
Carrier Fire & Security B.V.
Kelvinstraat 7, 6003 DH Weert, Netherlands
Product warnings
and disclaimers
THESE PRODUCTS ARE INTENDED FOR
SALE TO AND INSTALLATION BY QUALIFIED
PROFESSIONALS. CARRIER FIRE &
SECURITY CANNOT PROVIDE ANY
ASSURANCE THAT ANY PERSON OR ENTITY
BUYING ITS PRODUCTS, INCLUDING ANY
“AUTHORIZED DEALER” OR “AUTHORIZED
RESELLER”, IS PROPERLY TRAINED OR
EXPERIENCED TO CORRECTLY INSTALL
FIRE AND SECURITY RELATED PRODUCTS.
For more information on warranty disclaimers and
product safety information, please check
https://firesecurityproducts.com/policy/product-
warning/ or scan the QR code.
Certification
EN 50131-1 System requirements
EN 50131-3 Control and indicating equipment
Security grade 3, Environmental class II
Tested and certified by Kiwa Nederland B.V.
