Arkbird ARKBIRD-Tiny3 - Page 3

Arkbird
- 3 -

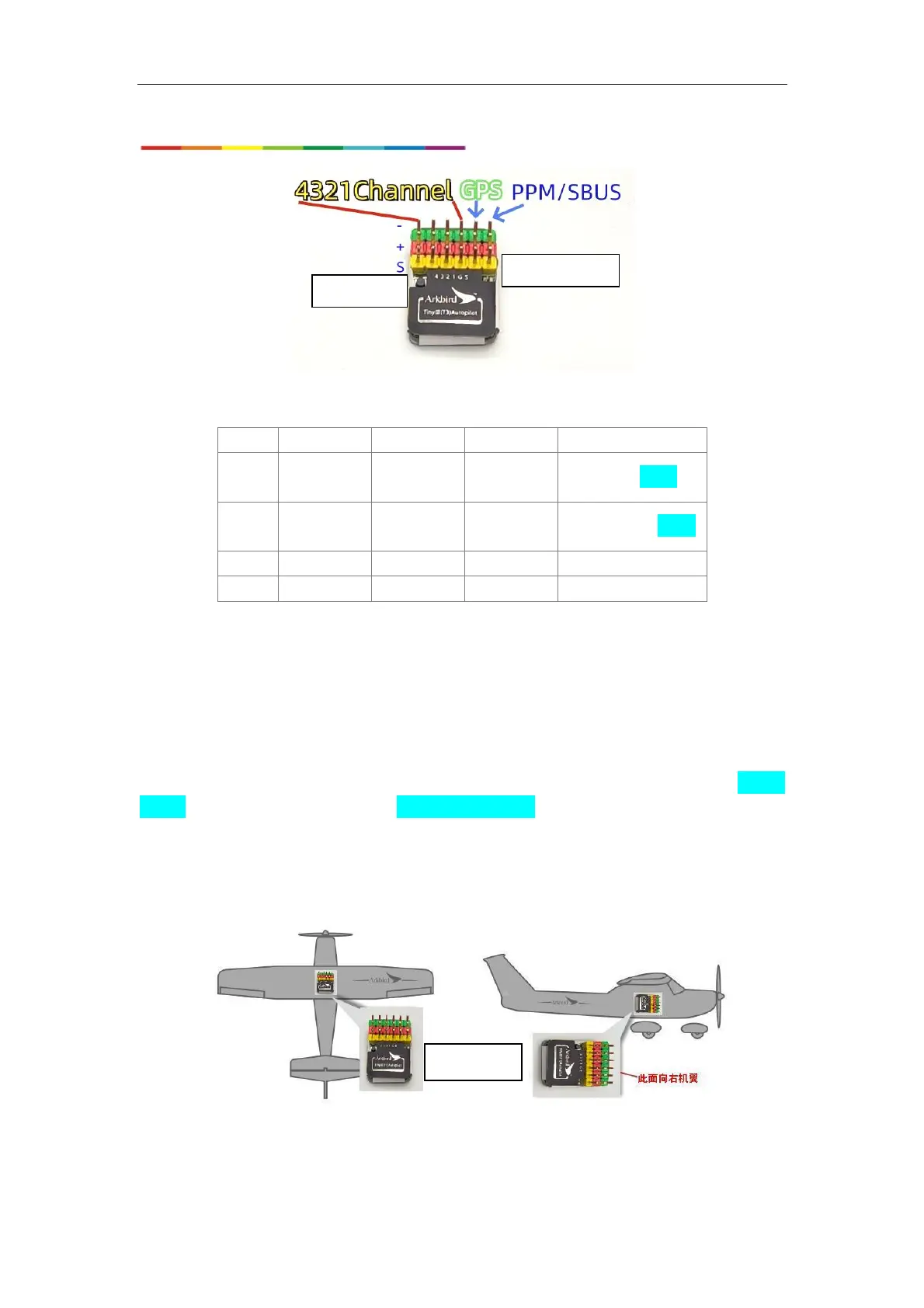

1. Wiring
（Power 4.8V-7V）
Ordinary
Fly-Wing
V-Tail
Taxiing Rectifying
CH 1
Aileron Y
Right
surface
Aileron Y
Rudder PWM
CH 2
Elevator
Left
surface
Right V-Tail
Landing gear PWM
CH 3
ESC
ESC
ESC
Landing gear out
CH 4
Rudder
Rudder
Left V-Tail
steering wheel
（Check carefully before power on, incorrect wiring will damage the autopilot permanently!）
1. The pins of RX in & Servo out shall stay forward (toward flying direction), the side with 4P
dip switch shall be upward or vertical installed toward right wing.（Default is level installation）
2. The GPS module sticker should face the sky on one side. The red light on the module
remains on when the GPS is not positioned; When connected and already located, the indicator
light flashes.
3. While using on 3-channel plane, connect channel 1 output to rudder to steering.
4. When only connecting to the steering wheel, connect output 1 to the Receiver’s Rudder
output and output 2 to the Receiver’s landing gear output. At this time, output 4 automatically
recognizes as Taxiing Rectifying Gyro (if output 2 is not connected, the stabilizing rudder will stay
on)
2 ways of installation
Yellow/Blue
Set Button
Face Up
Face Right
