Socket size
Grade 8.8/8.9
Grade 10.9
Hardware Reference Chart
M6 M8 M10 M12 M14 M16
10mm
102ft.lbs.
144ft.lbs.
13mm
20ft.lbs.
30ft.lbs.
17mm
50ft.lbs.
72ft.lbs.
19mm
70ft.lbs.
1t40ft.lbs.
22mm
110ft.lbs.
165ft.lbs.
24mm
175ft.lbs.
225ft.lbs.

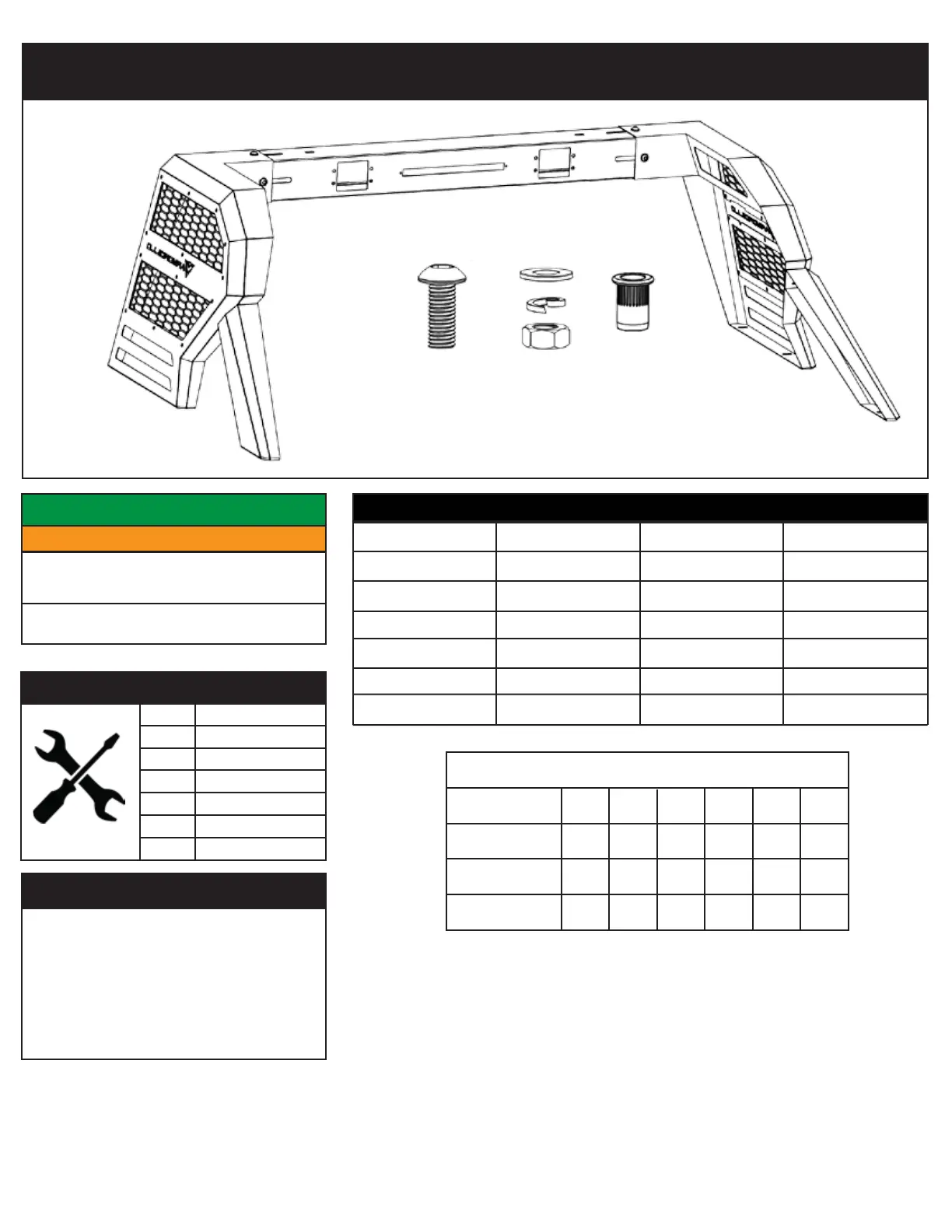

PARTS LIST:
Driver Side Panel 1 Passenger Side Panel 1
Cross Bars 13
1
3” LED POD
6
M10 x 35mm
Button Head bolt
2
26
1
Driver Side Support
M10 Washer
LED 3rd Brake light
M10 x 30mm
Button Head bolt
10
Pass. Side Support 1
M10 Lock Washer
16
M10 Hex Nut 10
M10 Nutset/Rivet nut
6
LEVEL OF DIFFICULTY: EASY
Parts
INSTALLATION TIPS:
1) REMOVE CONTENTS FROM BOX, VERIFY ALL PARTS LISTED ARE PRESENT AND
FREE OF DAMAGE. READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE
ATTEMPTING INSTALLATION.
2) TWO PERSON WILL BE REQUIRED WHEN MOUNTING AND ALIGNING CHASE
RACK.
3) USING PROPER TOOLS WILL IMPROVE THE QUALITY OF THE INSTALL AND
REDUCE INSTALLATION TIME.
4) ANTI-SEIZE LUBRICANT IS HIGHLY RECOMMEND TO USED ON ALL STAINLESS
STEEL FASTENERS TO PREVENT DAMAGE TO THE THREAD AND GALLING.
PERIODICALLY CHECK TO ENSURE ALL FASTENERS ARE TIGHT A ND ALL STRUCTURAL COMPONENTS ARE SOUND
Armordillo USA warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original
purchaser. If the product is found to be defective, We may repair or replace the product at their option, when the product is returned, prepaid,
with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. We liability is limited to repair or
replacement of products found to be defective, and specifically excludes liability for incidental
TOOL REQUIRED
SIZE DESCRIPTION
3/16” - 7/16”
Drill Bit/Step
Drill
17mm
Socket/Wrench
5/16”
Allen Wrench/Socket
M10
Nutsert/Rivet nut Tool
Utility Knife
INSTALL TIME: 60-90 MIN.
IF YOU ARE HESITANT TO UNDERTAKE
THIS TASK ON YOUR OWN, CONTACT AN AUTHORIZED
INSTALLER FOR ADDITIONAL ASSISTANCE
SAFETY GLASSES AND GLOVES SHOULD BE WORN AT
ALL TIME WHILE INSTALLING THIS PRODUCT.
1/2020 2000 REV2
21912 Garcia Ln, Walnut, CA 91789 (909) 895-4522
WWW.ARMORDILLOUSA.COM
