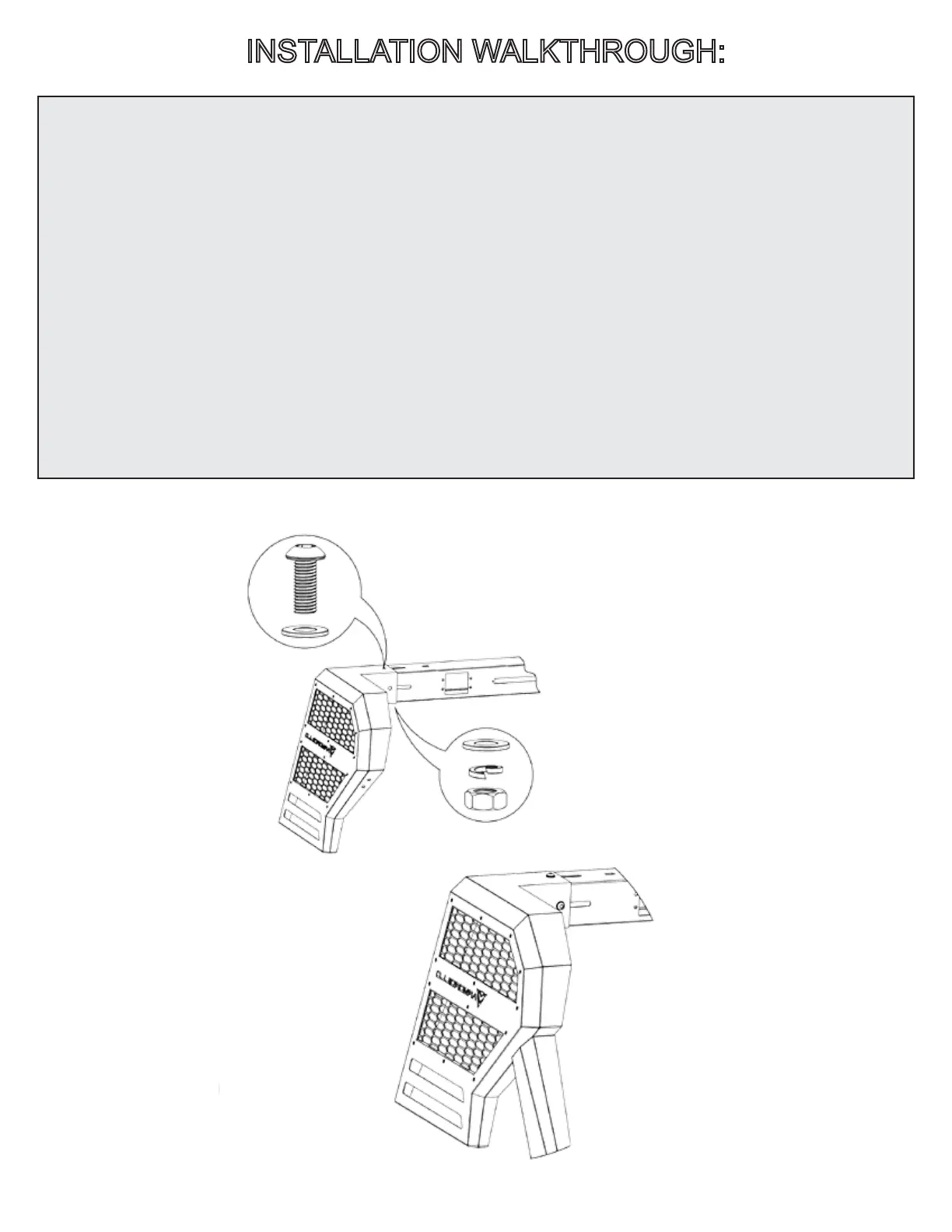

6) With the chase rack installed on the vehicle attached the 3rd brake light holder to the chase rack.
There are 2 mount points on the cross bar that is closed the rear of the bed. Attach the #rd bracket
light holder with the supplied hardware, (2)M8 Hex bolt, M8 Washer on the top and on the bottom it
will be (2) M8 washer, (2) M8 Lock Washer and (2) M8 Hex nut
7) The 3rd brake light is pre installed on the shroud, The wires are recommend to be tap into your
rear brake lights. If you are not familiar with this step we strongly recommend having a professional
connect the wires.
Black - Negative / Ground.
Red - Brake Light Positive.
Blue - Parking Light Positive. (Optional)
8) Do periodic inspections to the installation to ensure all hardware is secure and tight.
1/2020 2000 REV2
21912 Garcia Ln, Walnut, CA 91789 (909) 895-4522
WWW.ARMORDILLOUSA.COM
SUPPORT@ARMORDILLOUSA.COM
INSTALLATION WALKTHROUGH:
