Armstrong CC-5 - Page 3

3
Troubleshooting Guide
* IMPORTANT: In regards to the CC-5, CC-12, CC-25 and CC-40 the 5, 12, 25 and 40 represent the total tempered
water capacity (in GPM) of the unit. The following formula should be used to determine how much hot water or
condensate can be cooled:
B-C X Model = gallons of hot liquid or condensate Example: 135 - 50 X 5 (CC-5) = 3.25*
H-C 180 - 50
*3.25 gal x 8.33 lbs per gallon x 60 = 1624 lbs per hour
Where:
B = Set point of tempering valve (preset to 135°F)
C = Cold water temperature
H = Hot water temperature or condensate temperature
* In the example, Model CC-5 (5 gpm) can handle 3.25 gpm of 180°F of hot liquid. If cold water temperature or
discharge temperature changes - the capacity will change.

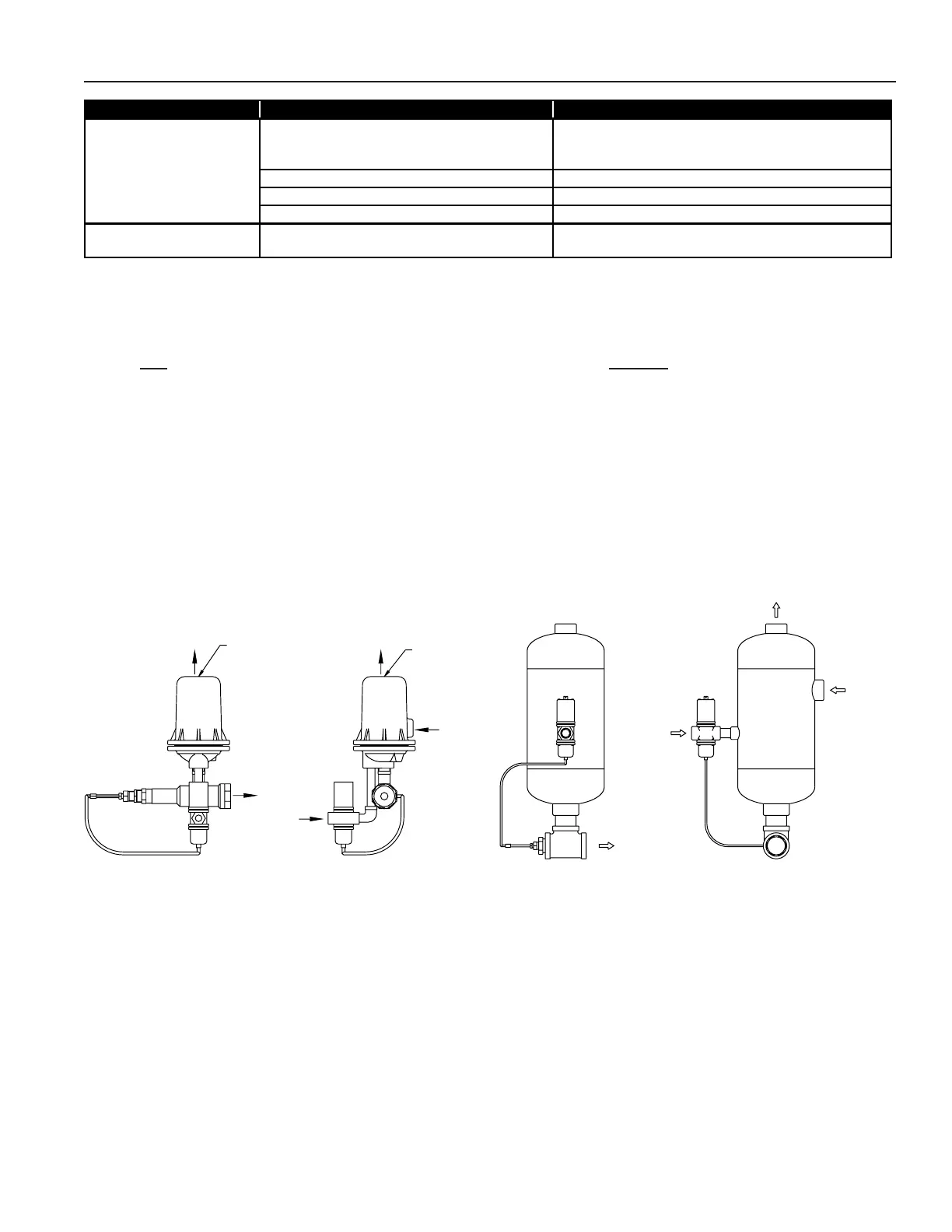

Vent
Vent
Tempered Condensate Range:
Factory Set 135°F (57°C)
Field Set 115°F to 180°F (46°F to 82°C)
Tempered
Condensate
Cold
Water
Hot
Condensate
Tempered
Condensate
Cold
Water
Hot
Condensate
Vent
Tempered Condensate Range:
Factory Set 135°F (57°C)
Field Set 115°F to 180°F (46°F to 82°C)
Models CC-5 and CC-12 Models CC-25 and CC-40
Problem Cause Solutions
Capacity!of!hot!liquid! greater!than!model!can!handle
Check!with!Armstrong!for!other!options!or!models.!!*Check!
your!application!with!the!given!formula!below!to!check!
capacity!based!on!any!changing!variables
Cold!water!temperature!is!too!hot Verify!seasonal!changes!and!adjust!if!possible.
Cold!water!pressure!is!too!low Adjust!pressure
Cold!water!piping!is!too!small Increase!pipe!sizes
Discharge!Temperature!
Unstable
Thermal!element!of!the!tempering!valve!is!faulty Install!new!tempering!valve
Cannot!get!down!to!desired!
set
