ARNOTT REAR AIR SPRING
FOR
2003-2009 MERCEDES-BENZ E-CLASS
FOR
2005-2011 MERCEDES-BENZ CLS-CLASS
(EXC. AMG)
GENERAL INFORMATION:
Reading this manual signies your agreement to the terms of the general release, waiver of liability, and hold harmless agreement,
the full text of which is available at www.arnottinc.com.
• Not to be stored below 5
o
F (-15
o
C) or above 122
o
F (50
o
C).
• Avoid damage to air lines and cables.
• Removal and installation is only to be performed by fully qualied personnel.
• Use car manufacturer’s diagnostic software.
CAUTION: Damage to the vehicle and air suspension system can be incurred if work is carried out in a manner other than specied
in the instructions or in a different sequence.
To avoid the possibility of short circuits while working with electric components consult your owner's manual on how to
disconnect your battery.
Consult your vehicle owner's manual, service manual, or car dealer for the correct jacking points on your vehicle and for
additional care, safety and maintenance instructions. Under no circumstances should any work be completed underneath
the vehicle if it is not adequately supported, as serious injuries and death can occur.
AIR SPRING REMOVAL
1. SET THE STEERING TO STRAIGHT AHEAD.
2. RAISE THE VEHICLE.
3. REMOVE THE REAR WHEELS. (FIGURES 1, 2)
The air spring(s) contains a solenoid valve. Once inated, only the “Mercedes DAS Star” diagnostic computer can deate
the air spring(s).

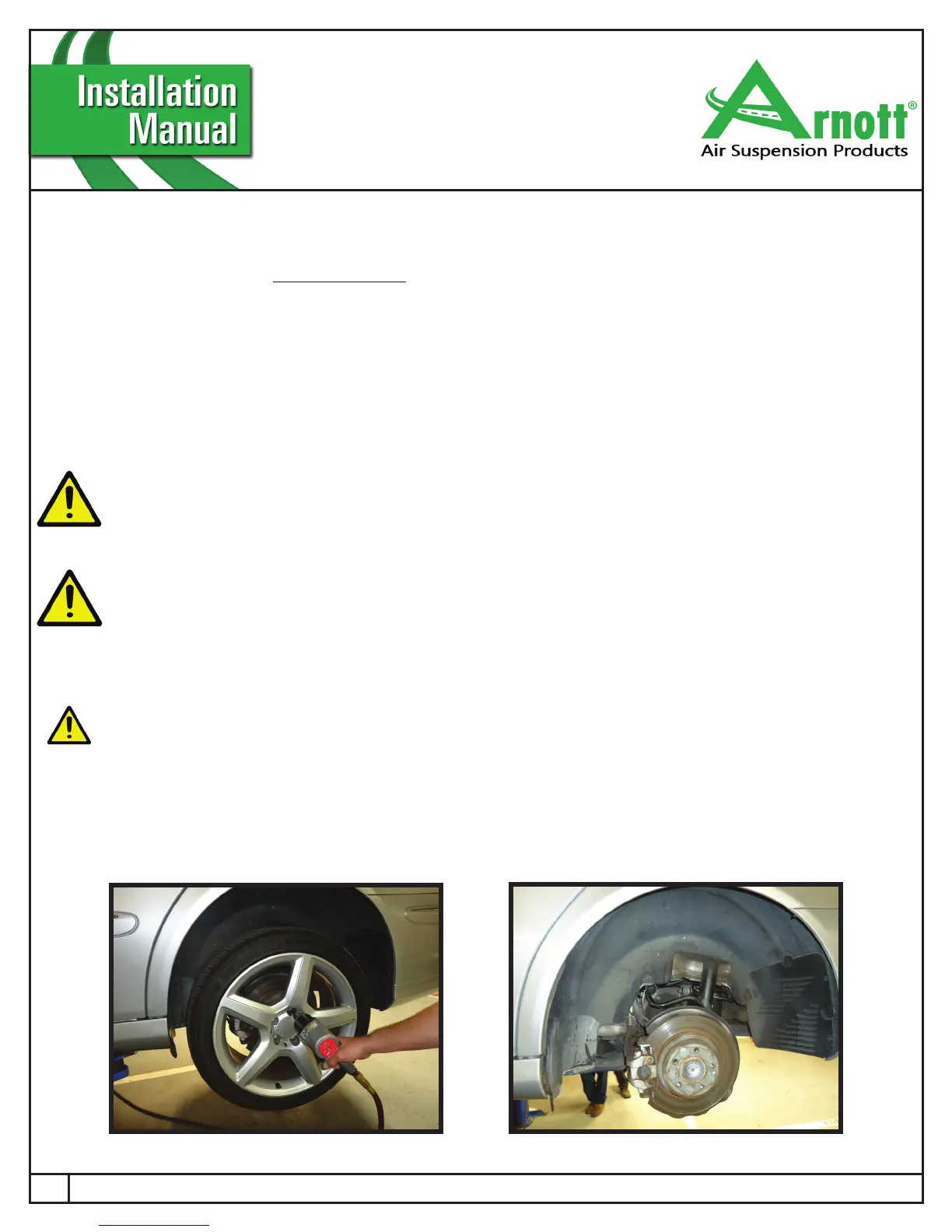

FIGURE 1
FIGURE 2
