Arnott 2724-A - Disconnect Electrical Plug; Disconnect Air Line; Remove Lower Shock Mount

4
REV 4 01/25/2017
A-2724
A-2724
ARNOTT REAR AIR SPRING
FOR
2003-2009 MERCEDES-BENZ E-CLASS
FOR
2005-2011 MERCEDES-BENZ CLS-CLASS
(EXC. AMG)

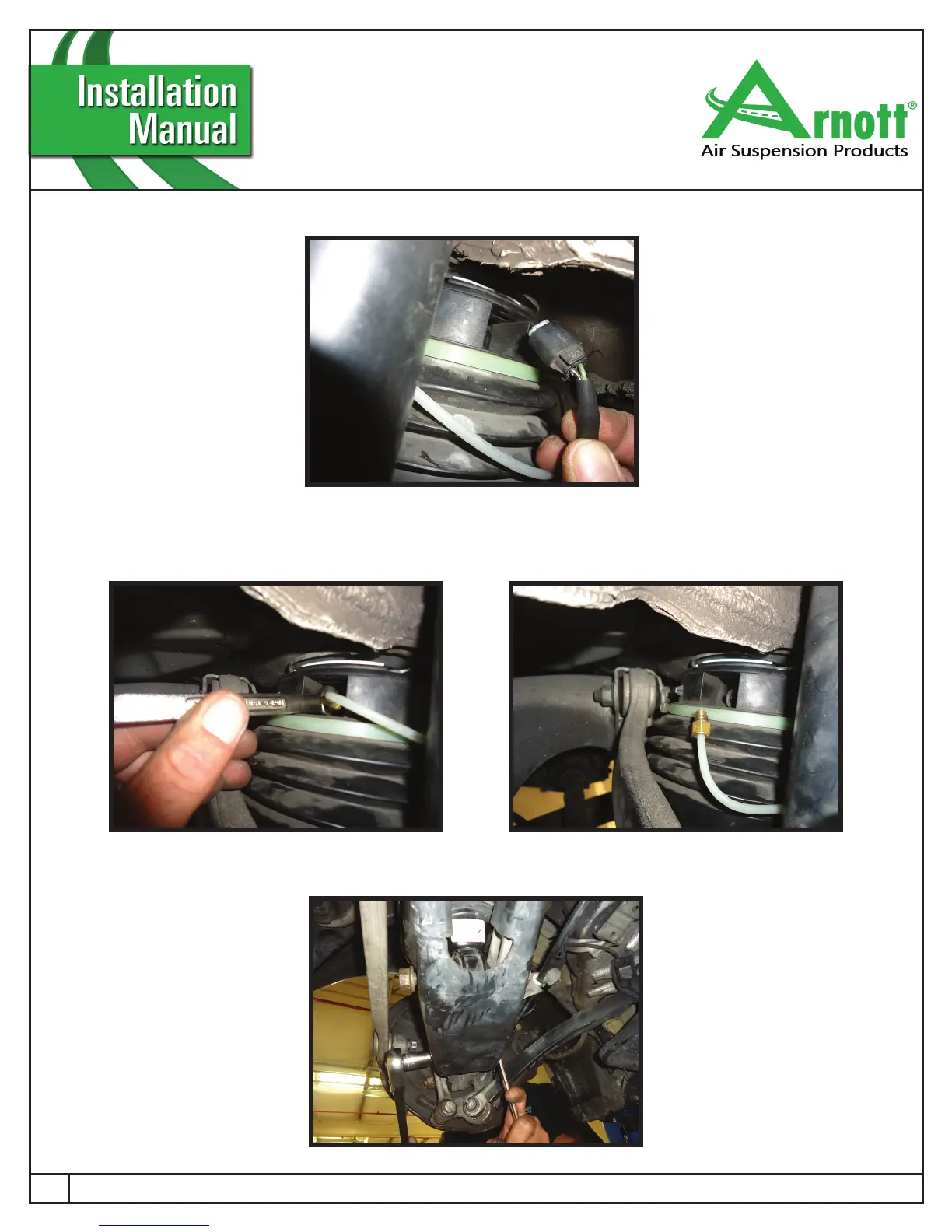

FIGURE 3
5. LOCATE AND REMOVE THE AIR LINE FROM THE AIR SPRINGS TOP MOUNT USING A MERCEDES SOCKET
WRENCH (211 589 00 90 00) OR OTHER SUITABLE METHOD. (FIGURES 4, 5)
4. LOCATE AND REMOVE THE ELECTRICAL PLUG FROM THE AIR SPRINGS TOP MOUNT. (FIGURE 3)
6. LOOSEN AND REMOVE THE LOWER SHOCK MOUNTING NUT AND BOLT. (FIGURE 6)
FIGURE 6
FIGURE 4
FIGURE 5
