Arnott 2724-A - Remove Rear Control Arm Fasteners; Dislocate Air Spring Top Mount; Remove Air Spring Lower Mount

5
REV 4 01/25/2017
A-2724
A-2724
ARNOTT REAR AIR SPRING
FOR
2003-2009 MERCEDES-BENZ E-CLASS
FOR
2005-2011 MERCEDES-BENZ CLS-CLASS
(EXC. AMG)

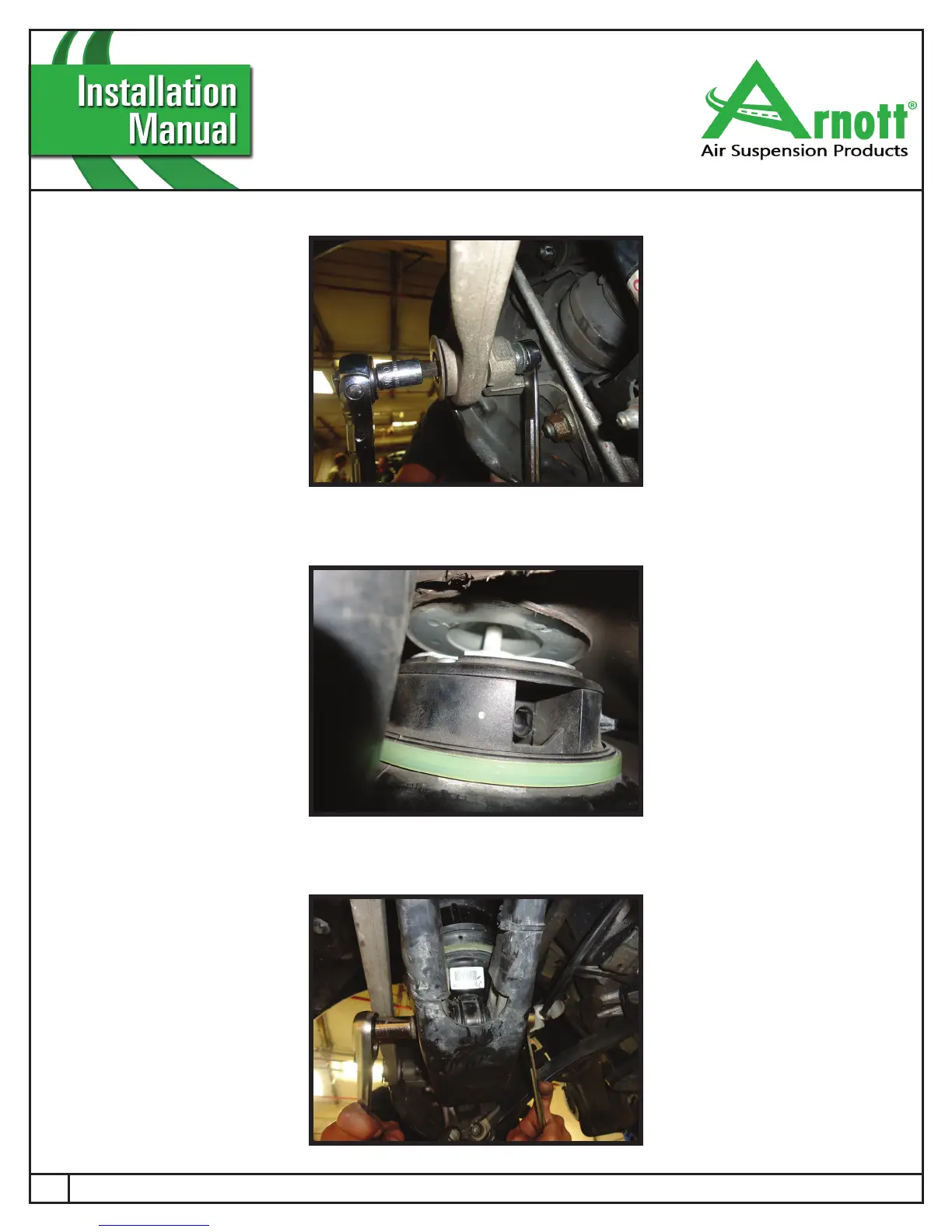

FIGURE 7
8. DISLOCATE THE AIR SPRING’S TOP MOUNT FROM THE VEHICLE. (FIGURE 8)
9. LOOSEN AND REMOVE THE AIR SPRING’S LOWER MOUNTING NUT AND BOLT. (FIGURE 9)
7. LOOSEN AND REMOVE THE REAR CONTROL ARM NUT AND BOLT. (FIGURE 7)
FIGURE 9
FIGURE 8
