Arnott 2724-A - Disconnect Factory Rubber Hose; Air Spring Installation; Tighten Fasteners; Inflation Procedure

6
REV 4 01/25/2017
A-2724
A-2724
ARNOTT REAR AIR SPRING
FOR
2003-2009 MERCEDES-BENZ E-CLASS
FOR
2005-2011 MERCEDES-BENZ CLS-CLASS
(EXC. AMG)
AIR SPRING INSTALLATION
1. INSTALLATION IS IN REVERSE ORDER OF AIR SPRING REMOVAL, WITH THE EXCEPTION OF THE
SECURED RESERVOIR HOSE.
Tighten all nuts and bolts to manufacturer's specications during the installation process.
10. REMOVE FACTORY AIR SPRING FROM THE VEHICLE BY DISCONNECTING THE FACTORY RUBBER HOSE
LEADING FROM THE AIR SPRING TO THE AIR SPRING’S RESERVOIR. SECURE THE HOSE IN A SUITABLE
LOCATION AWAY FROM ANY MOVING PARTS OR COMPONENTS WITH EXCESSIVE HEAT. (FIGURE 10)

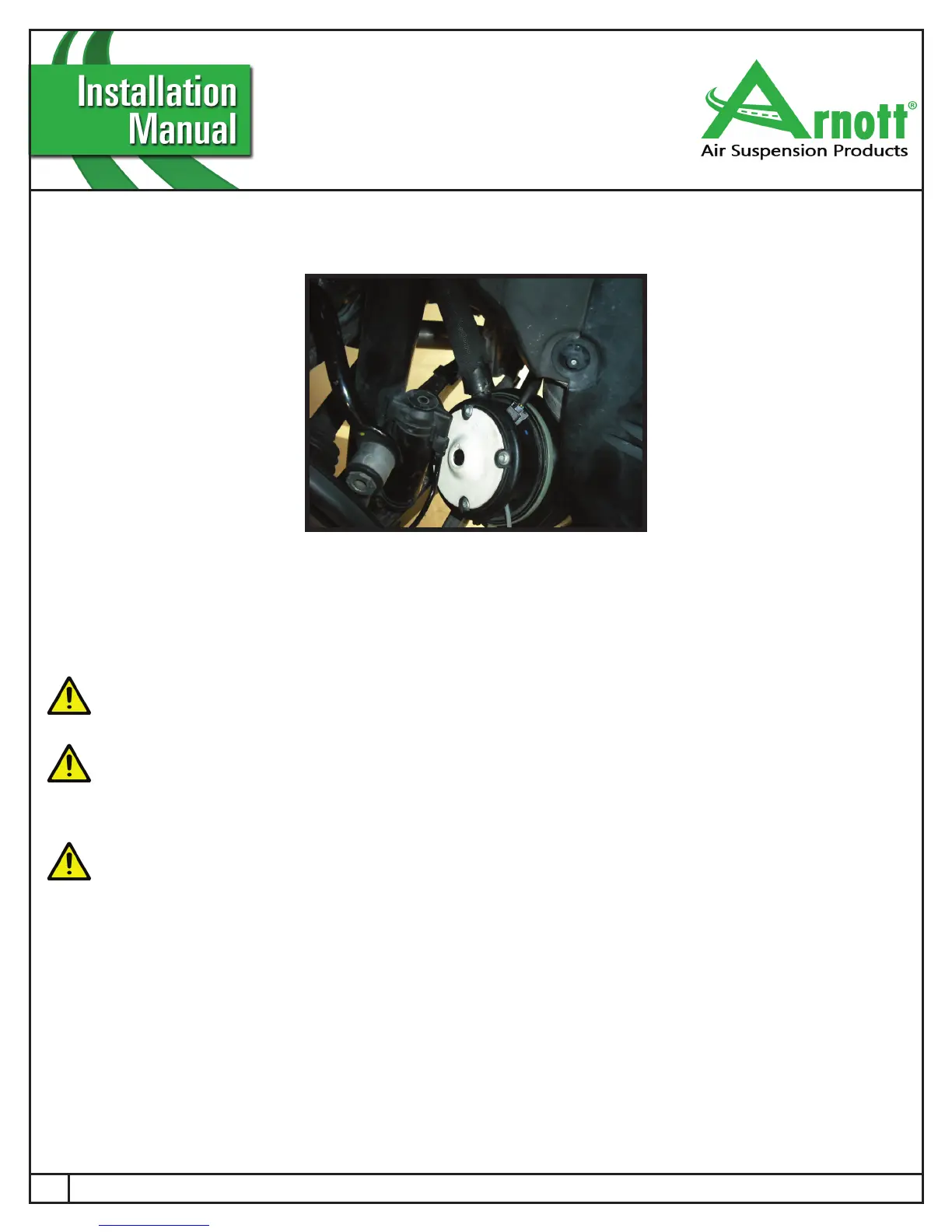

FIGURE 10
11. REMOVAL COMPLETE.
Arnott Air spring(s) contain a solenoid valve. Only the “Mercedes-Benz DAS Star” diagnostic computer software can
inate the air spring(s).
It is recommended to have your vehicle aligned after installation is completed.
