Arnott C-2278 - Electronic Bypass Module Installation; Bypass Module Installation Steps

26
REV 2 11/18/2013
C-2278
C-2278
ARNOTT COIL SPRING CONVERSION KIT
FOR 2002-2009
MERCEDES-BENZ E-CLASS
FIGURE 50-1
FIGURE 50-2
2. PULL BACK THE KICK PANNEL AND REMOVE THE FOAM INSULATION BENEATH. (FIGURE 50-2)

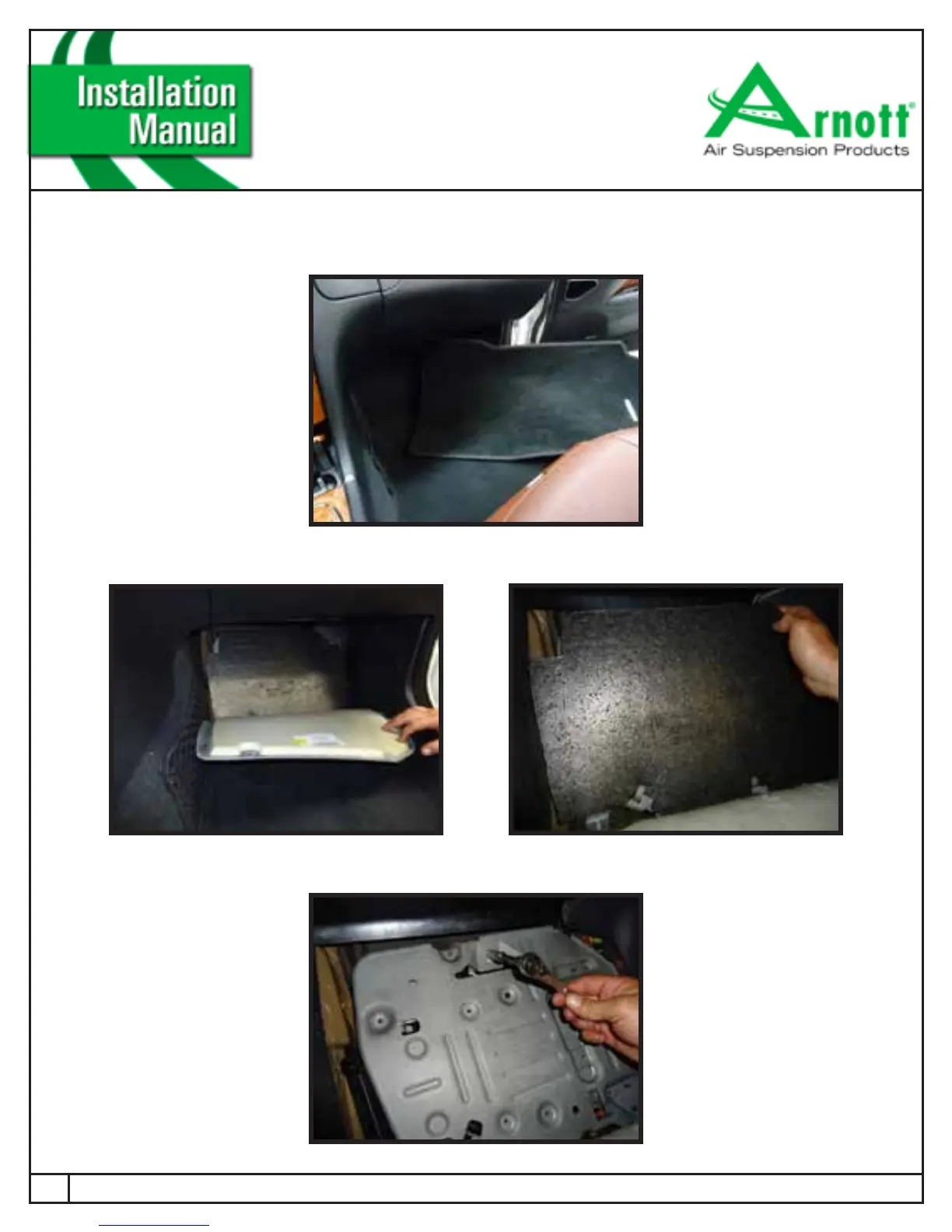

ELECTRONIC BYPASS MODULE INSTALLATION
1. BEGIN BY REMOVING THE FRONT PASSENGER SIDE FLOOR MAT. (FIGURE 50-1)
3. LOCATE AND REMOVE THE THREE NUTS HOLDING THE METAL SHIELD. (FIGURE 50-3)
FIGURE 50-3
