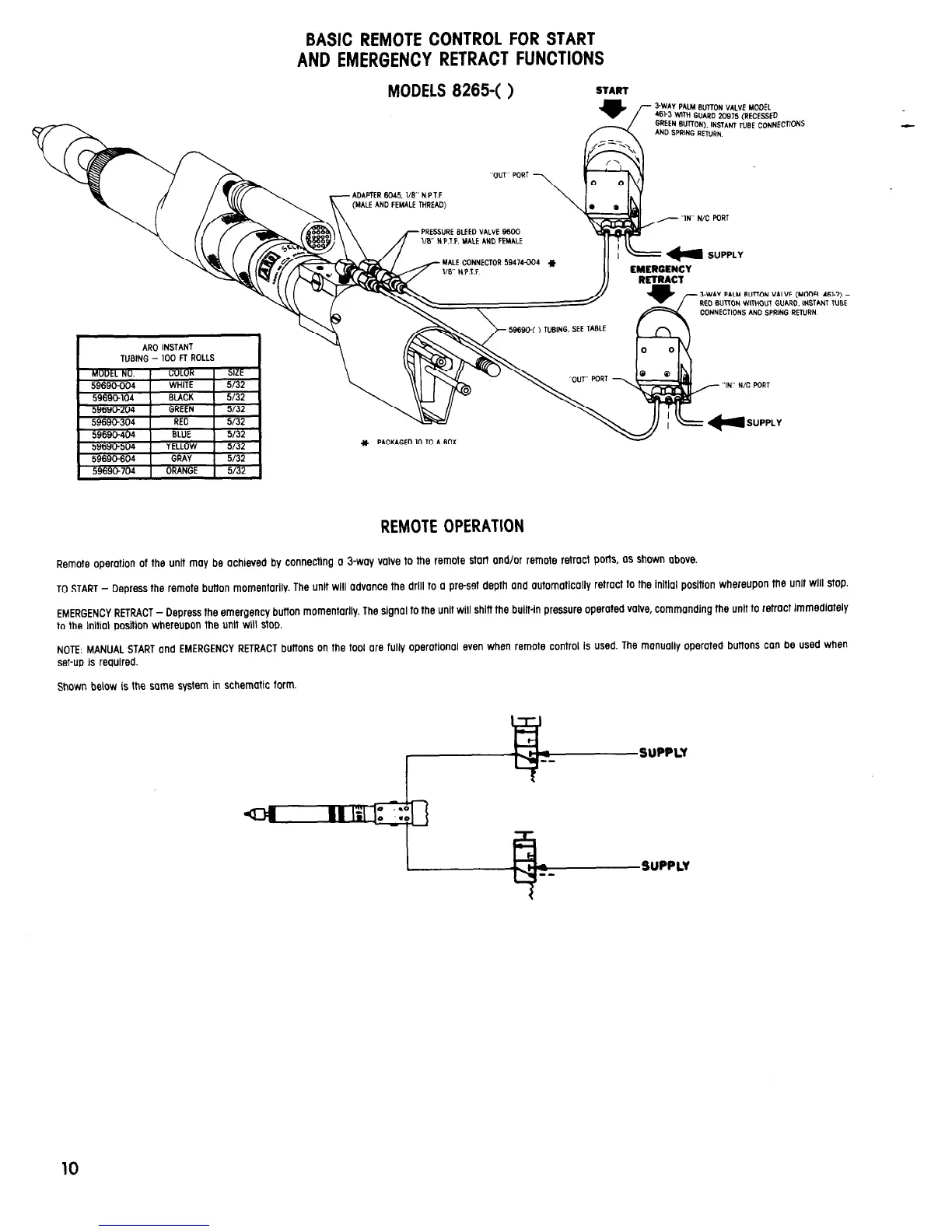

BASIC REMOTE CONTROL FOR START
AND EMERGENCY RETRACT FUNCTIONS
MODELS 8265-( )
START
3-WAY PALM BUTTON VALVE MODEL
461-3 GUARD 20975 (RECESSED
GREEN BUTTON). INSTANT TUBE CONNECTIONS
AND SPRlNG RETURN
PRESSURE BLEED VALVE 9600
1/8" N P T F MALE AND FEMALE
I
PALM BUTTON VALVE (MODEL 461-2) -
RED BUTTON WITHOUT GUARD. lNSTANT TUBE
CONNECTIONS AND SPRING RETURN
“IN” N/C PORT
+
PACKAGED 10 TO A BOX
Remote operation of the unit may be achieved by connecting a 3-way valve to the remote start and/or remote retract ports, as shown above.
TO START - Depress the remote button momentarily. The unit will advance the drill to a pre-set depth and automatically retract to the initial position whereupon the
Unit Will stop.
EMERGENCY RETRACT - Depress the emergency button momentarily. The signal to the Unit will shift the built-in pressure operated valve, commanding the unlit to retract immediately
to the lnitial position whereupon the unit will stop.
NOTE: MANUAL START and EMERGENCY RETRACT buttons on the tool ore fully operational even when remote control is used. The manually operated buttons con be used when
set-up is required.
Shown below is the same system in schematic form.
SUPPLY
10
