- 36 -
PRODUCT IDENTIFICATION

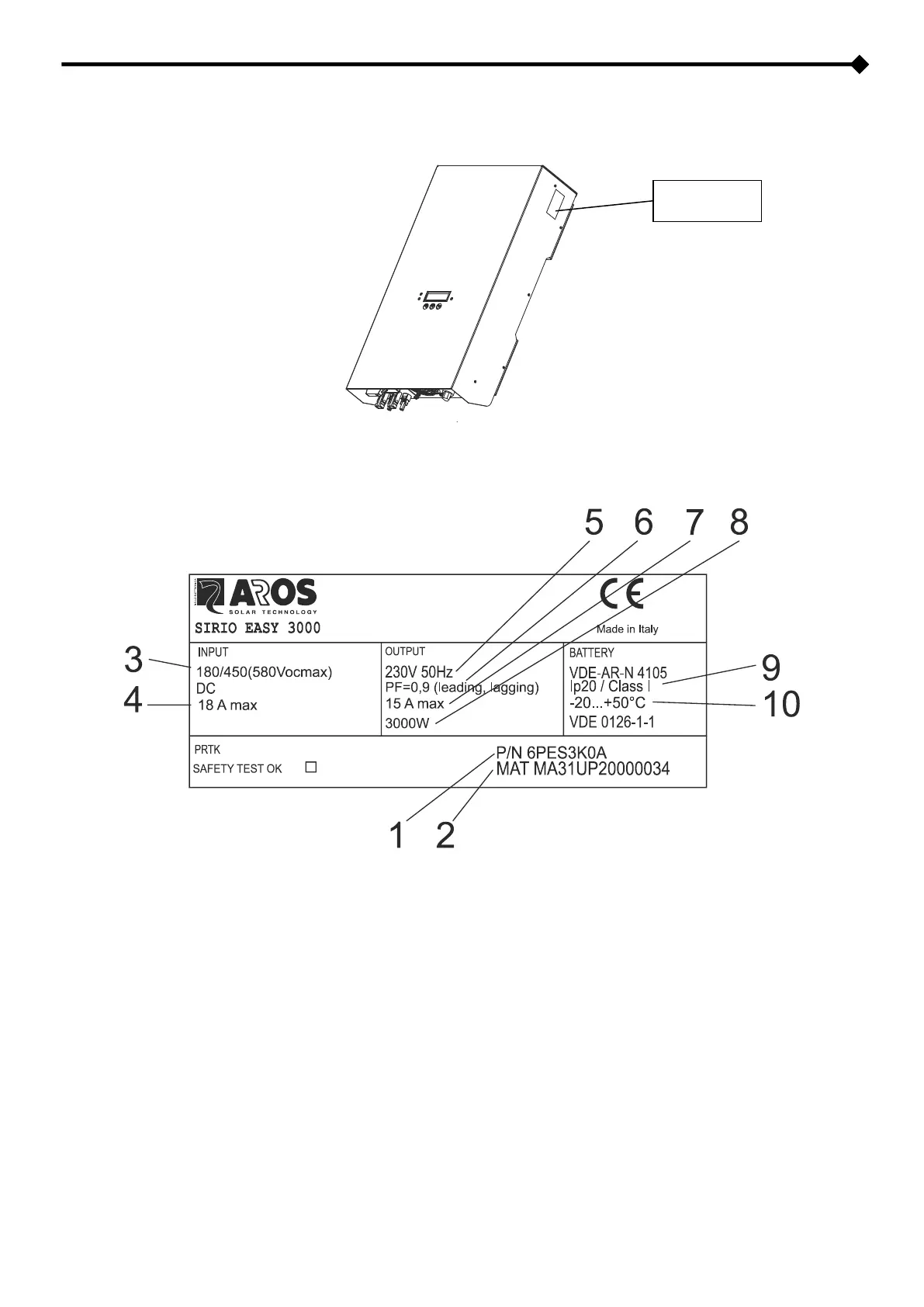

The data plate is located on the right-hand side of the inverter, as seen in the figure. It contains the following:
1. Part Number, the inverter type ID code
2. Serial number: code that uniquely identifies the machine
3. Input voltages: MPP
MIN
/MPP
MAX
(Voc
MAX
)
4. “Maximum input current”
5. Rated grid voltage and frequency
6. Power factor setting range
7. Maximum output current
8. Rated power
9. IP degree of protection/protection against indirect contact
10. Permissible ambient temperature range
