Array Solutions - SAL12/20/30 - Mark II Manual – Rev. 1.5.1 – September, 2018
17
insert to reinforce the tubing at the connection point at the antenna apex, it is flush with the
top section’s end.

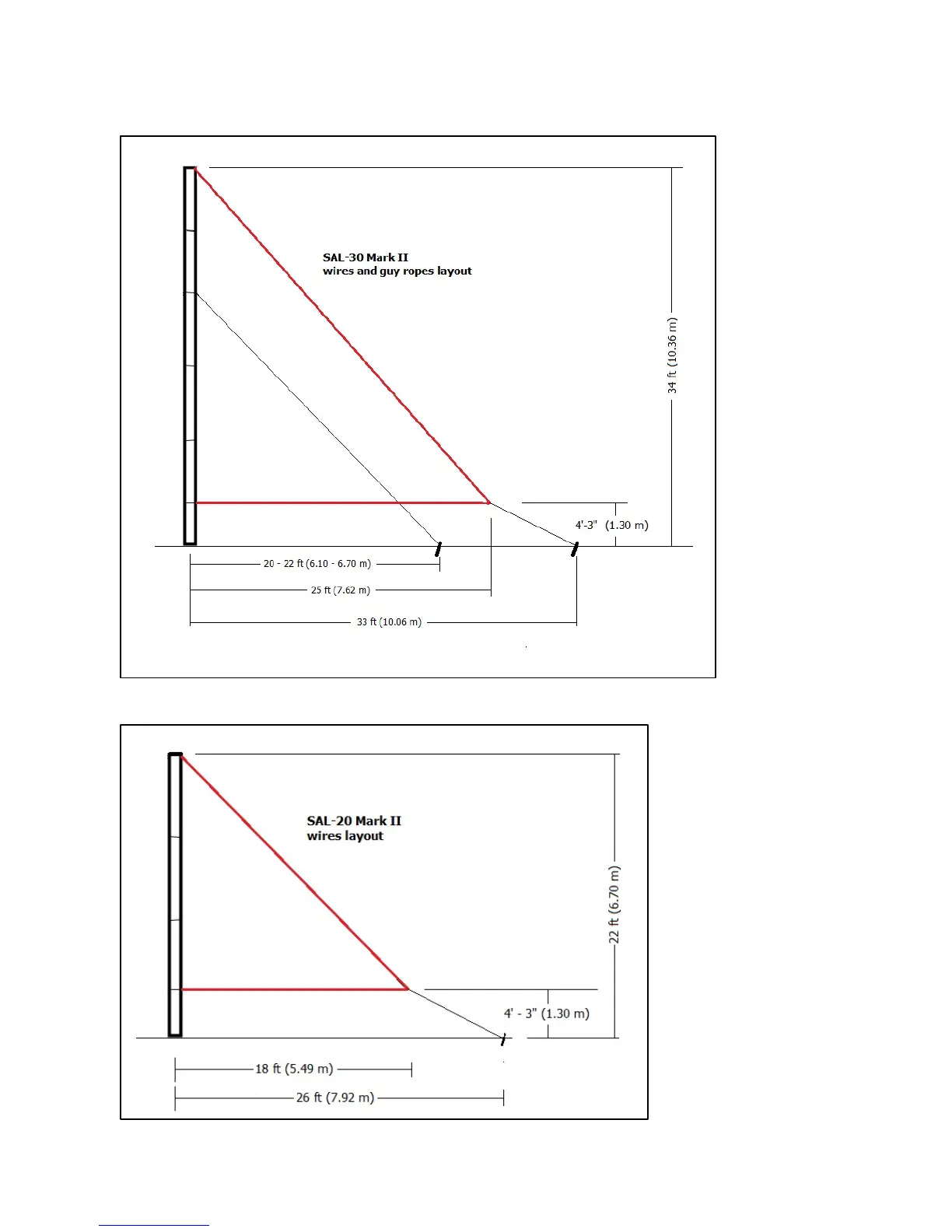

SAL-30 Mark II wire loop section and guy ropes layout. Wires are in red.
