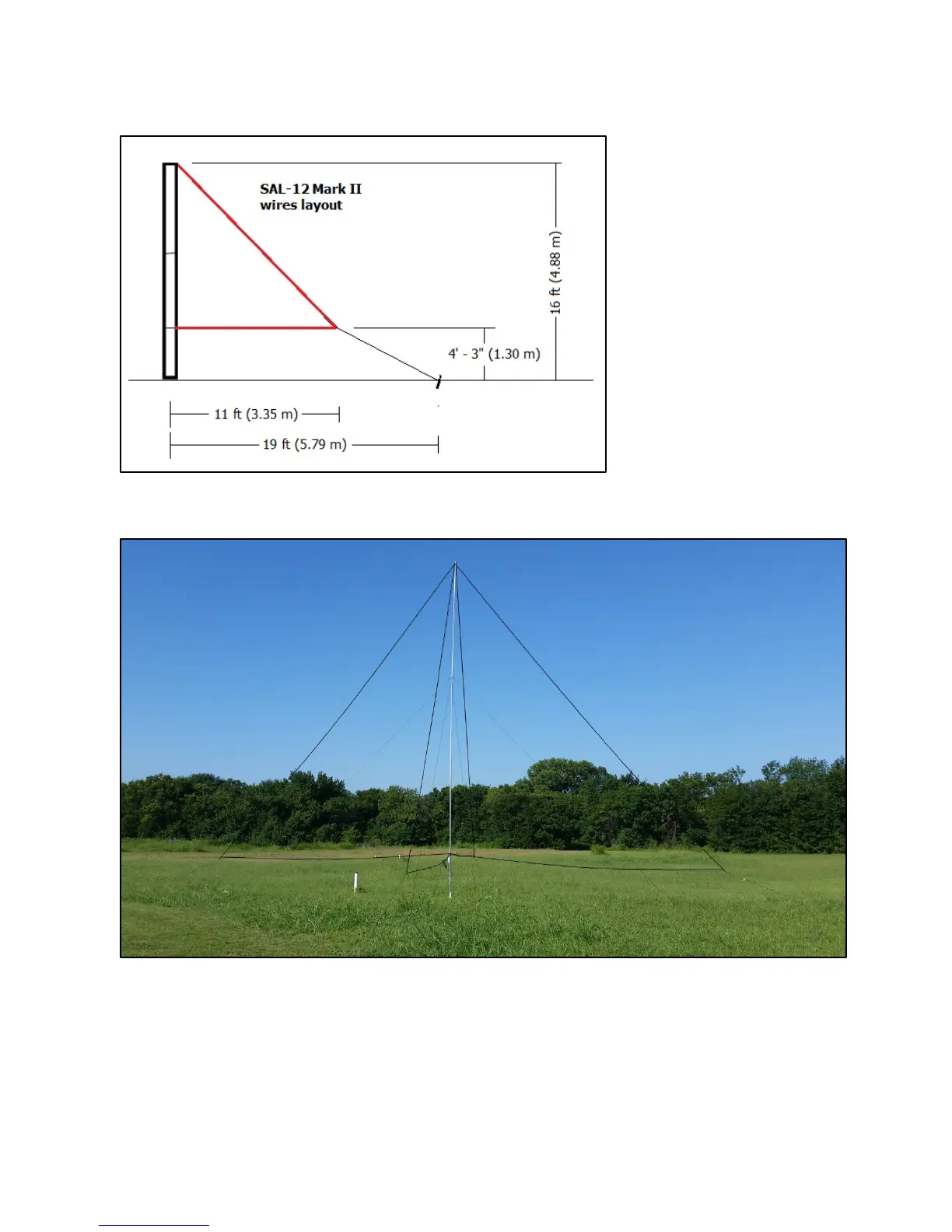

SAL-20 Mark II wire loop section layout.
SAL-12 Mark II wire loop section layout.
View of the SAL-30 Mark-II antenna. The loops’ wires have been edited thicker for clarity.
The thin lines are the guying ropes.
