ARRIMAX – Service Manual Page 17 of 20

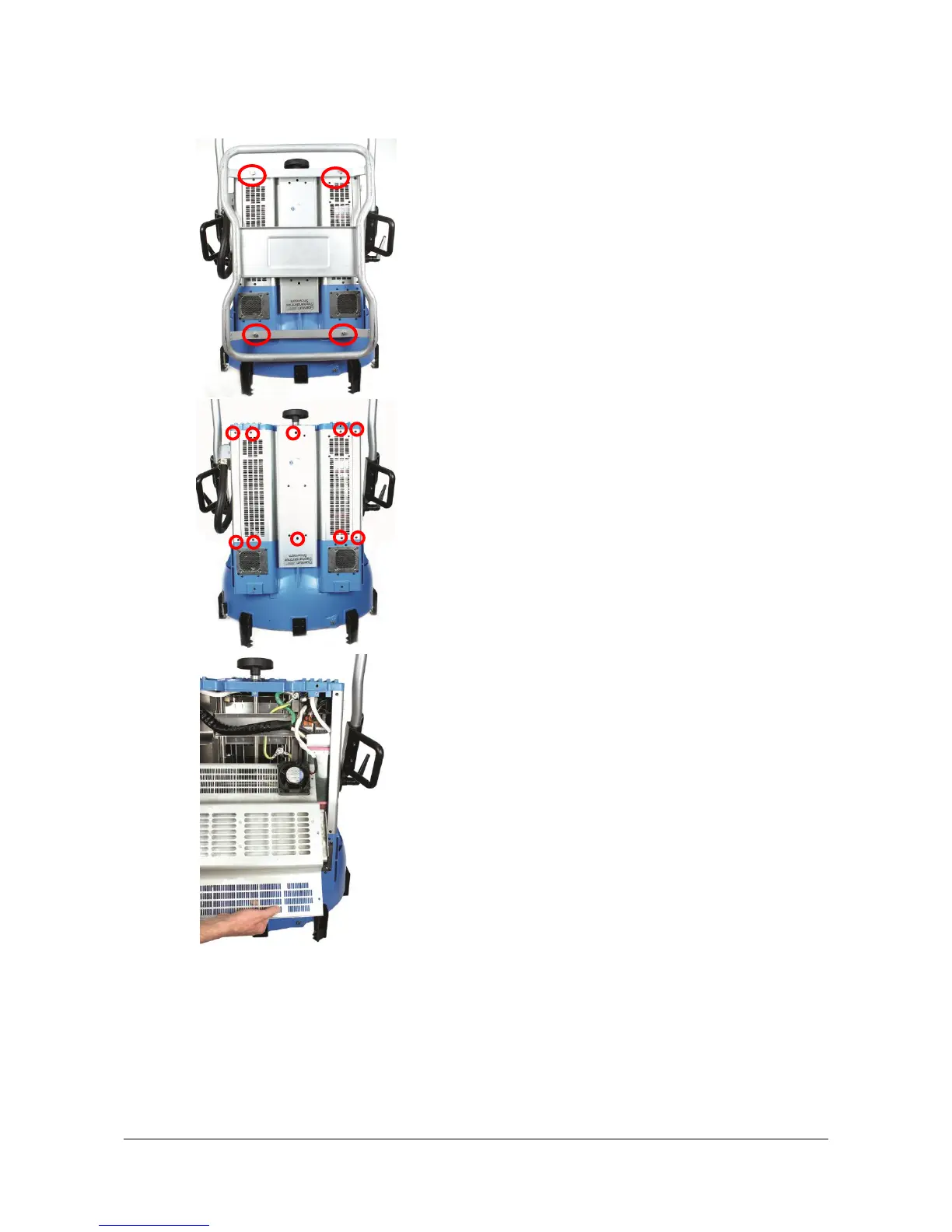

Remove Bottom Plate and Skid

Remove 4 screws (Ratchet 13 mm) to remove

the skid.

Remove 6 screws (Philips PH2.)

4 on the side and 2 in the middle.

The on/off switch, hour counter and fan can be

accessed from this point.

Careful: The on/off switch and hour counter fan

is attached to the cable.

Tip :This also gives you access to the spindle

for maintenance (spray spindle with graphite

spray for smooth movement.)
