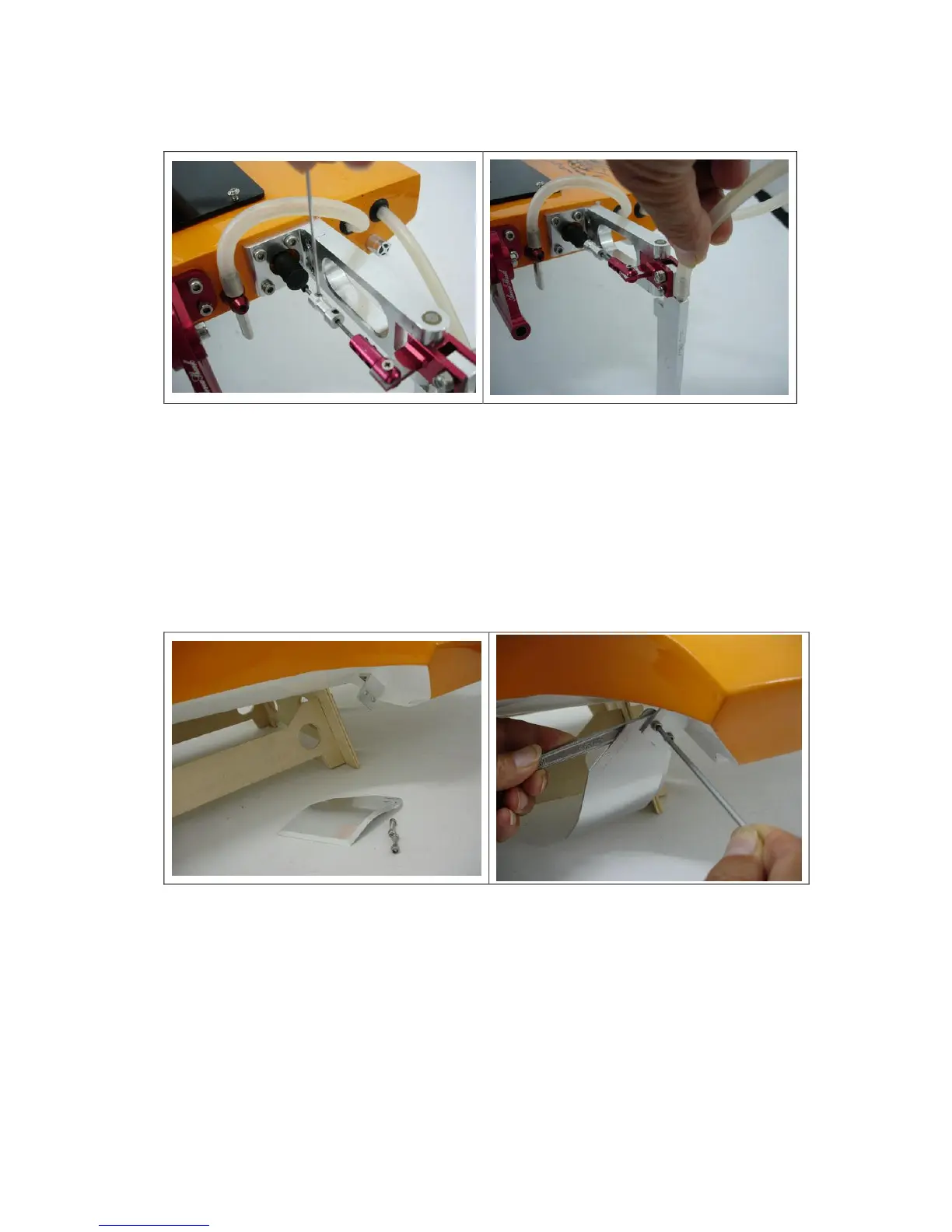

* Use the pushrod connector supplied in the accessory bag to join the section of

pushrodthat came withtherudderto the end ofthe pushrod projecting throughthe

transomviatheblackrubberpushrodsealinthecenteroftherudderbracket.

Note: You might still need to adjust t he length of the pushrod after you install the

steeringservo(we'lldothatlater)inordertocentertherudderfo rpropercontrolwhen

runningyourboat.

*Connectthewater coolingt ubethat projectsthroughthetransomtothenippleon

the topoftherudderblade.

Step 4:TurnFinInstallation AndPerformanceTip

*A curvedhydroturnfinissuppliedintheaccessorybagalongwithmountingbolts

andnuts.

*Onthebacko fthestarboardsponsonisapreinstalledbracket.(Thestarboardside

is the righthand side when looking at the boat from behind it; the sponson is the

lowestpartofthehullthatridesonthesurfaceofthewater.)Slipbotho fthe supplied

boltsthroughthebracketandthroughthet urnfin.Startthenutontothetopboltthen

usea7 mmspannertoholdthenutanda4mmhexwrench toscrewinthebolt.Repeat

forthelowerbolt.Beforefinallytighteningthebolts,positiontheturnfinasshownin

theaboverightphoto.
