Arrow 81100 - Integrating Center Panel; Connecting Panel X to Vertical Structure

Assembly InstructionsStorage Cube
9
Part 1: Main Cabinet
X
O1
F1
O
5
⁄
8
“ Cam Cover x4
c2

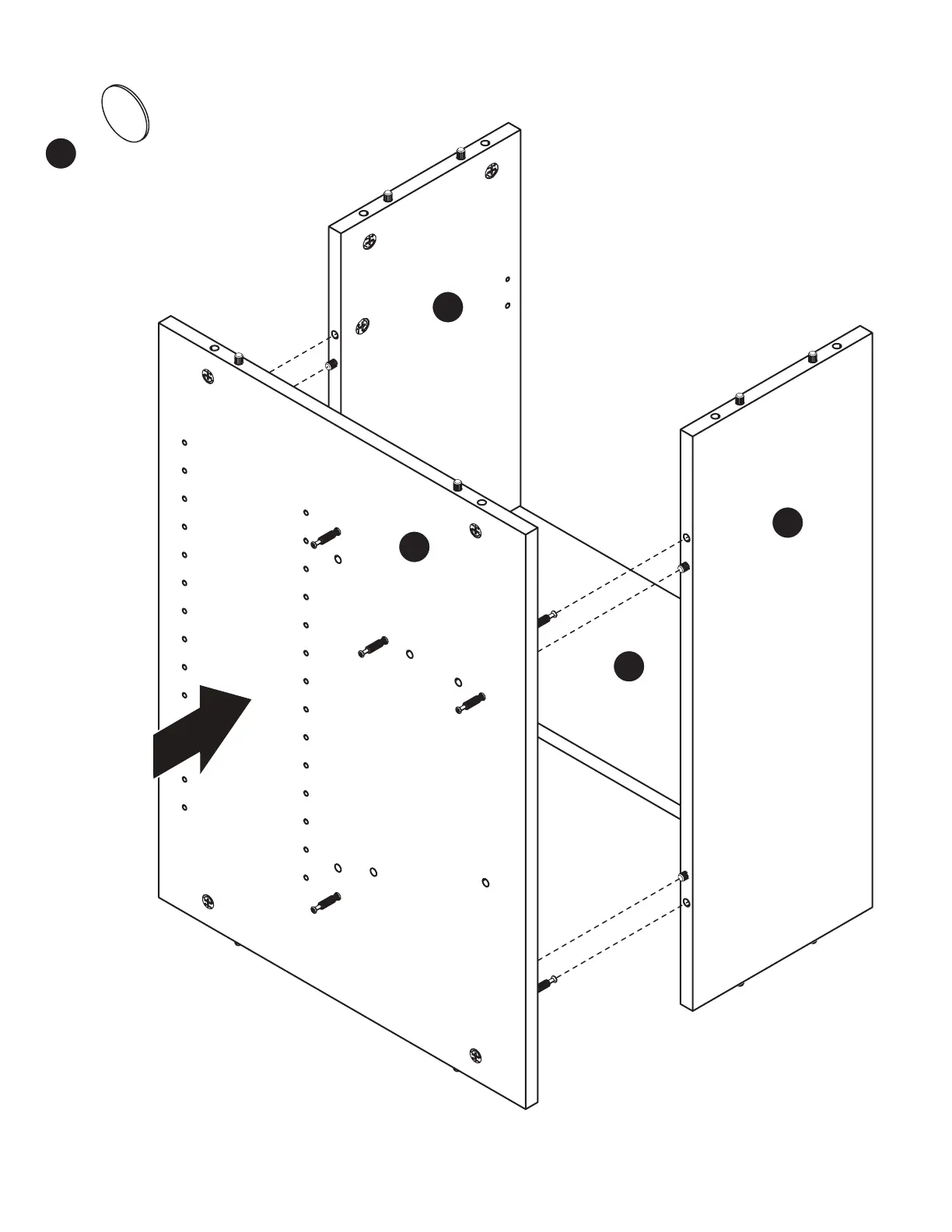

Insert cam bolts on Side 2 of Panel X
into cam locks on Panels O1, F1 and
O.
Tighten cam locks and apply c2 Cam
Covers.
