Arrow ET200BN - Assembly and Operation; Assembly; Loading Nails; Operation

6
ASSEMBLY & OPERATION
ASSEMBLY
1. MAKE SURE YOU HAVE READ ALL SAFETY INSTRUCTIONS.
2. This tool comes completely assembled. There is no assembly required.
LOADING NAILS
Disconnect the tool from the power source when loading brad nails
Tilt the tool or lay the tool flat, so the nails will not drop out while loading

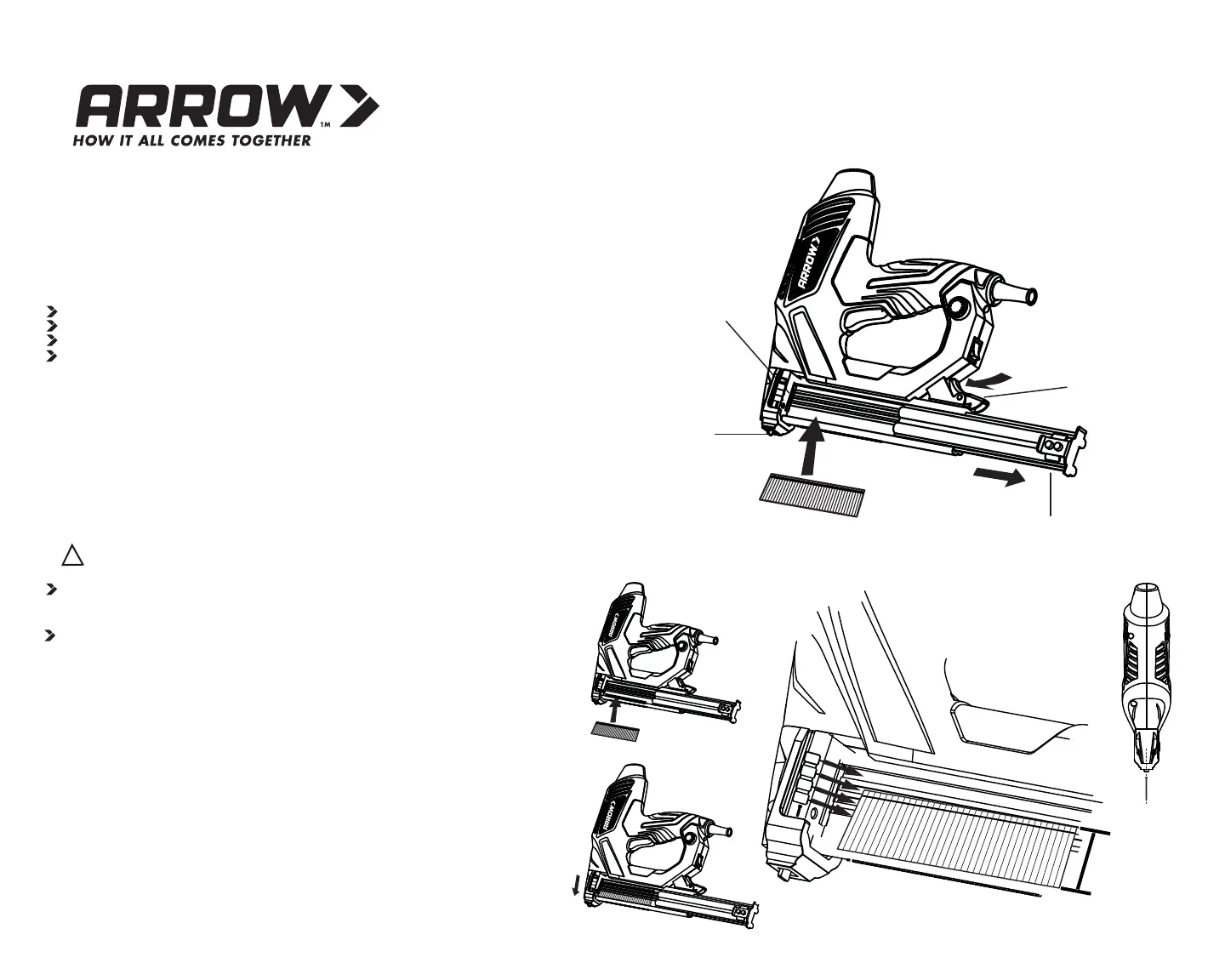

Press lever (A) while pulling slider (B) backwards
Place the nail strip into magazine (C) (maximum capacity 100 nails)
OPERATION
TO OPERATE THE TOOL
First position the contact tip on the work surface without pulling the
trigger. Depress the contact tip until the nose touches the work surface
and then pull the trigger to drive a nail.
Make sure that the nail strip is loaded with the tapered end aligning with
the bottom line of the magazine (C), so the brad nail heads rest into the
groove which corresponds with the symbol of nail length on nailer head (D)
Push slider (B) towards nailer head (D) until it snaplocks
