Assembly InstructionsOLIVIA Sewing Cabinet Page 9

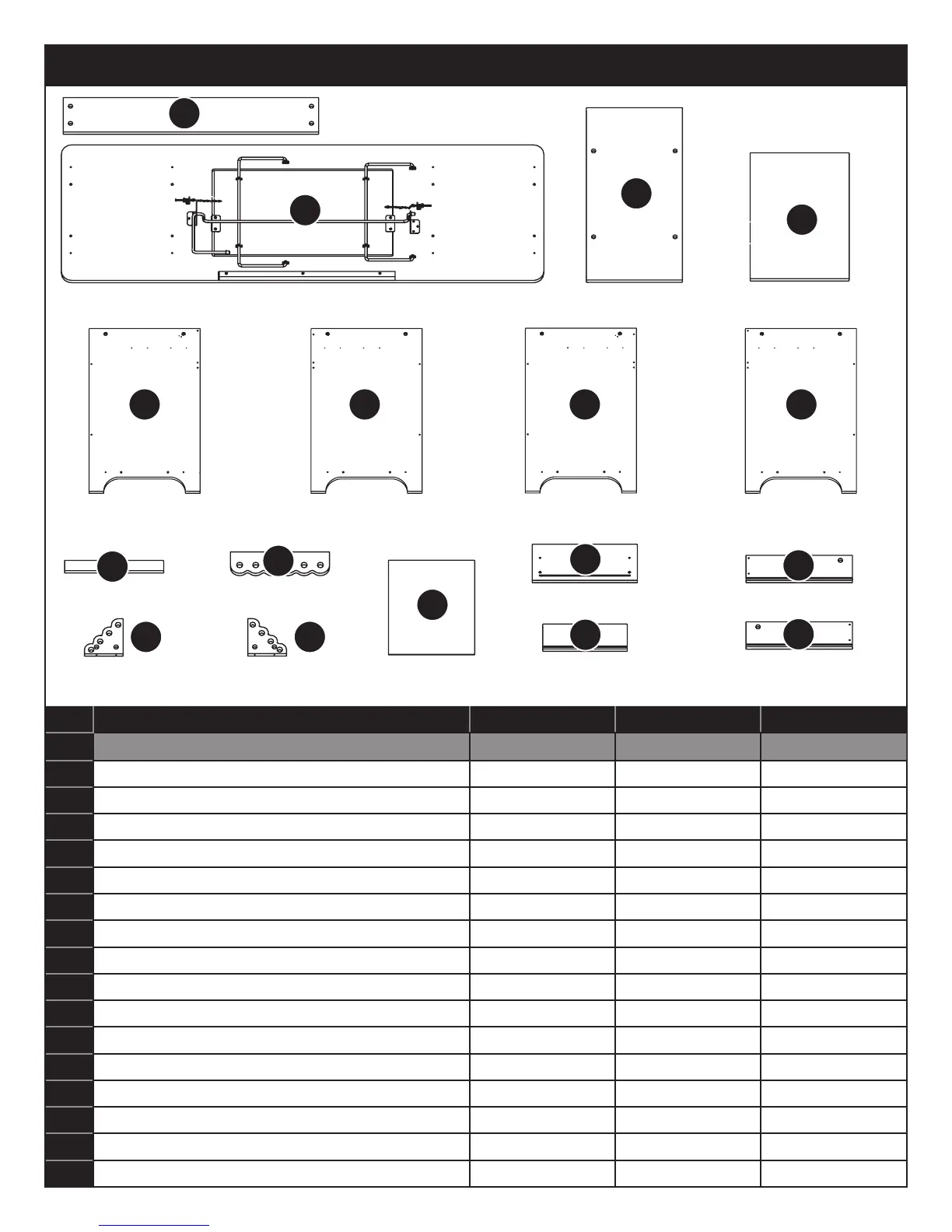

Wood Parts and Part Numbers
Ref. Description Part# Part# Part#
Cabinet Model# 1001 (Crisp White) 1004 (Pistachio) 1009(Blue)
A
Table Top w/ Assembly 002003W 002003P 002003TB
B
Cabinet Connector Panel 002003P 002004P 002004TB
C
Cabinet Left Inside Panel 002005W 002005P 002005TB
D
Cabinet Left Outside Panel 002006W 002006P 002006TB
E
Cabinet Bottom Panel 002007W 002007P 002007TB
F
Cabinet Back Panel 002008W 002008P 002008TB
I
Gingerbread Piece (right and left version) 002009W 002009P 002009TB
J
Straight Gingerbread Piece 002010W 002010P 002010TB
K
Cabinet Side Connector 002011W 002011P 002011TB
L
Cabinet Right Inside Panel 002012W 002012P 002012TB
M
Cabinet Right Outside Panel 002013W 002013P 002013TB
G
Drawer Front 003320W 003320P 003320TB
H
Drawer Bottom 003162 003162 003162
N
Drawer Back 003163 003163 003163
O
Drawer Side Left 003164 003164 003164
P
Drawer Side Right 003166 003166 003166
Cabinet Connector Panel
Straight Gingerbread
Piece
Drawer Back Drawer Side Left
Drawer Side Right
Side Connector
Cabinet Left Outside Panel Cabinet Right Inside PanelCabinet Left Inside Panel Cabinet Right Outside Panel
Gingerbread Piece
Left
Cabinet Bottom PanelCabinet Back Panel
Drawer Front
Drawer Bottom
Table Top with Sewing
Machine Lift Assembly
Gingerbread Piece
Right
B
N
L
M
A
G
H
C
I
D
J
E
F
O
P
K
