Assembly InstructionsOLIVIA Sewing Cabinet Page 8

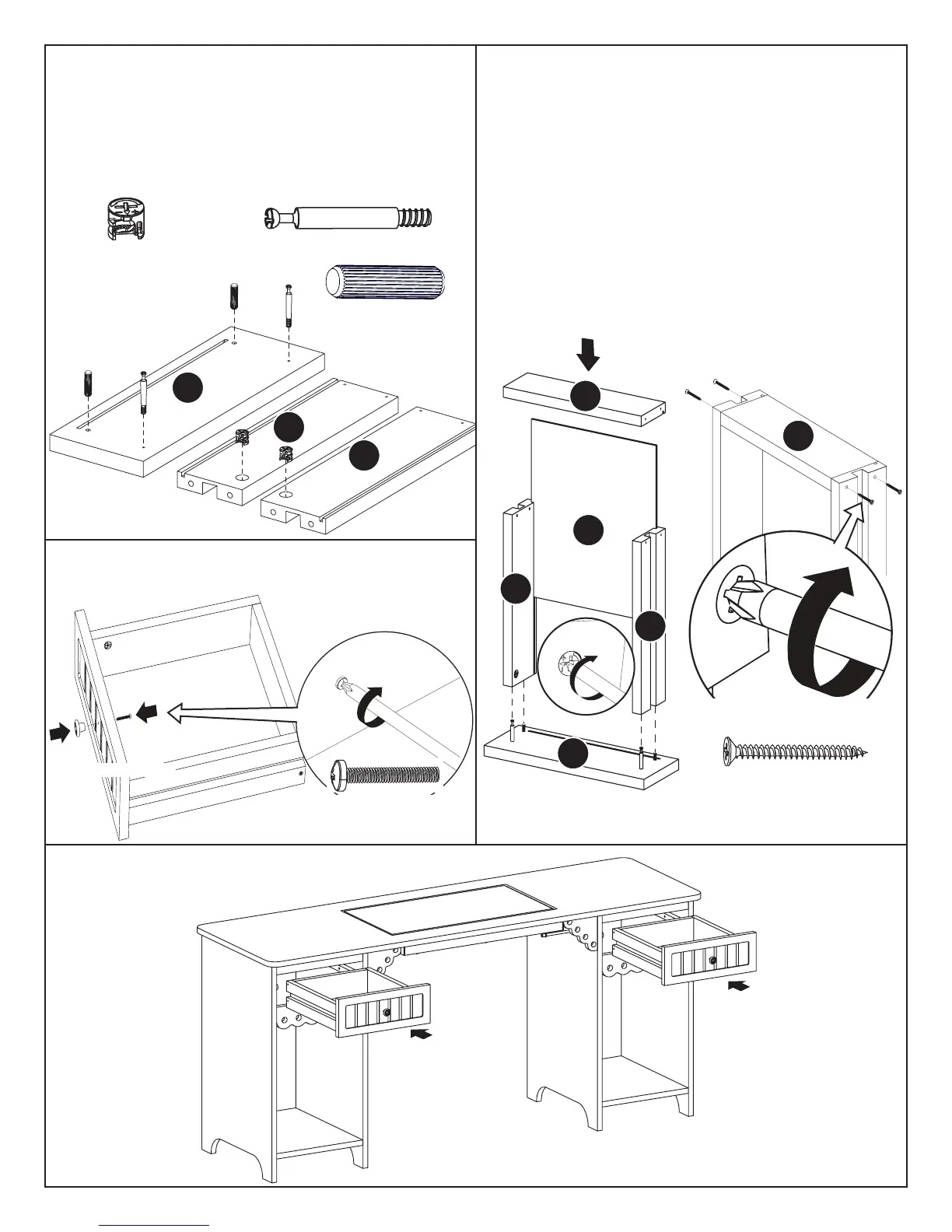

Step 10. Thread Drawer Connecting Bolts (4 total)
into pre-drilled holes and in Drawer Front (G).
Insert 6x30mm Wood Dowels (x4) into each Drawer
Front (G). Install Drawer Cams (4 total) in Drawer
side (Ox1, Px1) by pushing a Cam into each hole
flush with surface (as shown in FIG. 10).
Step 12. Attach the Knob to the Drawer Front (Gx2)
using 8/32x1” Bolt (x2) for Knob (as shown in FIG. 12).
Step 11. Attach Drawer Sides (O,Px2) to Drawer
Front (Gx2), guide Connecting Bolts into holes in
Drawer Sides (O, P), turn Cams to locked position.
Align Drawer Bottom (Hx2) grooves in Sides with
Drawer Bottom groove In Drawer Front (as shown in
FIG. 11).
Slide Drawer Bottom (Hx2) along grooves on the
Sides Into the Groove In Drawer Front (Gx2).
Attach Drawer Back (Nx2) to Drawer Sides (O,Px2)
with the #10x1-1/2” Flathead Screw (x8) (as shown
in FIG. 11A).
FIG. 10.
The Drawers may now be insatalled into your cabinet.
Drawer Connecting Bolts x4
Drawer Cams x4
#10x1-3/8”
Door Knob Bolt x2
FIG. 12.
Door Knob x2
x2
x2
FIG. 11A.
FIG. 11.
#10x1-1/4”
Flathead Screw x8
Wood dowel
6x30mm x4
180°
