Assembly InstructionsOLIVIA Sewing Cabinet Page 13

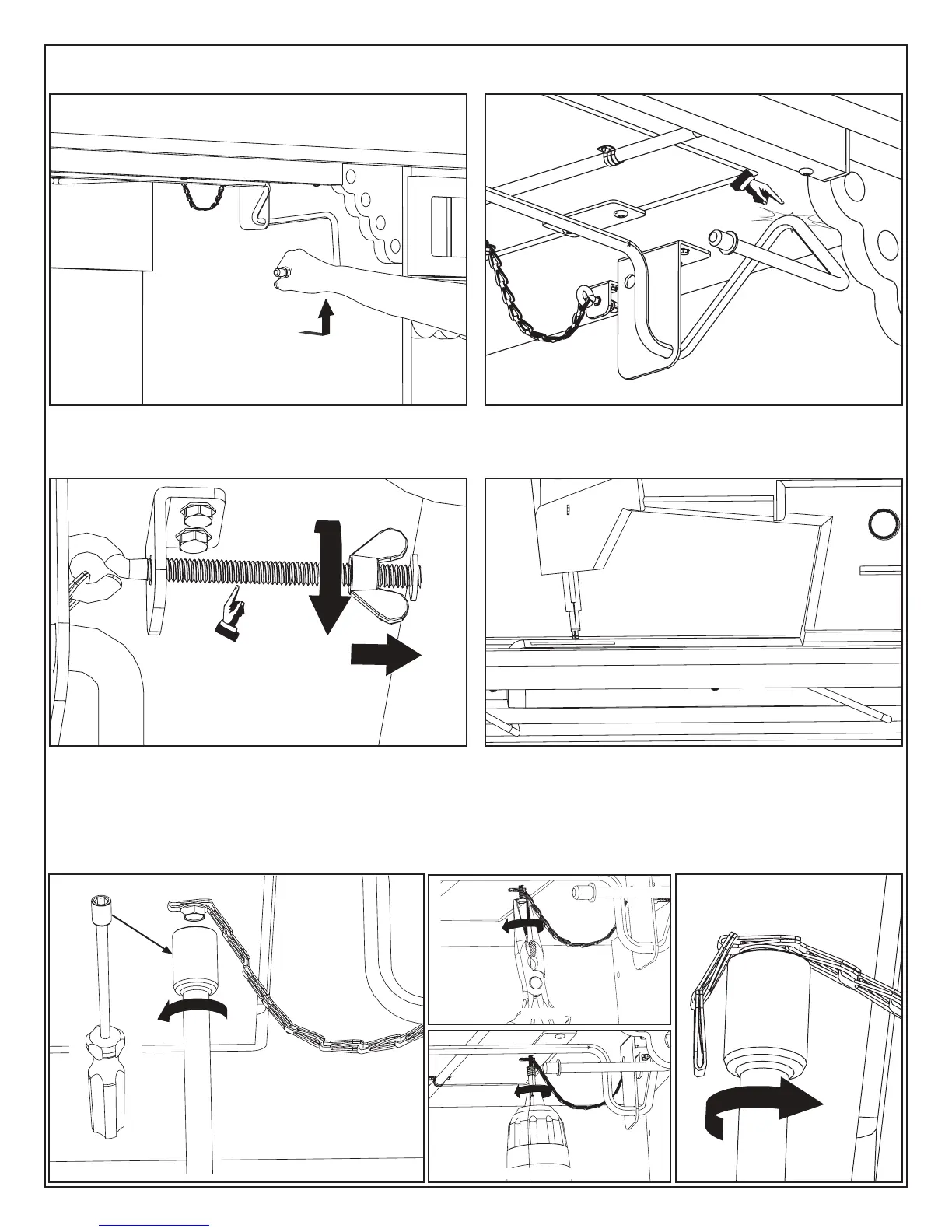

A. TO LOWER PLATFORM: Remove your machine from the platform and pull the handle forward to lock
the platform in the up position.
B. Begin to loosen the bolt on the Eye-Hook located at the end of the chain under the top surface, until
you achieve the proper height for your sewing machine. You may need to adjust this position several
times before finding the correct position for your bolt.
C. TO RAISE PLATFORM: Perform the same steps as above in A and B, but instead of loosening the bolt
tighten the bolt.
If after completing the above steps your sewing machine’s sewing surface is still not flush you may need
to shorten the chain by moving the screw or call us for additional length of chain for taller machines.
Eye-Hook
1/4” Hex Socket
Electric Screwdriver
Pliers
2 Links = 1”
To Next Page
