Arrow SBS64 - Step 1: Floor Assembly

12

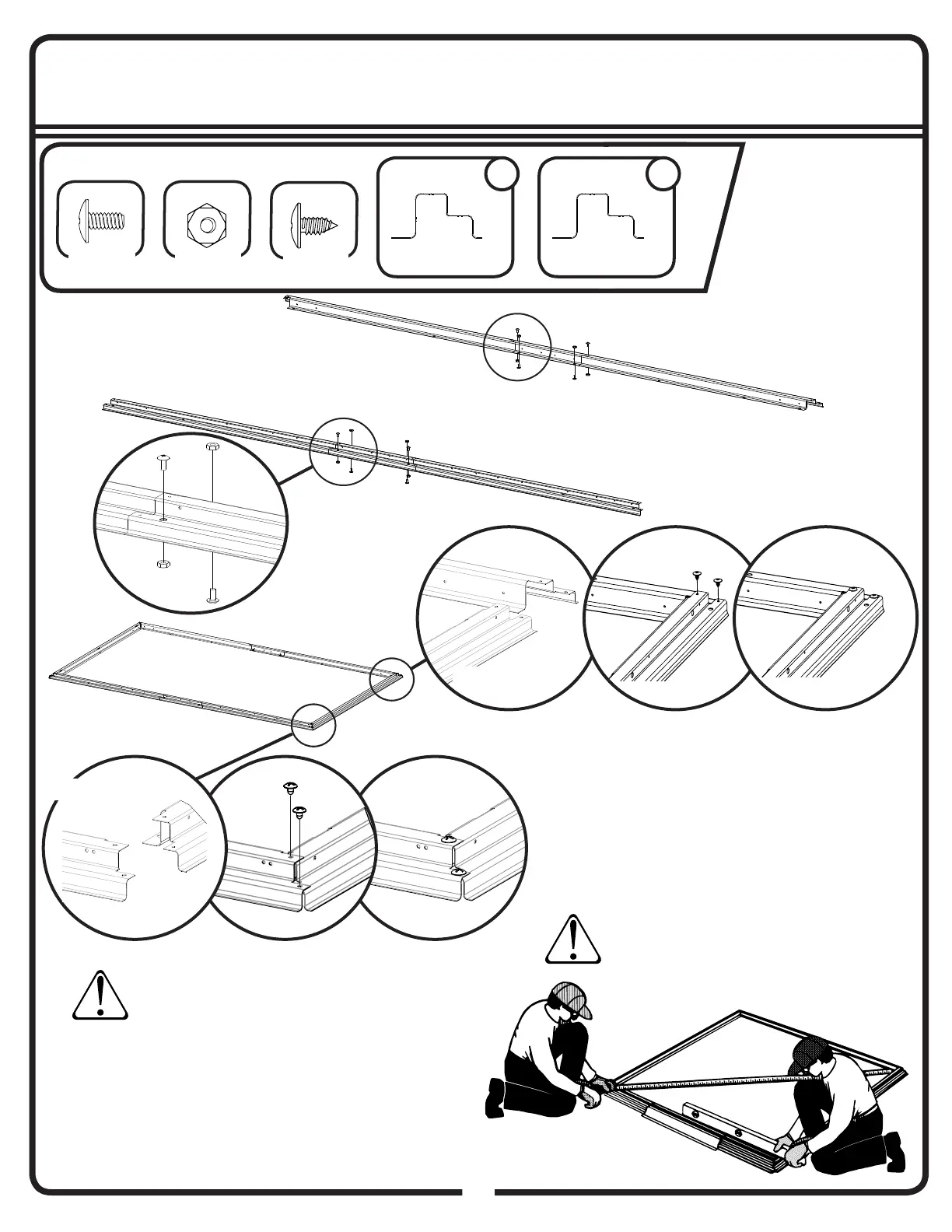

Step 1: Floor Assembly
The Floor Frame must be BOTH square AND
level or the holes will not line up properly.
FRONT
Front Corner
Back Corner
When diagonal measurements
are equal, the Frame is square.
12FX
Front-Rear
Floor Frame
4
11113
11114
11113
11114
11113
11114
11114
11113
11113
11113
11113
11113
11113
11113
11113
65004
(QTY: 8)
65923
(QTY: 8)
65103
(QTY: 8)
You will need for this page:
Side
Floor Frame
2
11114
