Arrow SBS64 - Page 18

18

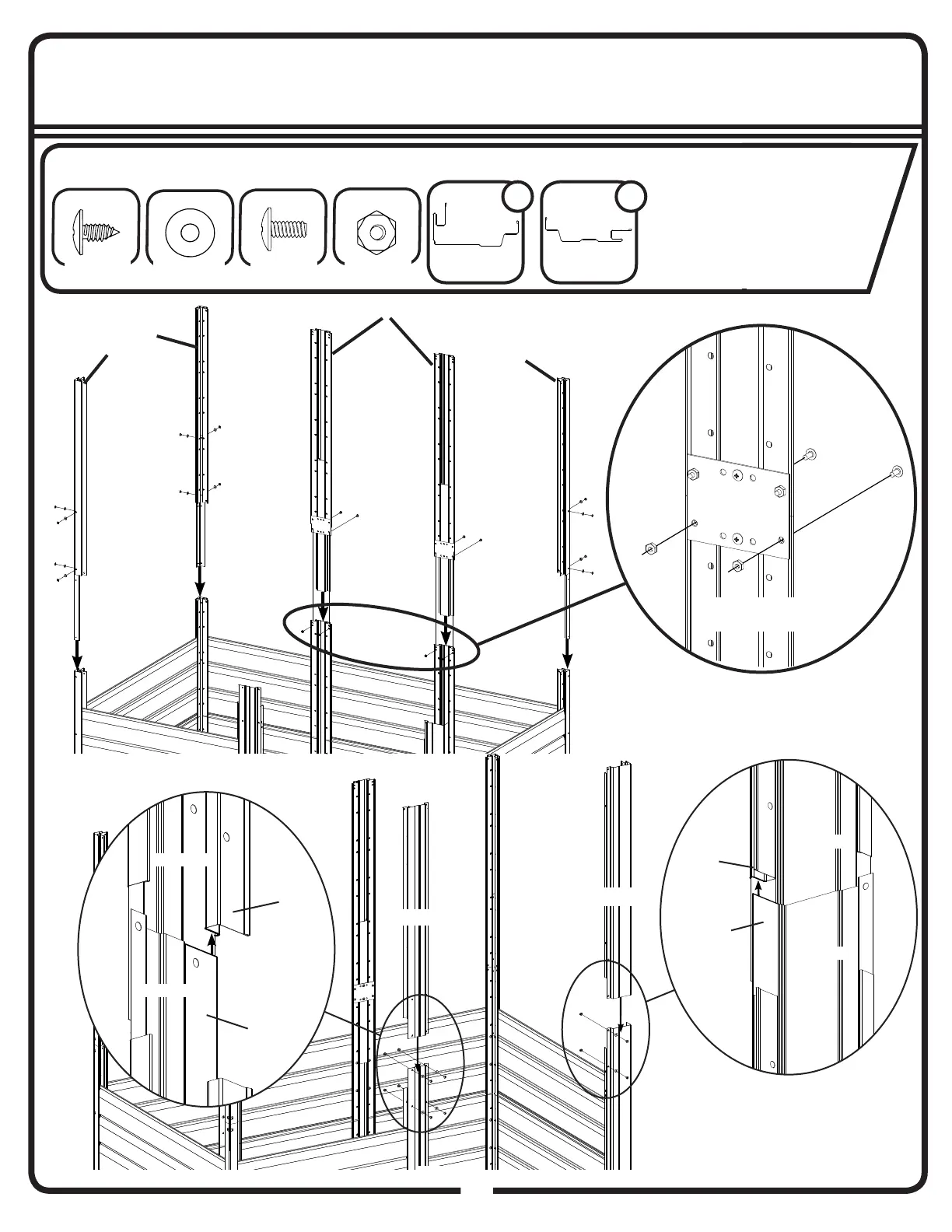

Step 3: Top Wall Assembly
You will need for this page:
18FXa
11120
1
Right Door
Jamb Top
11122
1
Left Door
Jamb Top
66646
(QTY: 18)
65923
(QTY: 10)
65103
(QTY: 10)
65004
(QTY: 12)
Front
Front
11122
11120
11122
80137
INSIDE
INSIDE
11120
80135
INSIDE
INSIDE
NOTE: TIGHTEN AT
THIS TIME
(3) Corner Post Assembly
(2) Splice Post Assembly
Splice Post Assembly
Corner Post
Assembly
Corner Post
Assembly
