Arrow T50PBN - How to Load Staples and Nails

HOW TO LOAD STAPLES & NAILS
3
BACKTO
INDEX

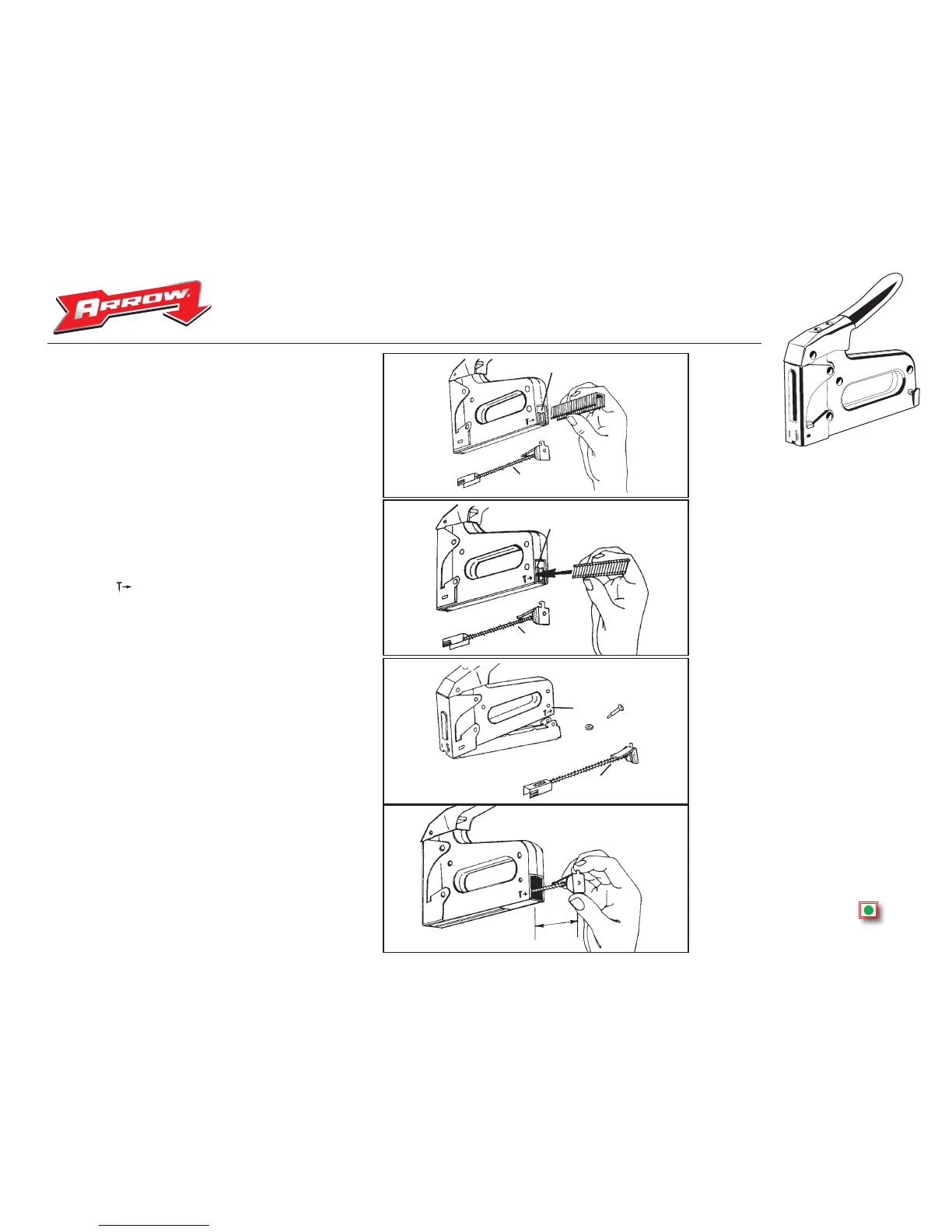

TO LOAD STAPLES
1. Remove pusher-BN43 rod from machine ( FIG.#1 ).
2. Insert strip of staples into magazine-BN41.
3. Replace pusher rod-BN43.
TO LOAD NAILS
1. Remove pusher rod from machine - BN43 ( FIG.#2 ).
2. Insert strip of nails into left channel of magazine.
(side with: )-BN41.
3. Replace pusher rod-BN43.
TO CLEAN STAPLE CHANNEL
1. Remove pusher rod “A”( FIG.#3 ).
2. Remove screw & nut from hole “B”.
3. Remove entire magazine from housing.
How to determine staple shortage for refill.
1. Press latch to release pusher rod.
2. Lightly push rod forward until it stops. Visible projected
part of rod indicates amount of staples remaining in track.
BN43
BN41
BN41
BN43
A
B
