2 Rest bottom tab (large hole) out-
side floor frame. Do not fasten tab at
this time. Repeat procedure for the
remaining studs around the building.
3 Fasten front wall channel into
position behind corner post and door
jamb. Fasten using three screws.
●●
●●
● 9344 Siding Stud (10)
●●
●●
● 9365 Front Wall Channel (2)
● Parts Needed For ●
Studs/Front Channel
Step 10
SX23
23
DO NOT FASTEN TAB
AT THIS TIME
LARGE HOLE
9365

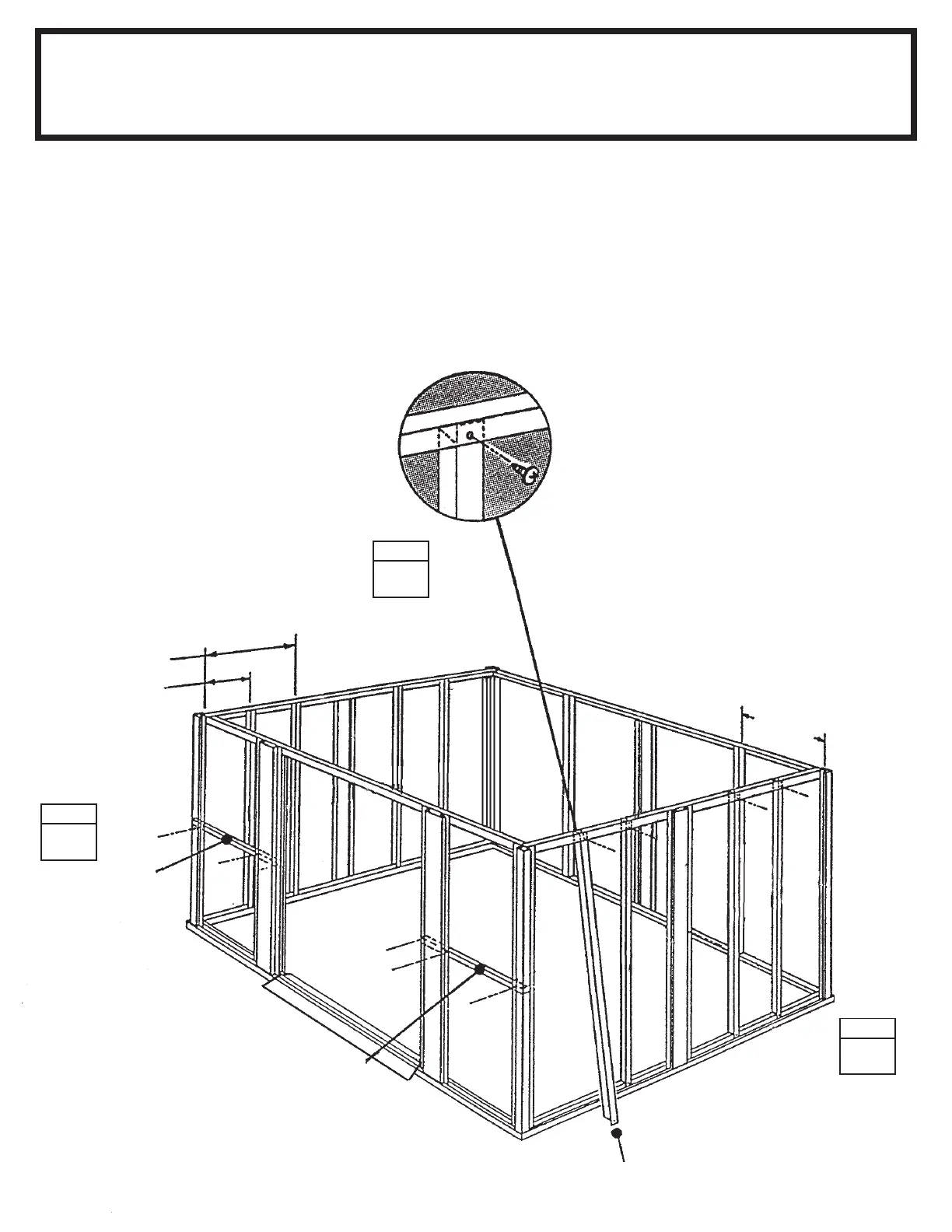

The studs provide a surface for at-
taching the siding panels.
1 Following dimensions, measuring
from the ends of angles place 2 studs
between each corner and splice post
on the sides and 1 on the rear of
building. Position stud inside top
angle and fasten with a screw at the
lower hole.
9365
1
STEP
2
STEP
3
STEP
FASTEN STUD AT
LOWER HOLE
FRONT
47 9/16" (121 cm)
21 15/16" (56cm)
29 3/16"
(74cm)
