Assembling the 120 Reels

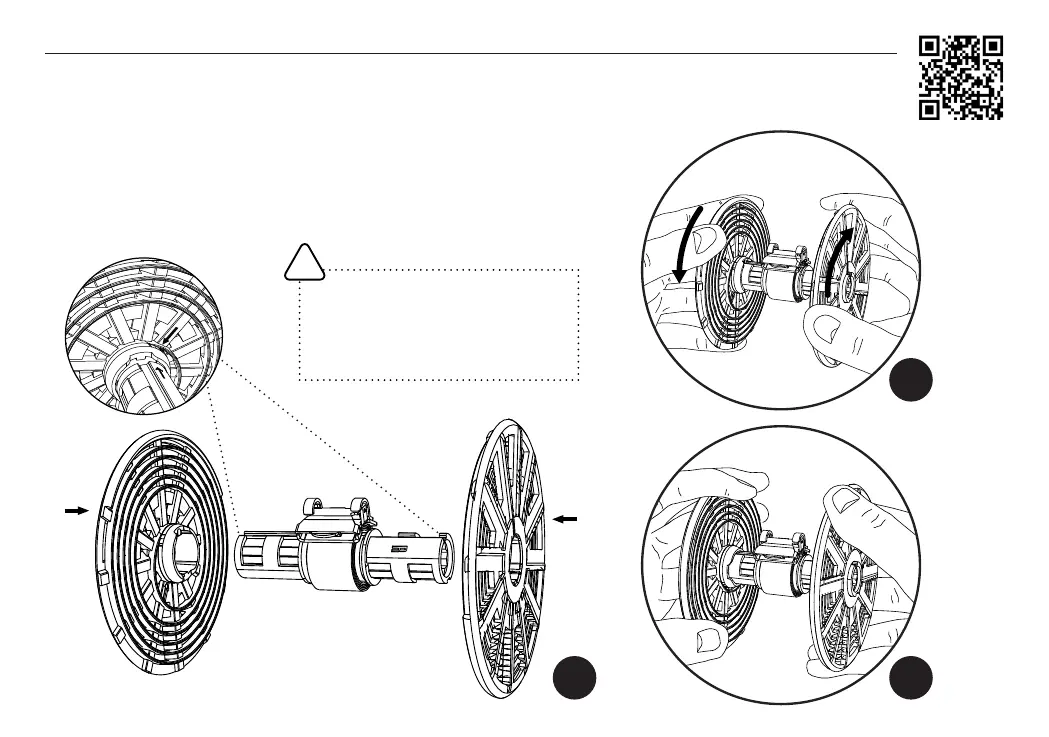

To assemble the 120 Reels, L and R symbols on the back of the reels must be aligned with the
ones on the hub. Once you have inserted the reel from the correct side, the arrow on the reel
and the arrow on the hub must be aligned. Now, push until it coincides with the rst slot; to
lock it, rotate the two reels in the opposite direction as shown in the picture. You will hear the
reel locking aer clinging one dentel. To disassemble the reels, proceed backwards.
R
R
L
L
VIDEO - 7
1
3
2
You can easily recognize the right assembly
position by checking the arrows alignement:
in the right position the reel can be smoothly
inserted, in the wrong opposite position it is
instead much harder to insert.
!
