| Contents - ASSEMBLING REELS 135 |

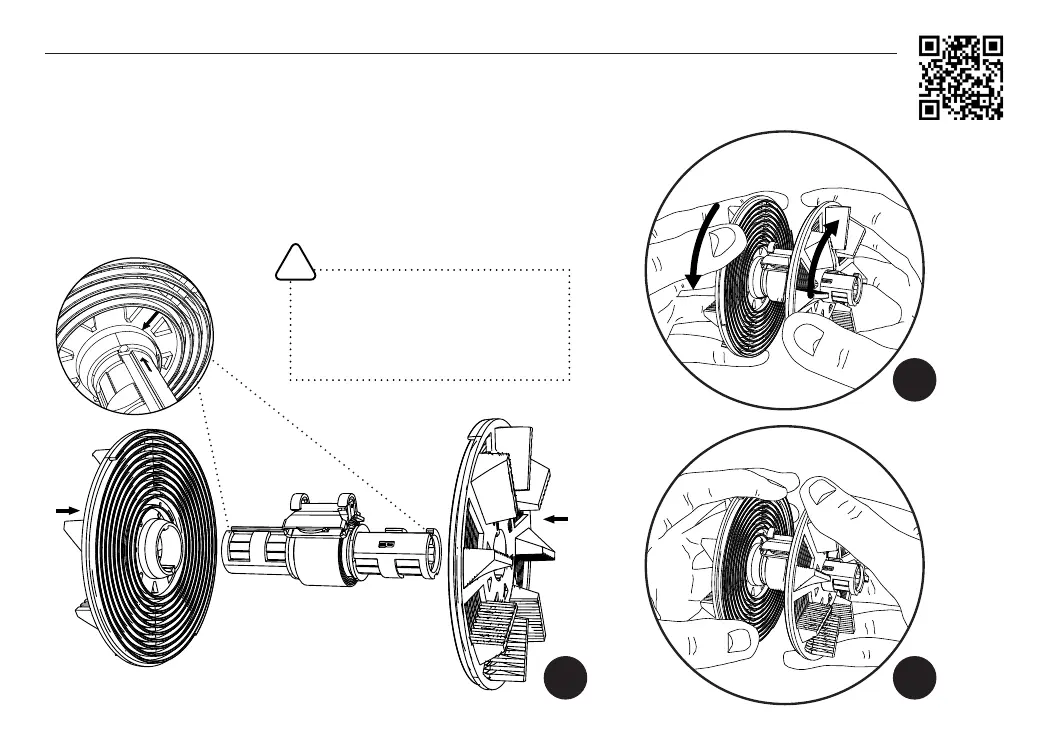

Assembling the 135 Reels
To assemble the 135 Reels, L and R symbols on the back of the reels must be aligned with
the ones on the hub. Once you have inserted the reel from the correct side, the arrow on
the reel and the arrow on the hub must be aligned. Now, push the reel to the end, until it
touches the hub’s central pivot. Finally, you must lock the reel by rotating the two reels in
the opposite direction as shown in the picture. You will hear the reel locking aer clinging
one dentel. To disassemble the reels, proceed backwards.
R
R
L
L
VIDEO - 6
1
3
2
You can easily recognize the right assembly
position by checking the arrows alignement:
in the right position the reel can be smoothly
inserted, in the wrong opposite position it is
instead much harder to insert.
!
