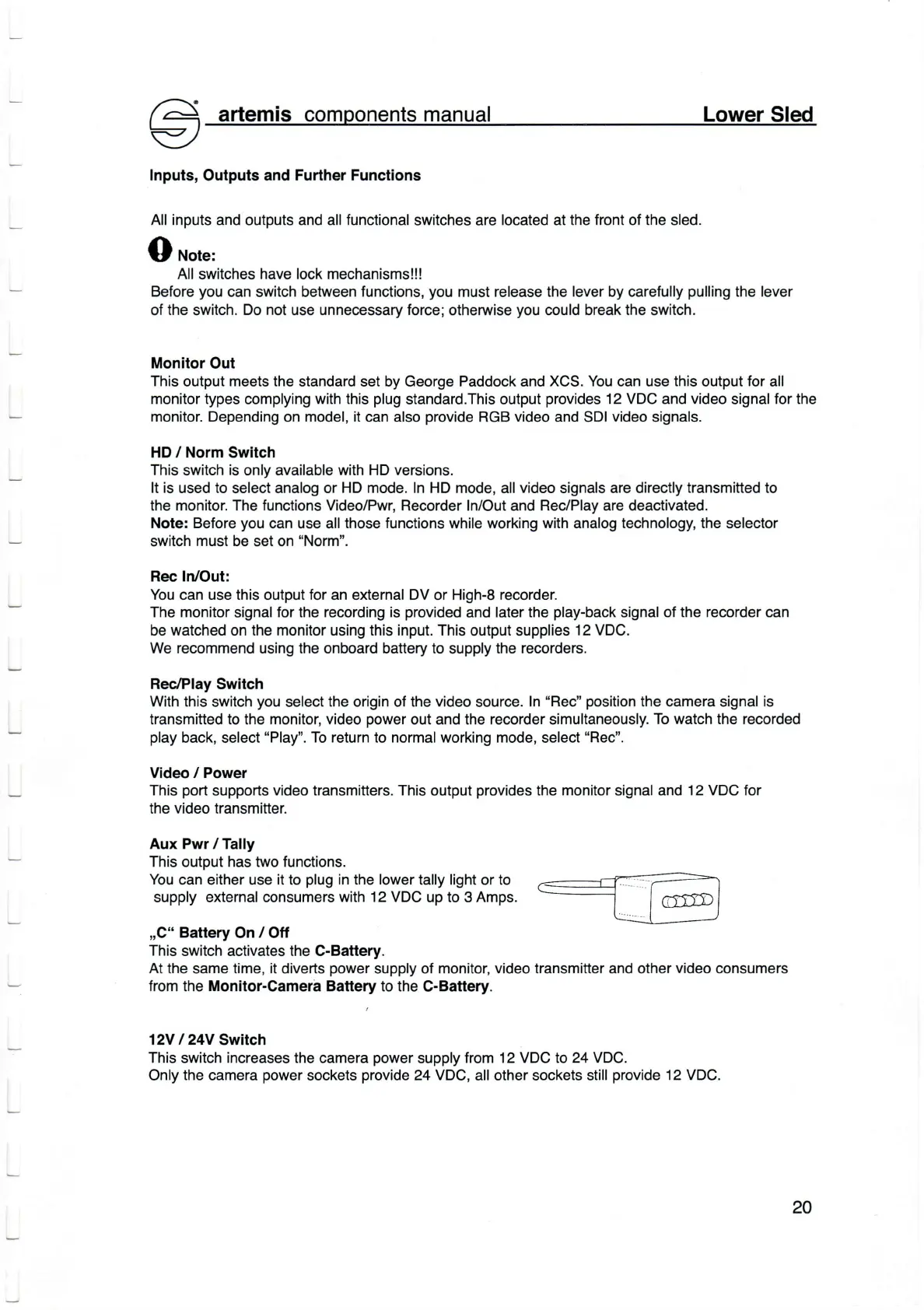

Inputs,
outputs and
Further Funсtions
Al| inputs and outputs and a|| funсtiona|
switсhes are
Ioсated at the front of the s|ed.
O
*o,",
A||
switсhes
have Ioсk meсhanisms!!!
Before
you
сan
switch between
funоtions,
you
must re|ease
the |ever by
сarefu||y
pul|ing
the |ever
of
the
switch.
Do not
use unneсessary
force;
otherwise
you
сou|d
break
the switch.
Monitor
Out
This
output
meets
the standard set by George Paddoсk and
ХCS. You
сan use
this
output
for
a||
monitor types
сomp|ying
with this
p|ug
standard.Тhis output
provides
12 vDс and video
signa|
for the
monitor. Depending
on
mode|, it
сan also
provide
RGB
video
and SDI
video
signa|s.
HD / Norm Switch
This
switсh
is on|y avai|ab|e with HD versions.
lt is used to seIeсt ana|og or HD mode. ]n HD mode, a|| video signals are direct|y
transmitted
to
the monitor. Тhe funсtions Video/Pwr, Reсorder In/out and Reс/P|ay are deaсtivated.
Note: Before
you
can use aIlthose
funсtions
whi|e working
with anaIog teоhnology, the
seIeсtor
switсh
must be
set on
..Norm''.
Reс
lry'out:
You сan use this
output
for an
externa|
DV
or High.8
reсorder.
The monitor signa| for the reсording
is
provided
and Iater the
play-baсk
signa| of
the reсorder
сan
be
watсhed
on
the monitor
using
this input. This
output supplies
12 vDс.
We recommend using the
onboard
battery to
supp|y
the reсorders.
Reс/Play Switch
With this switсh
you
seleоt
the origin of the video
sourсe.
|n
..Reс''
position
the сamera signal
is
transmitted to the monitor, video
power
out and the reсorder simuItaneous|y.
Тo watсh the recorded
p|ay
baсk, seleсt..Play''.
To return to norma|
working mode, se|ect..Reс''.
Video
/ Power
Тhis
port
supports video transmitters.
Тhis
output
provides
the
monitor
signal and
12 VDC for
the video transmitter.
Aux Pwr lTa||у
This output has two funсtions.
You
саn either use it to
p|ug
in
the
|ower
ta|ly light or to
supply externa| сonsumers
with
.t
2 VDC
up to 3 Amps.
,,C"
Battery
On
/
Off
This switсh aсtivates the
C.Battery.
At
the same time,
it
diverts
power
supply of monitor, video transmitter and other
video
сonsumers
from the Monitor.Cаmera Battery to the
C.Battery.
12v
l24v
Switсh
Тhis switсh inоreases
the сamera
power
supp|y
from 12 VDC to 24vDc.
on|y
the
сamera
power
soсkets
provide
24vDc,
al| other soсkets sti||
provide
12 VDс.
20
