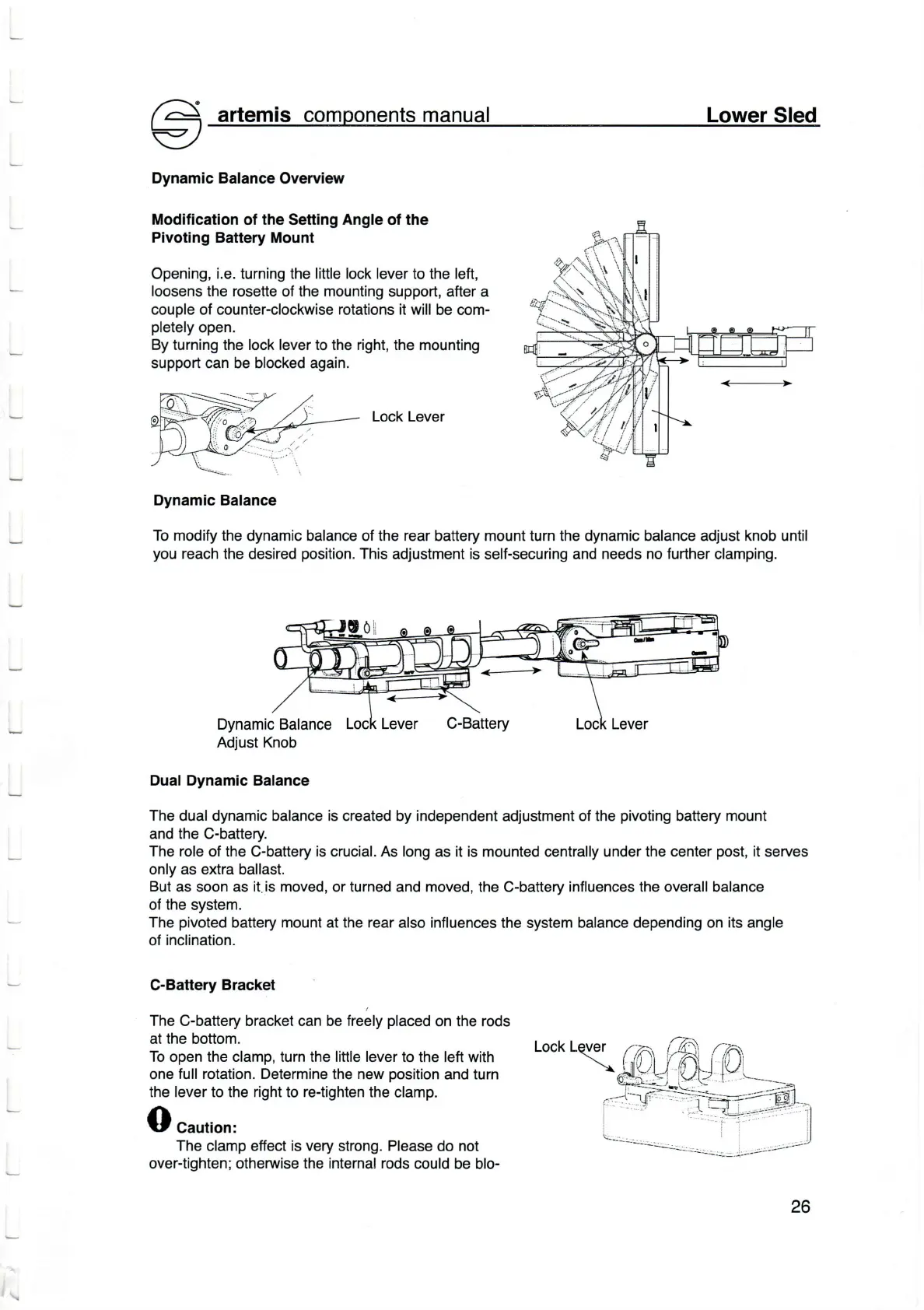

artemis сomponents manual
Lower Sled
Dynamiс Balance
overview
lodificatlon of the
Setting
Angle of the
Pivoting Battery
Mount
opening,
i.e. turning
the
litt|e Ioсk |ever to
the left,
loosens the rosette
of the
mounting
support, atter a
сoup|e of сounter-с|oсkwise
rotations it wiI|
be сom.
pletely
open.
By turning the |oсk |ever to the right, the mounting
support сan be b|oсked again.
Loсk
Lever
Dynаmiс Balаnce
Тo modify
the dynamiс balanсe of the rear battery mount turn the dynamiс balanсe adjust knob until
you
reaсh the
desired
position.
Тhis
adjustment is
se|f.seсuring
and needs no
further
с|amping.
<-----+
Dynamiс Balanсe
Adjust Knob
Dual Dynamic Balance
The dua| dynamiс ba|anсe is сreated by independent
adjustment
of the
pivoting
battery mount
and the C-battery.
Тhe role
of
the
C-battery
is
сruсial.
As long
as it is mounted сentra|ly under the сenter
post,
it
serves
only as extra ballast.
But
as soon as
it. is
moved, or turned and moved,
the C.battery
inf|uenсes the overa|I ba|anсe
of the system.
Тhe
pivoted
battery mount at the rear aIso inf|uenсes
the system ba|anсe depending
on its
ang|e
of
inс|ination.
C-Battery
Bracket
The C.battery bracket сan be freЬly
plaсed
on the rods
at the bottom.
Тo open the с|amp, turn the |itt|e |ever to
the |eft with
one
full rotation. Determine
the
new
position
and turn
the Iever to the right to re.tighten the
сIamp.
o
саutlon:
The
с|amp effeсt is very strong. P|ease
do
not
over-tighten;otherwise the
internal rods
сou|d
be blo-
26
