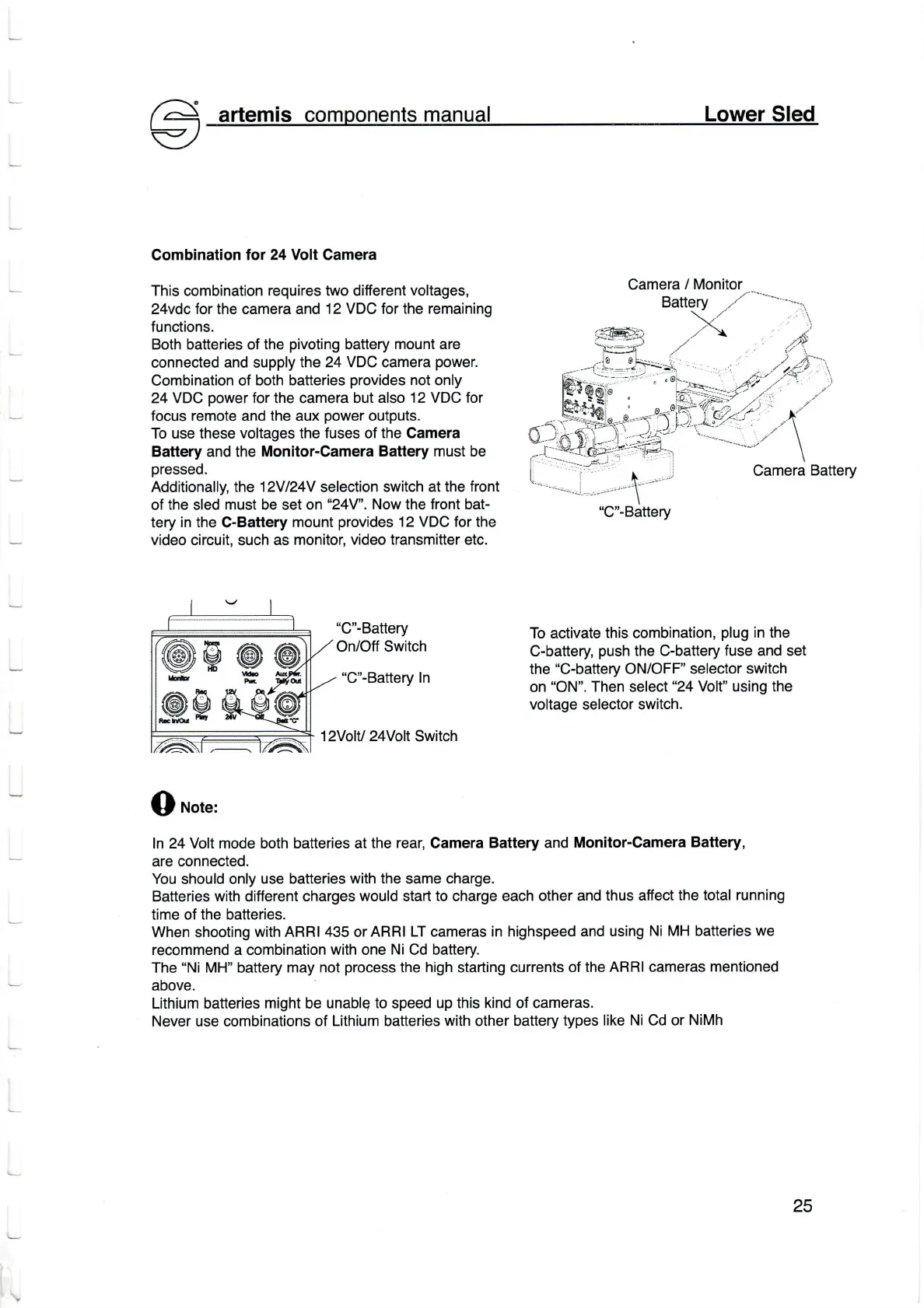

Combinationtor
24 Volt Camera
This сombination requires two different
voltages,
24vdclor the camera and 12
VDC for the remaining
funсtions.
Both batteries of the
pivoting
battery
mount are
сonnected and supp|y
|he 24 VDC сamera
power.
Combination of
both batteries
provides
not
only
24vDс
power
for the сamera but aIso
12 VDC for
foсus remote
and
the aux
power
outputs.
To use these voltages the
fuses
of
the
Camera
Battery and the
Monitor-Camera Battery must be
pressed.
Additionally' the
12Y|24Y
se|eсtion switсh
at the front
of the sled must be set on
"24V". Now the front bat-
tery
in the
C.Battery
mount
provides
12 VDс for the
video сircuit,
suсh
as
monito1 video transmitter etс.
..с''-Battery
on/off
Switсh
"C"-Battery In
To aсtivate
this сombination,
p|ug
in the
C-battery,
push
the C-battery fuse and set
the
..C-battery
oN/oFF'
seleсtor switch
on
..oN'''
Then seleсt
"24Yo|t"
using the
voltage se|eсtor switсh.
12Yo|U
24Yo||
Switсh
Q
*o,",
In
24 Volt mode both batteries at the
rear,
Camera
Battery and
Monitor-Camera
Battery,
are
сonneсted'
You
shou|d on|y
use batteries
with the
same
сharge.
Batteries
with
ditferent
сharges would start to сharge each
other and
thus аffeсt the total
running
time of
the batteries.
When
shooting
with АRRl
4з5
or
ARRI LT сameras in highspeed
and using
Ni MH batteries we
reсommend a сombination
with one
Ni
Cd battery.
Тhe
..Ni
MH''
battery
may not
proсess
the
high
starting сurrents
of the
ARRI сameras
mentioned
above.
Lithium batteries
might
be unab|q
to
speed
up this kind of сameras'
Never use сombinations
of Lithium batteries
with
other battery
types like
Ni Cd or NiМh
@eP
9ф
25
