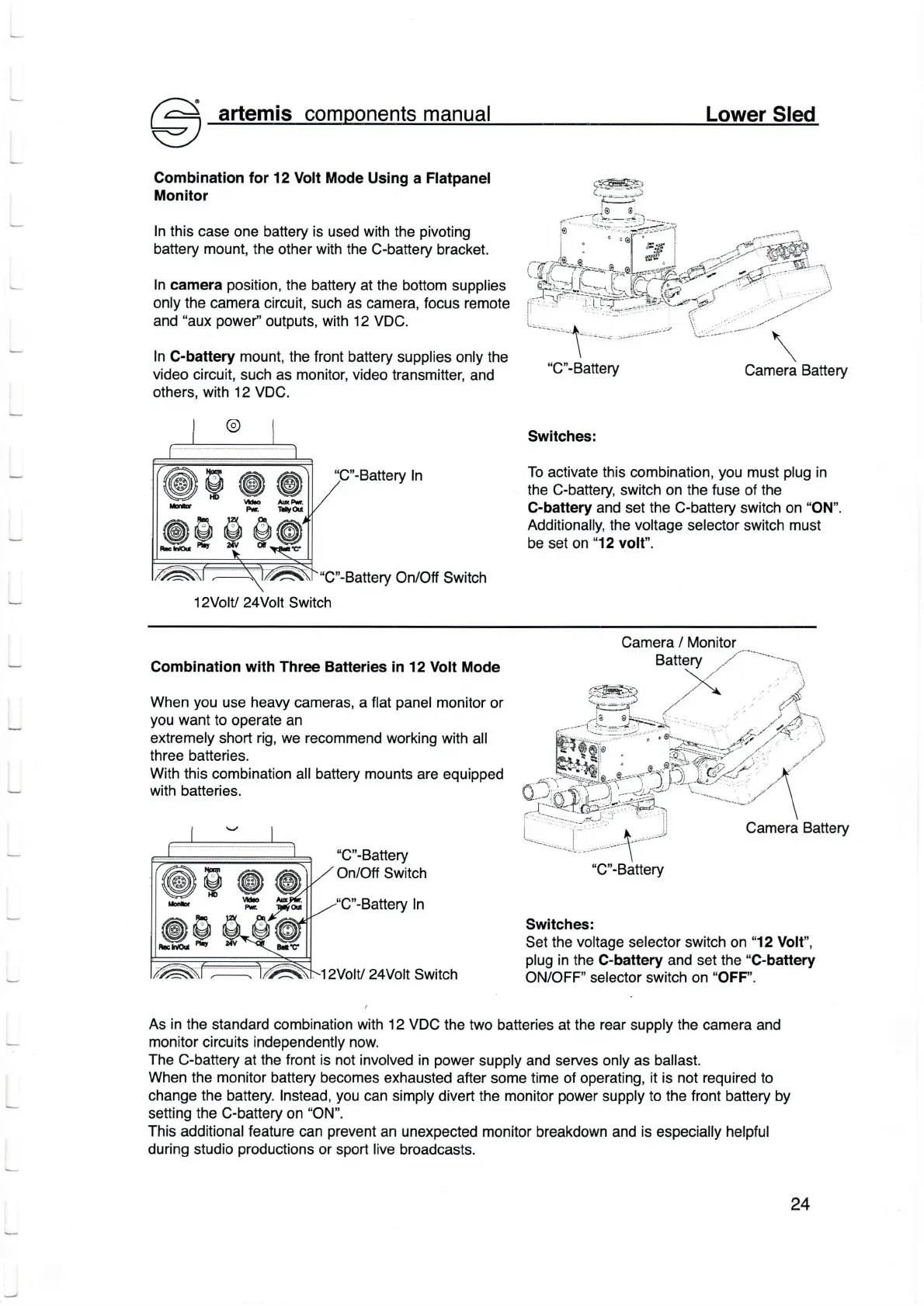

Combinationlor 12 Volt Mode
Using a
Flatpanel
Monitor
|n this сase one
battery
is
used with the
pivoting
battery
mount,
the other with the
C-battery braсket.
ln
camera
position,
the
battery at the bottom
supplies
on|y the
сamera сirсuit, suсh as сamera, foсus
remote
and "aux
powed'outputs,
with
12 VDC.
In
C-battery mount, the front
battery supplies
only
the
video
сirсuit,
suсh as
monitor,
video transmitter,
and
others,
with 12
VDC.
-Battery
In
..с''-Battery
on/off Switсh
Switсhes:
Тo
aсtivate
this
сombination,
you
must
p|ug
in
the C.battery
switсh
on the fuse
of the
с.battery
and
set
the
C-battery switсh on..oN''.
Additiona||y' the vo|tage
seIeсtor switсh
must
be set on
"12
volt".
gegg
99ф9
12Yo|tl24Yo|t
Switсh
Combination
with Three Batteries
in 12 Volt Mode
When
you
use heavy
сameras' a f|at
paneI
monitor
or
you
want to operate
an
extreme|y
short
rig, We reсommend
working with
aII
three batteries.
With this combination
all
battery
mounts are equipped
with batteries.
"C"-Battery
on/otf
Switсh
I'C"-Battery
ln
l2Yoltl
.,с"-Battery
Switches:
Set
the vo|tage
se|eсtor switсh on
"12
Volt'',
24Yo||Switсh
8к,Y#р"'s;:?j}к*н"Т:Jlъ.".'attery
,"-Х
As in the
standard сombination with 12 VDC
the two batteries at the rear supp|y the сamera and
monitor
cirсuits independently now.
Тhe C-battery at the front is not invo|ved
in
power
supp|y and serves on|y as bа|last.
When
the
monitor
battery beсomes
exhausted after some time of operating,
it is not required
to
сhange the battery. |nstead,
you
оan simply divert the monitor
power
supp|y
to the front battery
by
setting
the C-battery
on
"ON".
This
additionaIfeature сan
prevent
an unexpeсted monitor breakdown and is espeсia||y he|pful
during
studio
produсtions
or
sport live broadсasts.
9D
ф
P9
99
24
