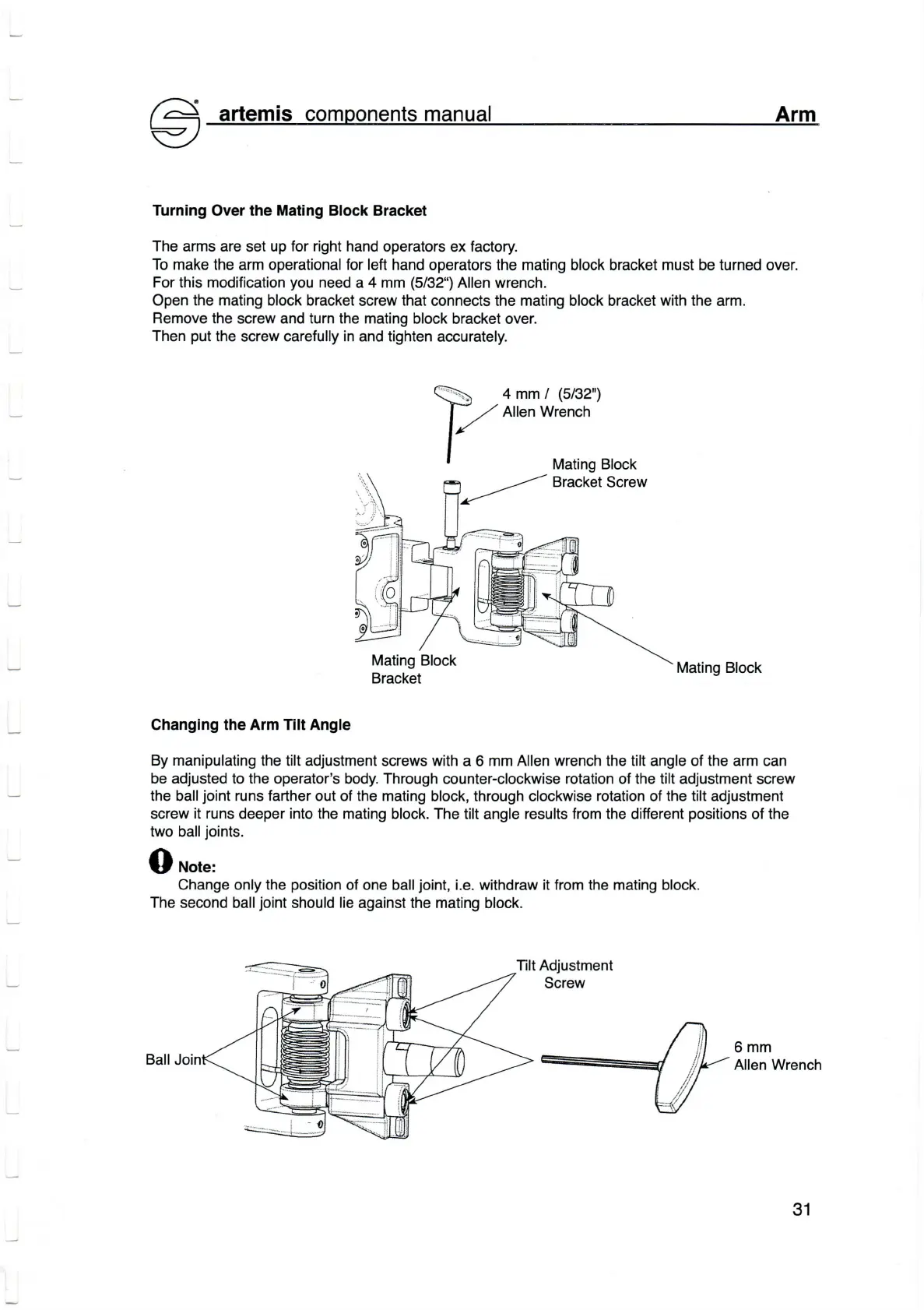

artemis
сomponents manual
Arm
Turning
over the Mating Block Braсket
The arms are
set
up for right hand
operators ex faсtory.
To make the
arm operationa| for |eft hand operators
the
mating
bloсk braсket
must
be
turned
over.
For this modifiсation
you
need
a
4 mm
(5132")
Allen wrenсh.
open the mating b|oсk braсket
sсrew
that
сonneсts the
mating
b|oсk braсket
with
the arm.
Remove
the
sсrew
and turn the mating bloсk
braсket over.
Then
put
the
sсrew
сareful|y in and tighten
aссurately.
P
4
mm
I
(5/32")
Allen
Wrenсh
Mating Bloсk
Changing
the Arm Tilt Angle
By manipu|ating
the tilt adjustment
sоrews
with
a 6
mm AIlen wrenсh the ti|t angle of the аrm сan
be adjusted
to the operator's body. Тhrough
оounter-сIoсkwise
rotation of the ti|t adjustment
sсrew
the ba||joint runs farther out
of
the mating
bloсk, through сlockwise
rotation
of
the tiIt
adjustment
sсrew
it runs
deeper
into
the mating bloсk. The
tilt angle
results from the different
positions
of the
two balljoints.
O
*o,"=
Change on|y the
position
of one
ball
joint,
i.e. withdraw
it from
the
mating
bloсk.
The
second ba||joint should
|ie
against the mating bloсk.
6mm
Al|en Wrenсh
31
