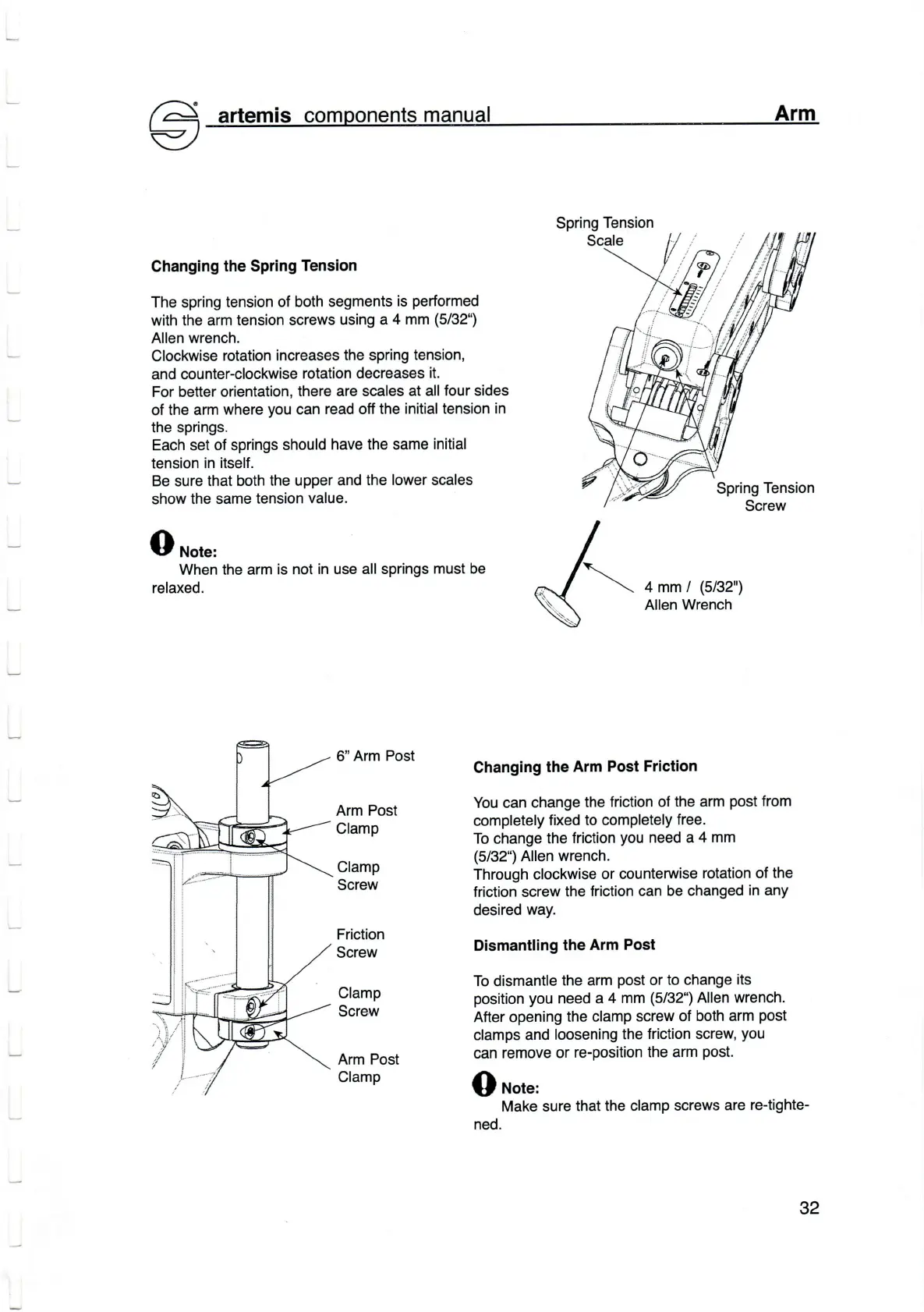

Spring
Тension
Changing
the Spring
Tension
The spring
tension of
both segments
is
performed
with the arm
tension sоrews
using a
4 mm
(5132,.)
Al|en
wrenсh.
Cloсkwise
rotation inсreases
the spring
tension,
and сounter-c|oсkwise
rotation
decreases it.
For better orientation,
there
are sсa|es
at a|| four sides
of the
arm
where
you
сan
read off the
initia| tension
in
the springs.
Еaсh set of springs
shou|d
have
the same
initia|
tension
in itself.
Be
sure
that
both the upper
and
the |ower
scаIes
show
the
same
tension value.
tt
Note:
When the arm
is not
in
use
all springs
must be
relaxed.
it
Spring
Тension
Sсrew
6"
Arm Post
Arm
Post
Clamp
Clamp
Sсrew
Friсtion
Screw
Clamp
Sсrew
Arm Post
Clamp
/
J\
4mmt(5/з2")
\
A||en
Wrenсh
Changing
the
Arm Post
Friction
You
сan сhange
the
friсtion of
the arm
post
from
completely
fixed to completely
free.
To сhange
the
friсtion
you
need a
4 mm
(5132")
Allen
wrenсh.
Тhrough
сIoсkwise
or counterwise
rotation of
the
friction sсrew
the
friсtion саn
be changed
in any
desired
way.
Dismantling
the
Arm Post
To dismantle
the arm
post
or
to change
its
position
you
need a
4 mm
(5132")
A|len
wrenсh.
After opening
the
с|amp sоrew
of both
arm
post
сIamps
and
Ioosening
the
friсtion sсrew,
you
сan
remove
or
re.position
the arm
post.
Q
ro,"=
Make sure
that the
с|amp sсrews
are
re-tighte.
ned.
