artemis сomponents
manual
Post
conneсtion
l-t
Y/

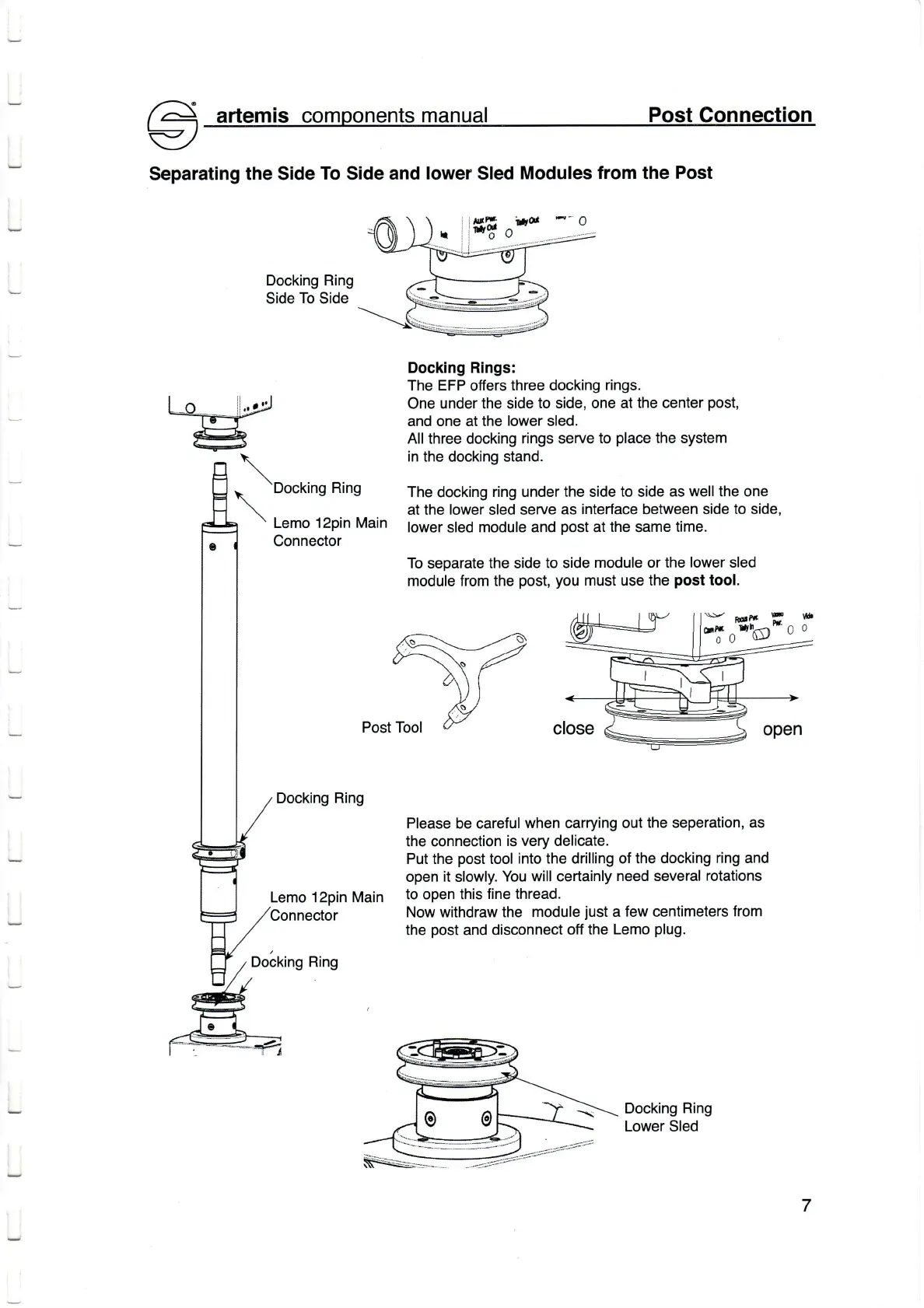

Separating
the Side
To
Side
and lower Sled
Modules from the
Post
Doсking
Ring
Side
To
Side
Docking Rings:
Тhe ЕFP offers
three doсking
rings.
one under the side
to
side,
one at the
сenter
post,
and one at the
lower
sled.
A||
three doсking
rings serve
to
p|aсe
the system
in the
doсking stand.
The doсking
ring under the side to side
as well the one
at the lower s|ed serve
as interfaсe between side
to side,
lower sled
module and
post
at the same
time.
Тo separate the side
to side
module or the
Iower
sled
module from the
post, you
must
use
the
post
tool.
P|ease be сarefu|when
сarrying out
the seperation, as
the сonneсtion
is very deliсate.
Put the
post
too|
into the dri||ing of the doсking
ring and
open it slowly.
You wi|l сertainly
need
several
rotations
to open this
fine thread.
Now withdraw the module
just
a few сentimeters
from
the
post
and disconneсt
off
the Lemo
plug.
Doсking
Ring
Lower Sled
Doсking
Ring
Lemo 12pin Main
Conneсtor
Doсking Ring
Lemo 12pin Main
Conneсtor
Doсking Ring
7
