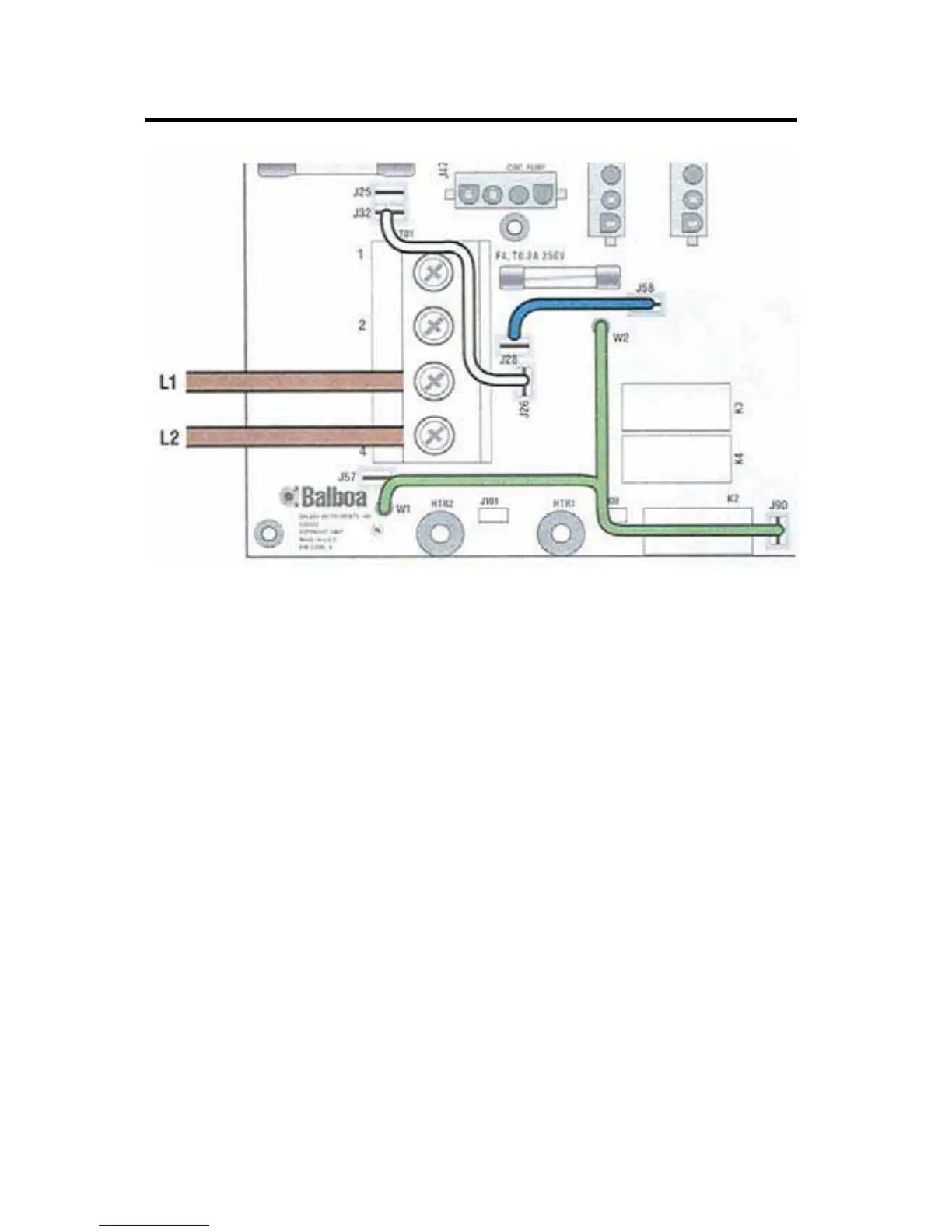

Single Service, IT Electrical System (No Neutral)
Line - Line voltage is 230VAC (1 X 16 Amp or 1 X 32 Amp)
3 Wires (2 Lines + 1 Protective Earth)
Protective Earth wire (Green / Yellow) must be connected to system ground
terminal as marked.
All equipment (pumps, blower and heater) runs on service line L1 with L2
acting as the return.
43
50 Hz Electrical Service Configuration Options
