9
WARNING
ENSURE THAT THE GAS
SUPPLY HOSE DOES
NOT COME IN CONTACT
WITH THE GRILL BODY
The LP gas cylinder must be constructed and marked in accordance with the specifications for LP gas
cylinders of the U.S. Department of Transportation (DOT). The cylinder must be provided with a shut off
valve terminating in an LP gas supply cylinder valve outlet specified, as applicable, for connection type
QCC1 in the standard for compressed gas cylinder valve outlet and inlet connections ANSI/CGA-V-I.
LP GAS CONNECTION TO LP TANKS:
Your ARTISAN™ Grill for use with LP gas is supplied with a high capacity, hose/regulator assembly for
connection to a standard 20 Lb. LP cylinder. The LP gas pressure regulator and hose supplied with this
unit must be used without alteration.
To connect the regulator / hose assembly follow the next steps:

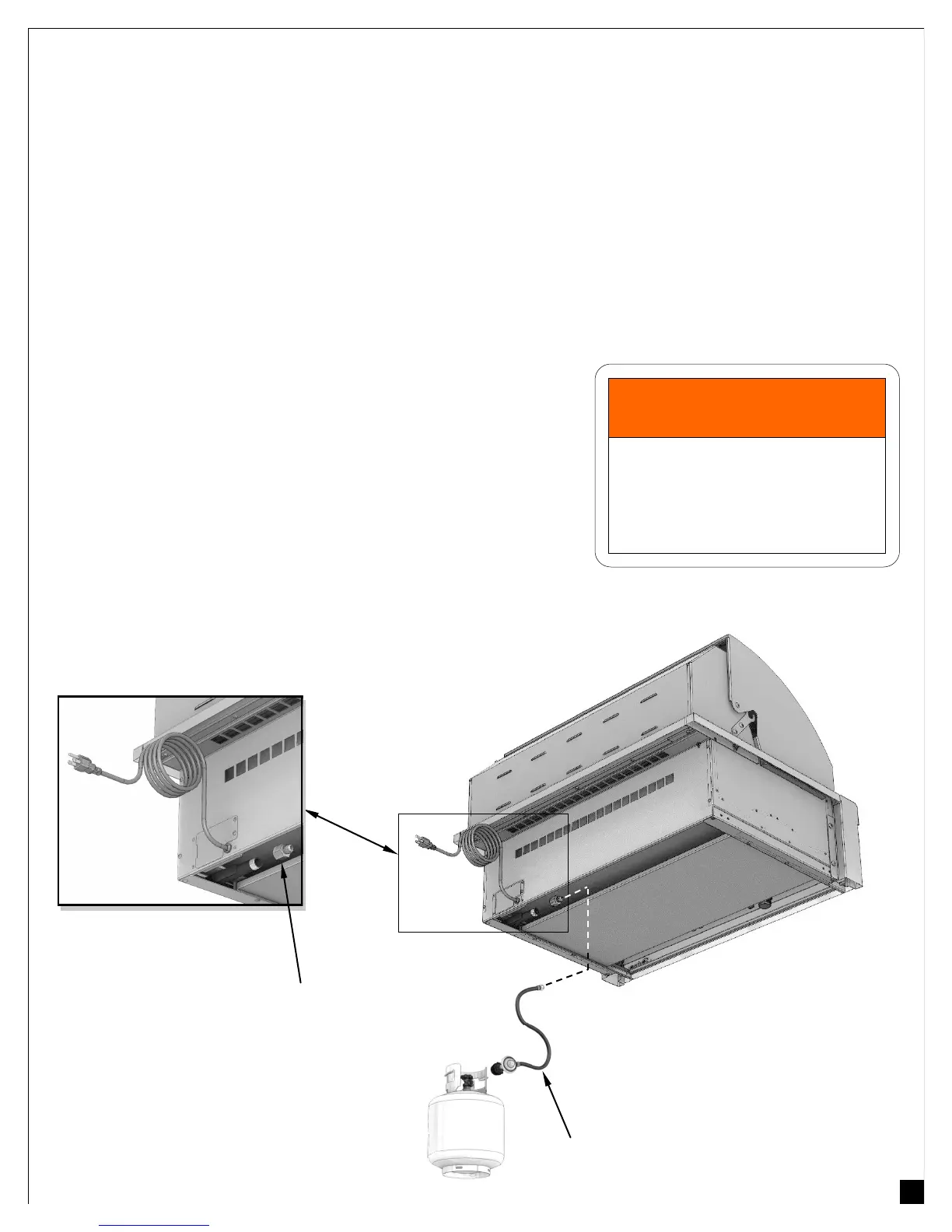

1. Locate the gas connection under the rear right side of
your BBQ unit.
2. Fasten the hose connection to a 1/2” MPT x 3/8” COMP
(compression flare fitting) connected to the elbow.
(see figure # 2).
1/2” FPT X 3/8” FLARE
BRASS FITTING
TYPICAL ARTISAN™ BBQ
Figure # 2
TYPICAL LP
GAS TANK
LP REGULATOR AND HOSE
ASSEMBLY (PRESET TO 10” WC)
