4

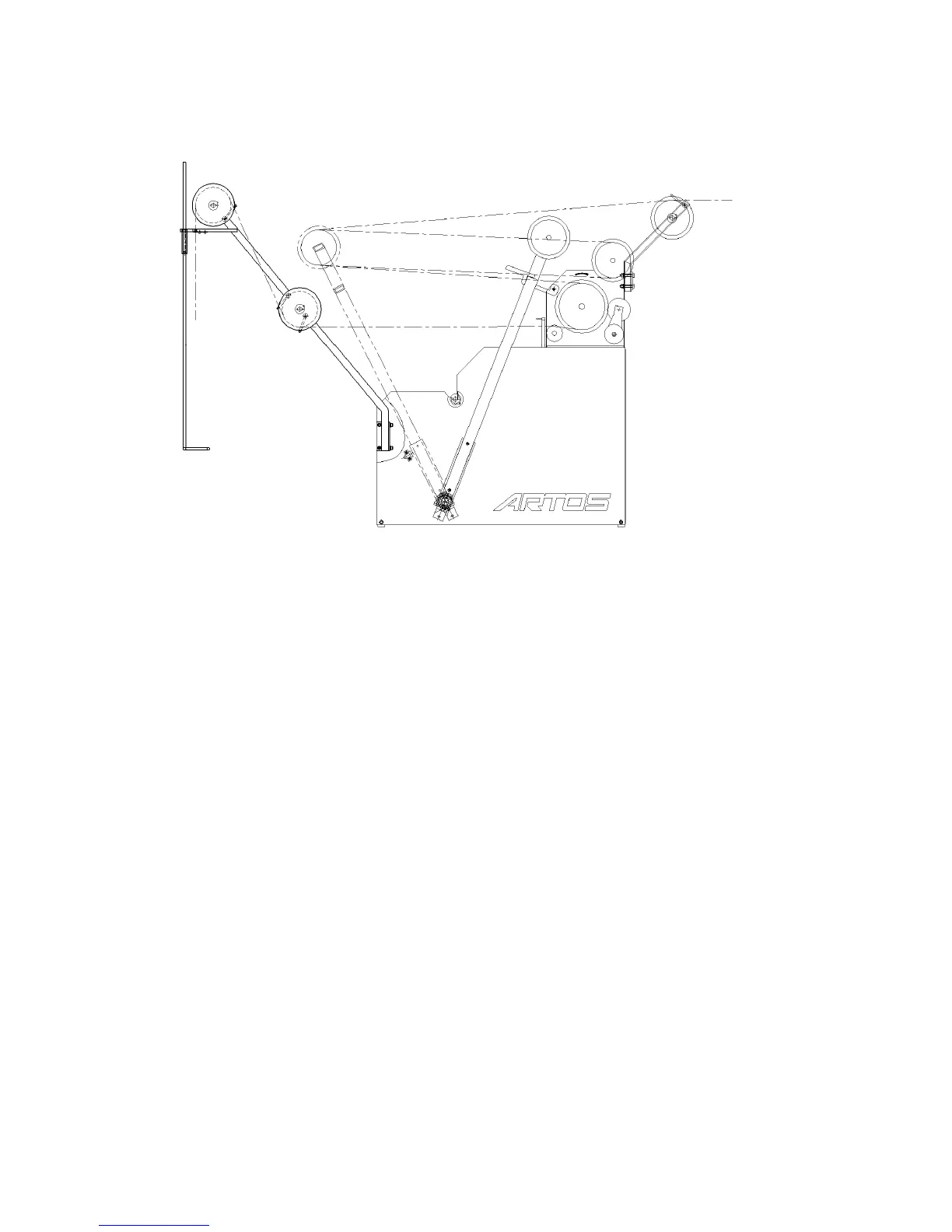

PF-6 with wire coil / loose bundle kit.
Barrelstandorwirecoil/loosebundlekit.
ElectricalSpecifications
110±10% VAC 60 hz 6 Amps
220±10% VAC 50/60hz 3 Amps
WireDiameter
Standard plastic pulley option.
Wire diameter up to approximately 0.38 inches (9.6mm)
Large aluminum pulley option
Wire diameter up to approximately 0.50 inches (12.7mm)
PayoutRate
Adjustable up to 4M/Sec (820Ft./Min)
Mechanical
Standard PF-6
Height 53” (1340mm)
Length 46” (1170mm)
Depth 21” (533mm)
