Artusi ABBQ1B - Page 34

34
Rev.13052022
700
135
240
660
25
105

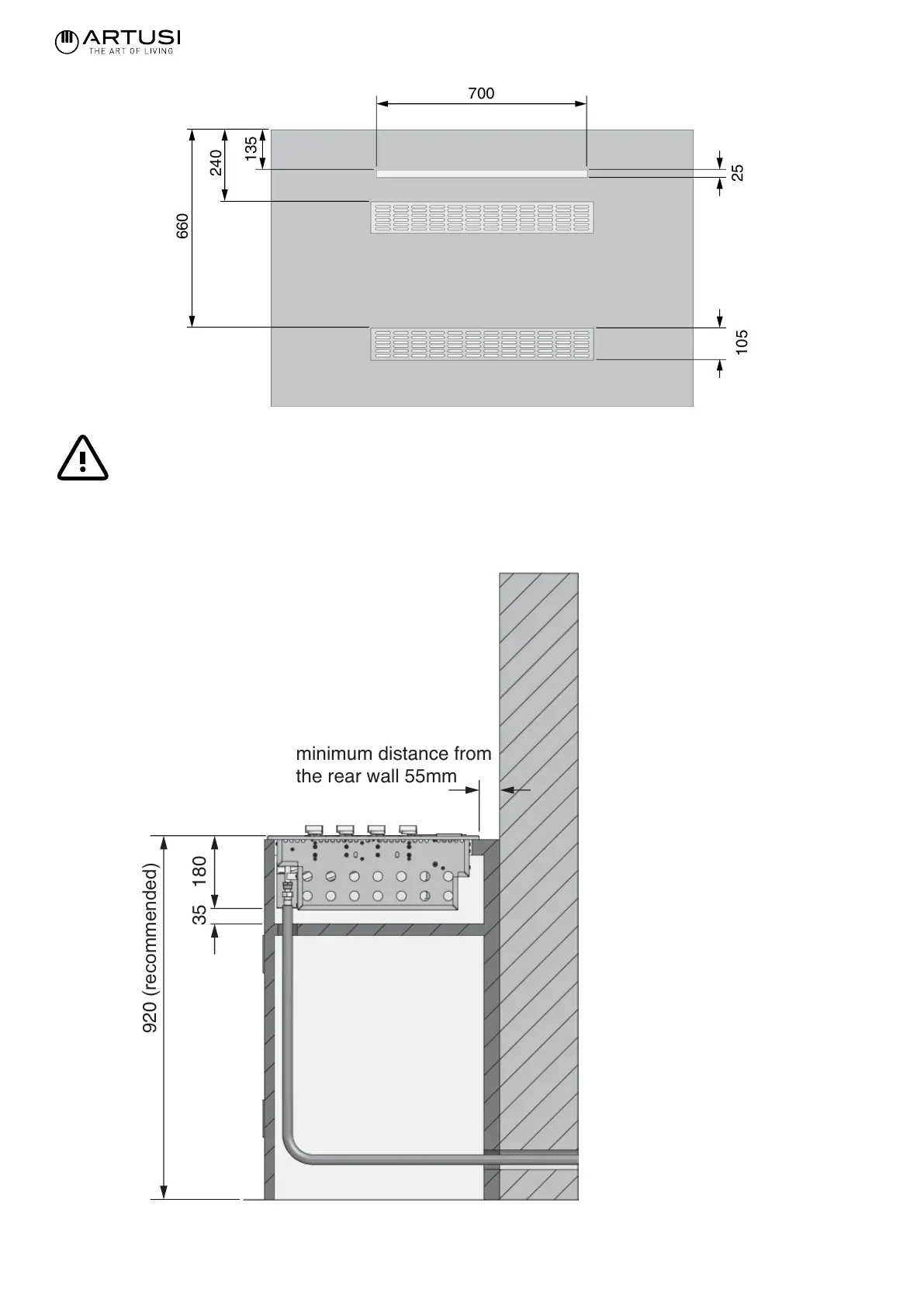

Island-mounted
ATTENTION
The compartment below the barbecue unit must be isolated from the barbecue by a non-combustible panel. The
compartment must comply with the requirements of AS/NZS 5601.
minimum distance from
the rear wall 55mm
Min 20 mm
53081
920 (recommended)
.
FOR INDOOR OR OUTDOOR
INSTALLATION
