ASA eSPEED B25.14/ B45.14 Instructions
For e-bikes with a Bosch drive unit
www.asa-autotechnik.de Page 8/ 18

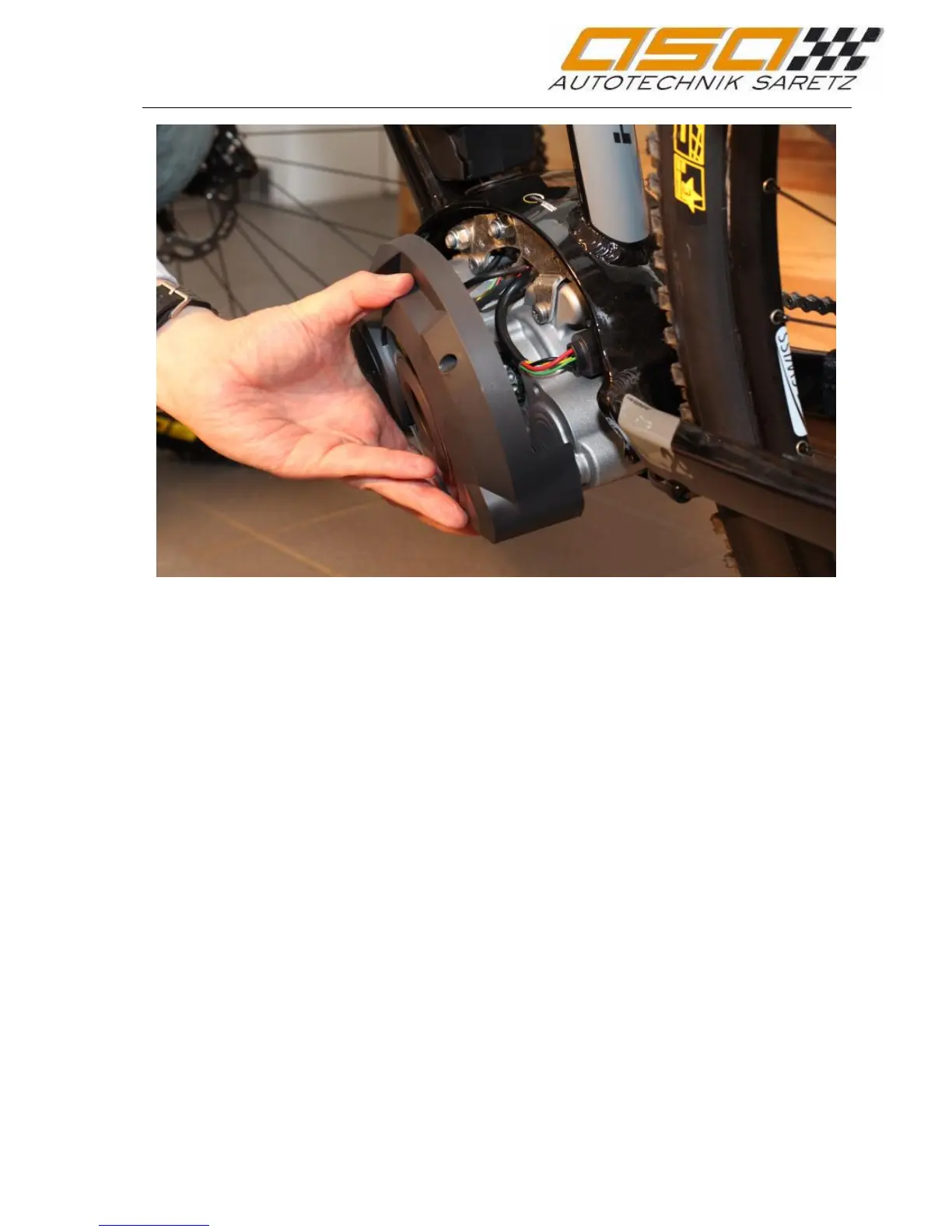

The motor protection can be simply pulled off, providing access to the electrical
connections.
6. Connecting the ASA tuning module
The ASA eSPEED B25/45 module has 4 connections which are to be used like adapters
and which are looped into the existing cabling. Bosch currently uses plugs that are only
available on the market in female form. For the male form, we also use a female connector
which has been assigned with contact wires. These contact wires are used for the
mechanical connection, and heat shrink tubing is used as protection and locking
mechanism. The female connector with the contact wires is to be twisted by 180 degrees
and inserted into the original female connector of your bicycle. The connections are used
according to the following model:
