ASA eSPEED B25.14/ B45.14 Instructions
For e-bikes with a Bosch drive unit
www.asa-autotechnik.de Page 12/ 18
Now insert the 2-pin plug from the ASA module into the connection of the speed sensor at
the motor and the 4-pin plug into the HMI connection. Use cable binder to fasten the ASA
eSPEED tuning module in the motor.

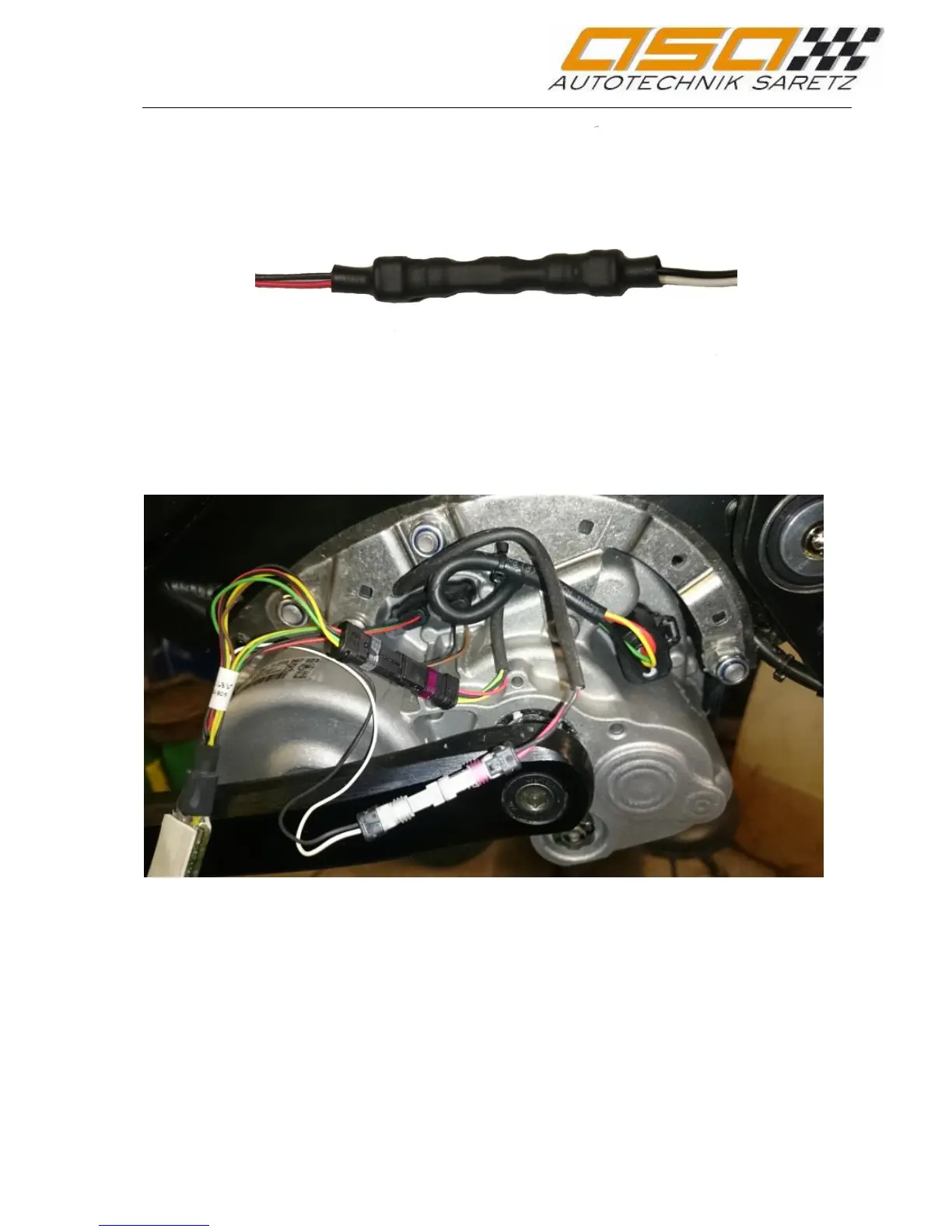

The picture shows the complete connection, for illustrative purposes with the heat shrink
tubing.
