5.1.1.2 Removing the right panel

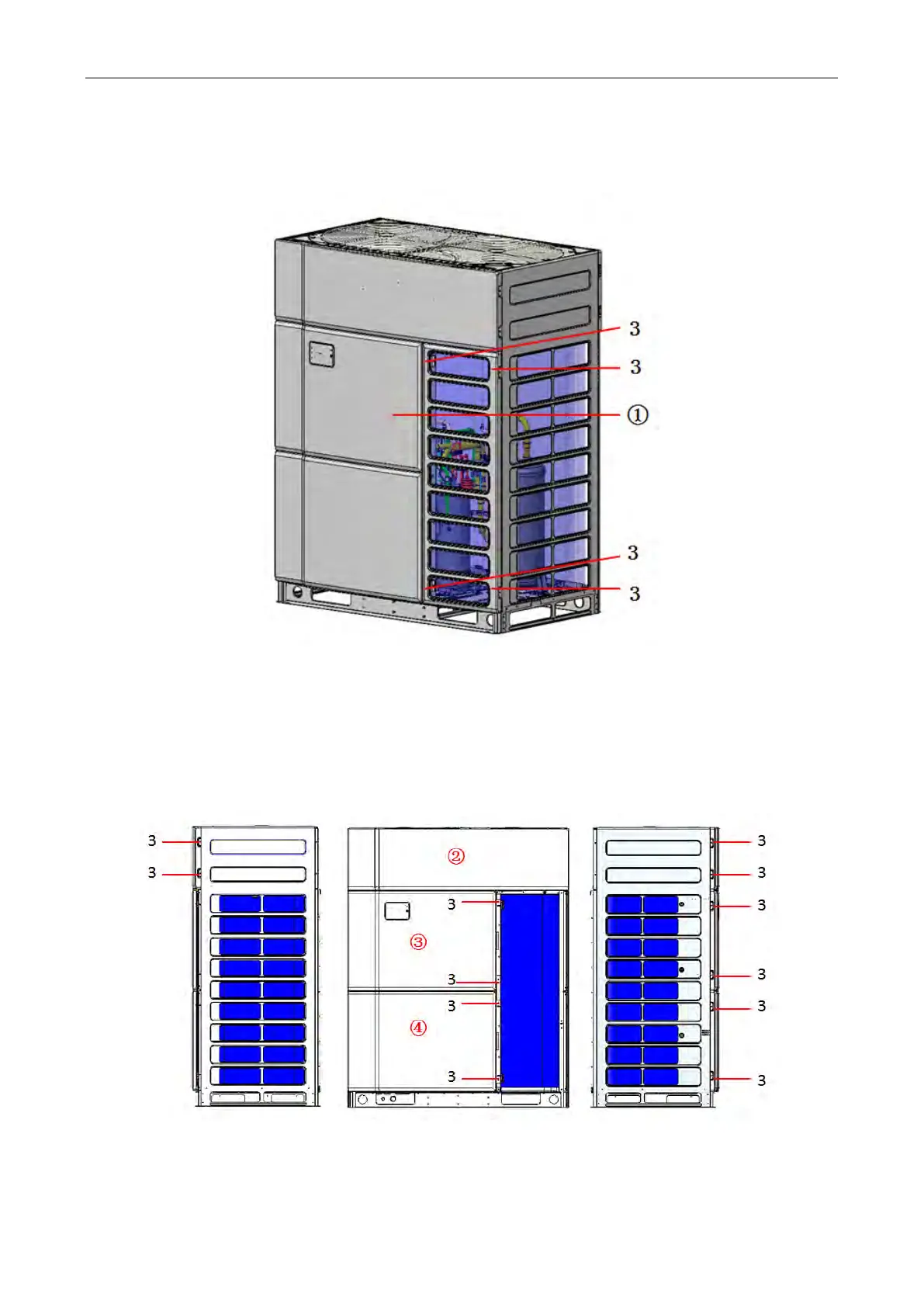

(1) Use a screwdriver to remove the screw marked by 1 on ① right panel
(2) Remove ① right panel from the unit
3 – Screw ① - Right panel
5.1.1.3 Removing the upper left panel, bottom left panel and upper covering plate
(1) Use a screwdriver to remove the screws marked by ②, ③ and ④ in the figure.
(2) Remove ② upper covering plate, ③ upper left panel and ④ bottom left panel
3 - Screw; ② - Upper covering plate; ③ - Upper left panel; ④ - Bottom left panel.
